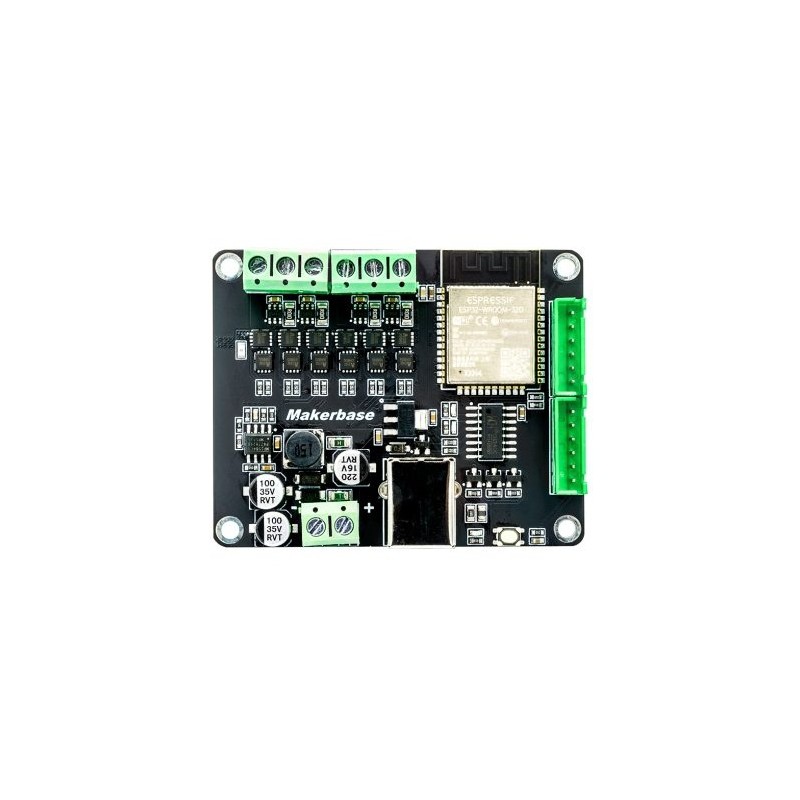

Makerbase MKS ESP32 FOC - dual-channel BLDC brushless motor controller 12-24V, 6A
ID: 1187439
zł129.97
Tax included
zł105.67 tax excl.
A BLDC motor control board with a Field-Oriented Control algorithm, based on the ESP32 WROOM 32D module. It supports 12-24V DC, two channels with a peak current of 12A, and dual-channel real-time current sensing with a range of ±33A. Support for Hall, SPI, I²C, ABI, and analog sensors provides flexible integration in projects such as robotics, balancing vehicles, and gimbals. Makerbase MKS ESP32 FOC V1.0
Description
Makerbase MKS ESP32 FOC is a versatile and cost-effective control board designed for driving brushless motors using FOC (Field-Oriented Control) technology. The module is based on the ESP32 WROOM 32D, providing high operational stability and rich communication capabilities. With support for multiple sensor interfaces, including Hall, SPI, I²C, ABI, and Analog, the board offers flexible use in a wide range of projects and configurations. The integrated dual-channel real-time current detection system enables precise motor control, resulting in smooth motion and high energy efficiency.
The device operates with a supply voltage from 12 V to 24 V DC and supports two channels with a maximum peak current of 12 A. Thanks to the use of a 10 mΩ shunt resistor, it ensures accurate current readings up to ±33 A. The compact dimensions of the board make it easy to integrate even in limited project spaces. Makerbase ESP32 FOC is perfectly suited for applications such as robotics (e.g., quadruped robots), self-balancing vehicles, gimbals, or education in modern motor control methods. It is a complete solution for electronics enthusiasts, hobbyists, and professionals seeking a reliable BLDC motor controller based on FOC.
Features
- Processor: ESP32 WROOM 32D
- Supply voltage: 12–24 V DC
- Number of channels: 2
- Peak current: 12 A
- Shunt resistor: 10 mΩ
- Current detection range: ±33 A
- Sensor interfaces: Hall, Magnetic Encoder (SPI/I²C/ABI/Analog)
- Dual-channel real-time current detection
- Dimensions: 54.6 × 68.3 mm
Kit contains
- MKS ESP32 FOC V1.0 board
- 2 × 6-pin 15 cm XH2.54 to PH2.0 cables
- 50 cm USB Type-B cable
1187439
Data sheet
- Output current
- 12 A
- Number of channels
- 2
- Supply voltage min
- 12 V
- Supply voltages max
- 24 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The TLE5012B precision magnetic encoder with sensor offers angle measurement in the 0–360° range with a resolution of 4096 CPR. Its compact design and low current consumption of 14 mA make it ideal for projects requiring energy efficiency and reliability. It is compatible with motor control systems such as ODrive, as well as robotics and industrial applications. Makerbase MKS TLE5012B
zł70.44
24h
Available quantity: 3
Available
An advanced speed controller designed to power three-phase brushless motors in various applications, such as driving robots, walking robots or gimbals. Supports input voltage range from 12V to 56V. Maximum constant current is 60A. Makerbase ODrive-S
zł284.79
Delivery date unknown
No product available!
The ODrive3.6 ESC speed controller is designed to power two three-phase brushless motors in various applications, such as driving robots, walking robots or gimbals. Supports input voltage range from 12 V to 56 V and maximum current up to 60 A. Makerbase ODrive3.6
zł414.52
24h
Available quantity: 1
Available
Set with ODrive3.6 ESC speed controller and MKS X2212 BLDC motor. The controller is designed to power two three-phase brushless motors in various applications, such as driving robots, walking robots or gimbals. Supports input voltage range from 12 V to 56 V and maximum current up to 60 A. Makerbase ODrive3.6 Kit
zł637.28
24h
Available quantity: 2
Available

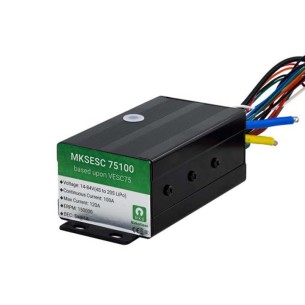

A speed controller based on the open VESC standard, designed for electric skateboards, scooters, and e-bikes. It supports voltages from 14 to 75 V and continuous currents up to 100 A, offering various BLDC motor control modes, and a wide range of interfaces (PPM, UART, I2C, USB-C, CAN). Its compact design and extensive security features ensure reliability, flexible configuration, and convenient integration with computers and smartphones. Makerbase VESC 75100
zł534.58
24h
Available quantity: 1
Available

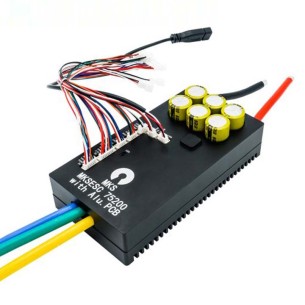

This speed controller is designed for high voltage and high current applications, ideal for electric vehicles, e-foils, and robotics. It supports voltages up to 84 V and continuous currents up to 200 A. Its ARM Cortex-M4 STM32F405RG processor ensures precise control and fast signal processing. It supports various control modes, works with BLDC and DC motors in both sensored and sensorless versions, and is configured via USB or Bluetooth using the VESC Tool. Makerbase VESC 75200 V2
