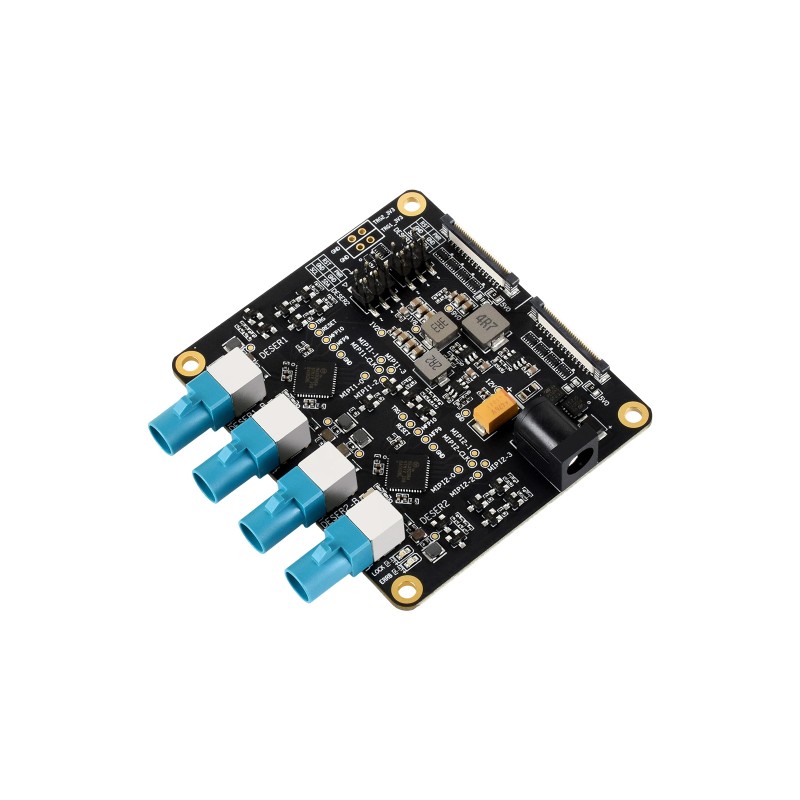

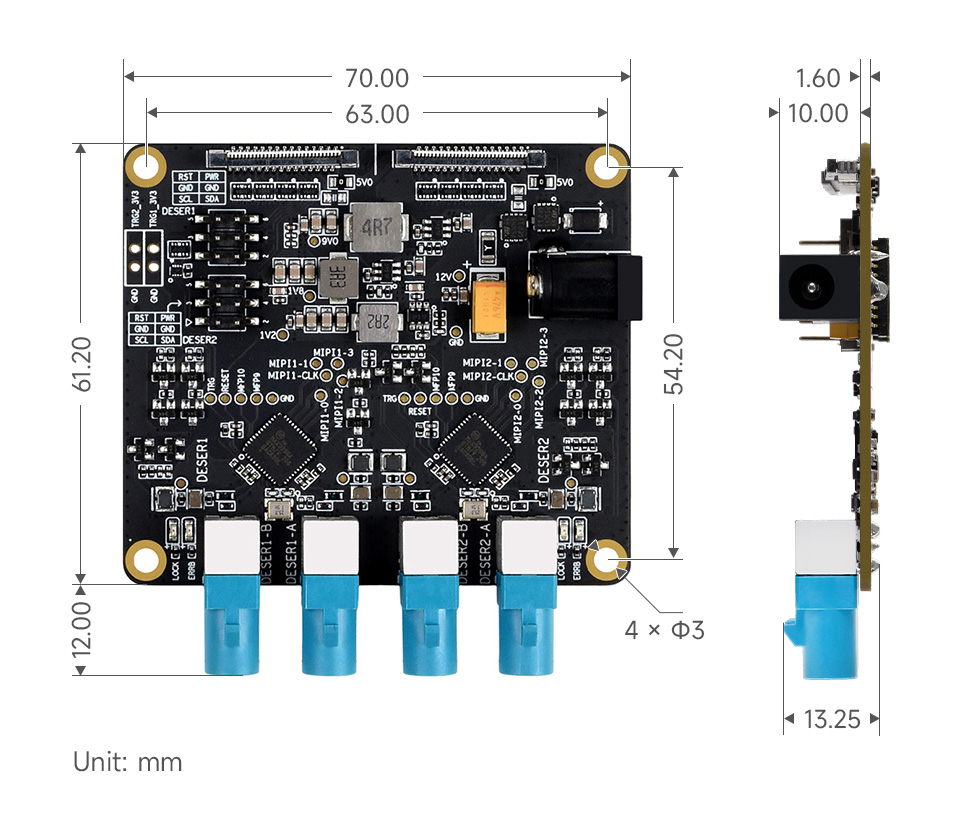

Adapter board enabling connection of up to 4 GMSL cameras (GMSL1/GMSL2) to Raspberry Pi 5. Equipped with MAX9296 deserializer, providing high-bandwidth and low-latency video transmission. Includes 12 V EU power supply. Waveshare GMSL-Module-Board-4CH-A (EU)

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

GMSL adapter designed for Raspberry Pi 5, allowing simultaneous connection of up to four cameras using the GMSL interface. The MAX9296 chip performs deserialization of signals transmitted over coaxial cables, ensuring stable long-distance data transmission with low latency.

The design supports both GMSL1 and GMSL2 standards, enabling compatibility with various camera modules using serializers such as MAX9295, MAX96717, and MAX96705. Video data is transmitted to Raspberry Pi 5 via two MIPI CSI (22-pin) interfaces, allowing handling of high-resolution and multi-stream video input.

                                                     Autonomous driving                                                                             Car surround view (360° system)

                               p1205083-GMSL-Module-Board-4CH-A-details-5-1.jpg                                         p1205083-GMSL-Module-Board-4CH-A-details-5-2.jpg

The board supports configurations of up to 2 cameras with 8 MP resolution (3840 × 2160) or 4 cameras with 3 MP resolution (1920 × 1536). GPIO-based camera synchronization enables use in multi-camera systems requiring precise frame alignment.

Applications include machine vision, mobile robotics, autonomous systems, surveillance, and smart city solutions, where long-distance, high-quality video transmission is required.

Features

  • Deserializer: MAX9296
  • Supported standards: GMSL1, GMSL2
  • Channels: 4
  • Inputs: 4 × GMSL (Fakra Z)
  • Outputs: 2 × MIPI CSI (22-pin)
  • Camera support: up to 2 × 8 MP or 4 × 3 MP
  • Supported serializers: MAX9295, MAX96717, MAX96705
  • Camera synchronization: via GPIO
  • Compatibility: Raspberry Pi 5
  • Power supply: 12 V / 1 A (5.5 × 2.1 mm jack)
  • Operating temperature: -20°C ~ 65°C
  • Weight: 0.178 kg

Kit includes

  • GMSL-Module-Board-4CH-A adapter
  • 22-pin FPC cable ×2
  • 12 V power supply (EU plug)
