IMX415 8 MP camera module with IR-CUT filter and 98° FOV - Waveshare 28524
ID: 1197432
zł99.25
Tax included
zł80.69 tax excl.

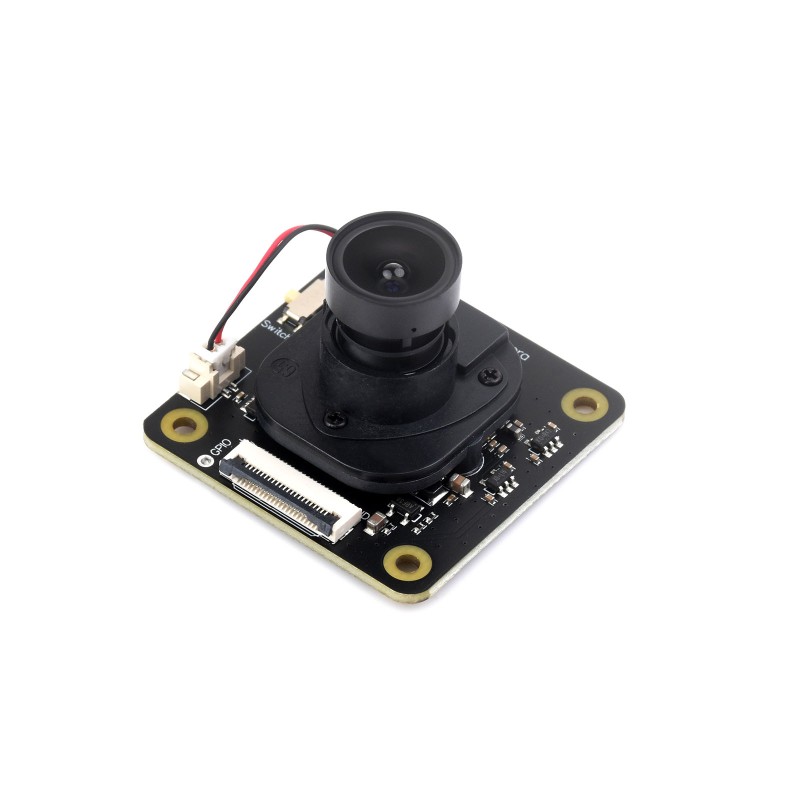

IMX415-98 IR-CUT camera module offers high-quality 4K UHD image with a wide field of view, while maintaining low distortion and good performance in low-light conditions. Its compact design and support for the CSI interface make it suitable for advanced AI projects, intelligent surveillance, and image recognition.
Description
IMX415 camera module with 8 MP resolution and a 98° wide-angle lens, equipped with a 1/2.8” CMOS sensor and IR-CUT filter, provides high image quality in low-light conditions and low optical distortion (<1%). Thanks to a high signal-to-noise ratio (SNR) and a fast F2.0 aperture, the camera is suitable for AI applications requiring detailed imaging, such as face recognition, license plate detection, or traffic sign identification. The set includes a 22-pin FPC ribbon cable for integration with compatible boards via the CSI interface.
Features
- Sensor: IMX415, 1/2.8” CMOS
- Resolution: 3840 × 2160 (8.29 MP)
- Lens: 3.95 mm, aperture F2.0
- Field of View (FOV): 98°
- Pixel size: 1.45 μm × 1.45 μm
- Optical distortion: <1%
- High signal-to-noise ratio (SNR)
- Excellent low-light performance
- IR-CUT filter applied
- Applications: AI systems, image recognition, surveillance, ITS systems
Included
- IMX415-98 IR-CUT Camera x1
- FPC 22PIN ribbon cable x1
1197432
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI CSI
- Sensor
- IMX415
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
A compact USB camera with a Sony IMX298 sensor, offering high-resolution 16MP, autofocus, and smooth 4K video recording with audio. UVC compatibility means it works without installing drivers on Windows, Linux, macOS, and Android, with image parameter adjustments available directly from within the system. Its robust metal housing and energy efficiency make it an ideal choice for monitoring, 3D printing, machine vision, and DIY projects. ArduCAM B029001
zł262.43
4 weeks
No product available!
Camera module for Raspberry Pi minicomputers with IR-CUT filter. Equipped with an OV5647 (5 MPx) sensor, it supports image acquisition both during the day and at night. Waveshare 15203
zł105.71
24h
Available quantity: 2
Available
IMX219-120-4Lane 8MP camera module for Raspberry Pi 5, offering a 3280×2464 pixel image resolution and a 120° wide viewing angle. With its MIPI-CSI-4Lane interface and compact design, it is ideal for monitoring, robotics and machine vision systems. DFRobot SEN0631
zł145.42
24h
Available quantity: 2
Available
Camera for Raspberry Pi Compute Module and NVIDIA Jetson Nano. It was equipped with a Sony IMX477 sensor with a resolution of 12.3 MPx and a built-in IR filter. Waveshare IMX477-160 12.3MP Camera
zł324.79
24h
Available quantity: 2
Available
2 MPx camera module with OV2311 sensor working with NVIDIA Jetson Nano. Equipped with a shutter and M12 lens mount. Acrylic housing included. ArduCAM B0221
zł523.50
24h
Available quantity: 1
Available
Set with HQ camera, HDMI adapter, 6 mm wide-angle lens and tripod. It works with all versions of Raspberry Pi with a CSI socket. ArduCAM B0241
zł736.49
4 weeks
No product available!
A set with a camera with a resolution of 1 MPx with an OV9281 sensor, a USB 2.0 adapter and a cable. ArduCAM EK025
zł729.07
24h
Available quantity: 1
Available
Camera for Raspberry Pi CM3, CM3+ and NVIDIA Jetson Nano. It was equipped with a Sony IMX477R sensor with a resolution of 12.3MPx and a built-in IR filter. Waveshare IMX477 12.3MP Camera
zł302.64
4 weeks
No product available!
Camera module with OV9782 sensor designed for DepthAI systems, including the DM1090FFC base plate. ArduCAM B0335
zł334.74
24h
Available quantity: 1
Available
2 MPx camera with USB 2.0 interface. Equipped with an AR0230 CMOS sensor with a 95° viewing angle lens. ArduCAM B0438
zł333.99
24h
Available quantity: 4
Available
2 MPx camera with USB 2.0 interface. Equipped with an AR0230 CMOS sensor with a 95° viewing angle lens and a metal housing. ArduCAM B0438C
zł354.40
24h
Available quantity: 2
Available

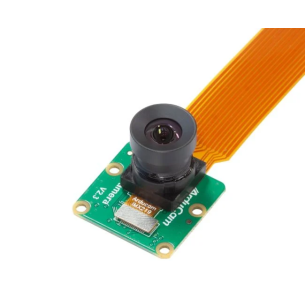

High quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It\'s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60, and 640x480p90 video
