- New

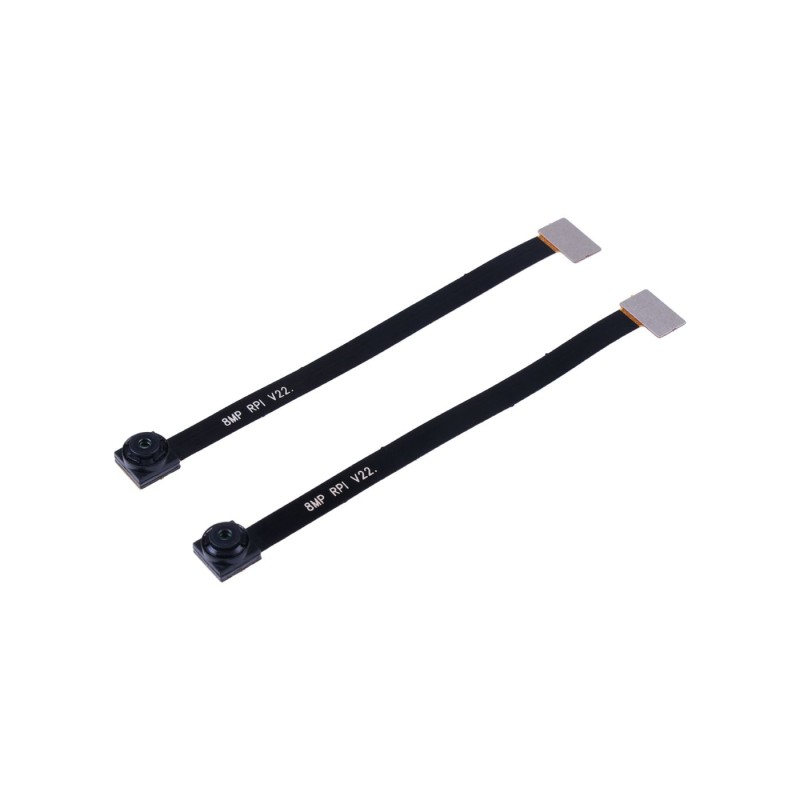

IMX219-77 Camera Module – 8 MP, 77° FOV, for Raspberry Pi Camera V2 - Seeed Studio 114992267
ID: 1200462
zł53.07
Tax included
zł43.15 tax excl.
The IMX219-77 camera module with a 77.6° field of view extends the capabilities of the Raspberry Pi Camera V2, offering a wider field of view and high 8 MP image quality. Designed for educational, hobby, and analytical projects based on the Raspberry Pi platform.
Description
The IMX219-77 module is a replacement for the standard lens of the Raspberry Pi Camera Module V2, equipped with a Sony IMX219 image sensor with 8 MP resolution and a 77.6° field of view, providing a wider field of observation than the standard version (62.2°). It is dedicated to Raspberry Pi projects that require greater frame coverage while maintaining high image quality.
With a 2.96 mm focal length lens and low distortion (<1%), the module is suitable for vision, monitoring, educational, and hobby applications. It supports still image resolution of 3280 × 2464 and video recording in 1080p30, 720p60, and 480p90 modes.
Properties
- Compatibility: Raspberry Pi Camera Module V2
- Sensor: Sony IMX219
- Resolution: 8 MP (3280 × 2464)
- Sensor format: 1/4 inch
- Aperture: f/2.0
- Focal length: 2.96 mm
- Field of view (FOV): 77.6°
- Distortion: <1%
- EFL: 2.93 mm
- Focus range: from 20 cm to ∞
- Lens size: 6.5 × 6.5 mm
- Video support: 1080p30, 720p60, 480p90
1200462
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI
- Sensor
- IMX219
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
