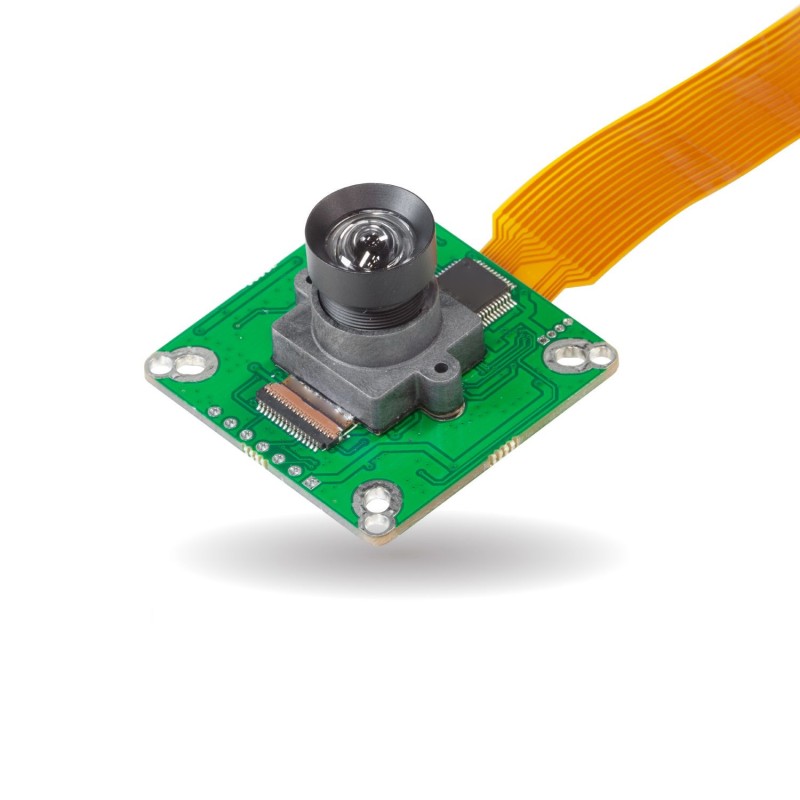

ArduCAM 2.3MP AR0234 Global Shutter - 2.3MP AR0234 camera module for Nvidia Jetson Nano/NX
ID: 1183283
5906623404674
zł481.67
Tax included
zł391.60 tax excl.
AR0234 sensor module that works with NVIDIA Jetson Nano and Xavier NX kits. The sensor used has a 2.3 MP sensor and allows video recording at 1920×1200@30fps. It is equipped with a global shutter. ArduCAM B0429
Description
AR0234 sensor module that works with NVIDIA Jetson Nano and Xavier NX kits. The sensor used has a 2.3 MP sensor and allows video recording at 1920×1200@30fps. The camera module uses ISP hardware functions for better performance, as well as auto exposure, auto white balance and shadow correction functions. An external trigger function is used for video capture and helps with streaming by connecting two or multiple cameras, as well as synchronization with other devices. The global shutter used, meanwhile, allows shooting fast-moving subjects. The camera will excel in applications such as UAVs, drones, robotics, IoT and industrial applications. Documentation along with configuration examples are available on the product page.
Features
- Sensor type: AR0234
- Resolution: 2.3 MP
- Pixel size: 3 um x 3 um
- Optical size: 1/2.6"
- Active pixels: 1920Hx1200V
- Lens Specifications: focal length: 3.6mm, F.NO: 3.0, FOV: 120°(D)/90°(H)/75°(V)
- Lens mount: M12
- IR sensitivity: integrated IR filter
- Global shutter
- Frame rate: 30fps@1920x1200, 30fps@1920x1080, 60fps@1280x700
- Output format: JPG, YUV420, RAW, DNG; MJPEG, H.264
- Sensor output format: RAW10
- Interface type: 2-line MIPI
- Color filter: RGB
- Dimensions: 38 x 38 mm
Kit contains
- ArduCAM 2.3MP AR0234 Global Shutter Camera
- FPC 150mm 15-pin to 22-pin ribbon
- FPC 150mm 22-pin to 22-pin ribbon
1183283
Data sheet
- Resolution
- 2,3 MPx
- Interface
- MIPI CSI-2
- Sensor
- AR0234
- IR filter
- Yes
- Lens assembly
- M12
