IMX296 1.6MP CSI Camera for Raspberry Pi with Global Shutter - Waveshare 32501
ID: 1202643
zł315.95
Tax included
zł256.87 tax excl.
Global shutter camera based on the IMX296 sensor with 1.6MP resolution, designed for fast motion capture and machine vision applications, compatible with Raspberry Pi boards. Waveshare IMX296 Global Camera (A)
Description

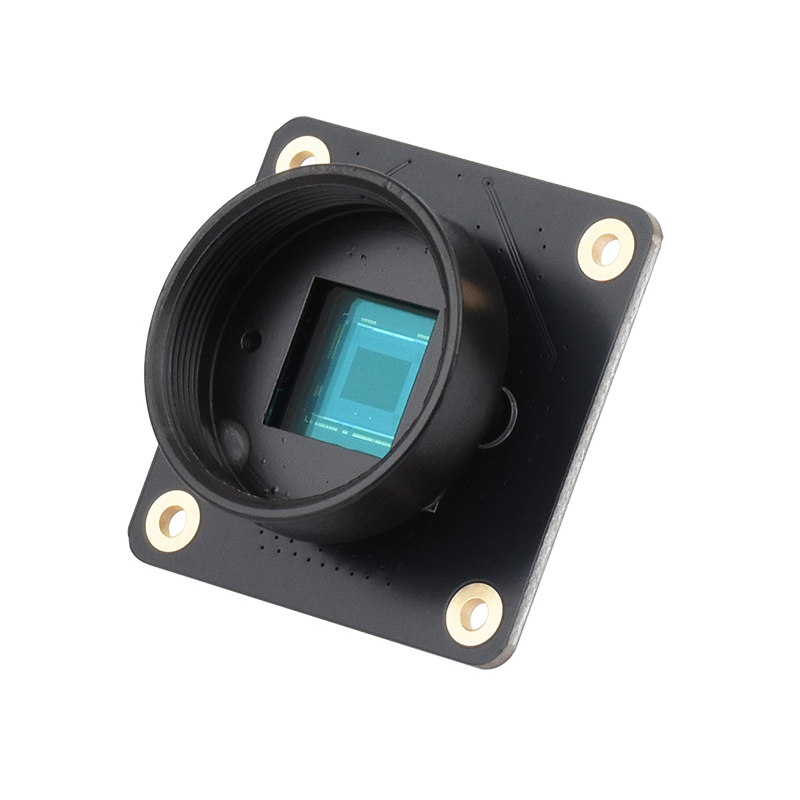

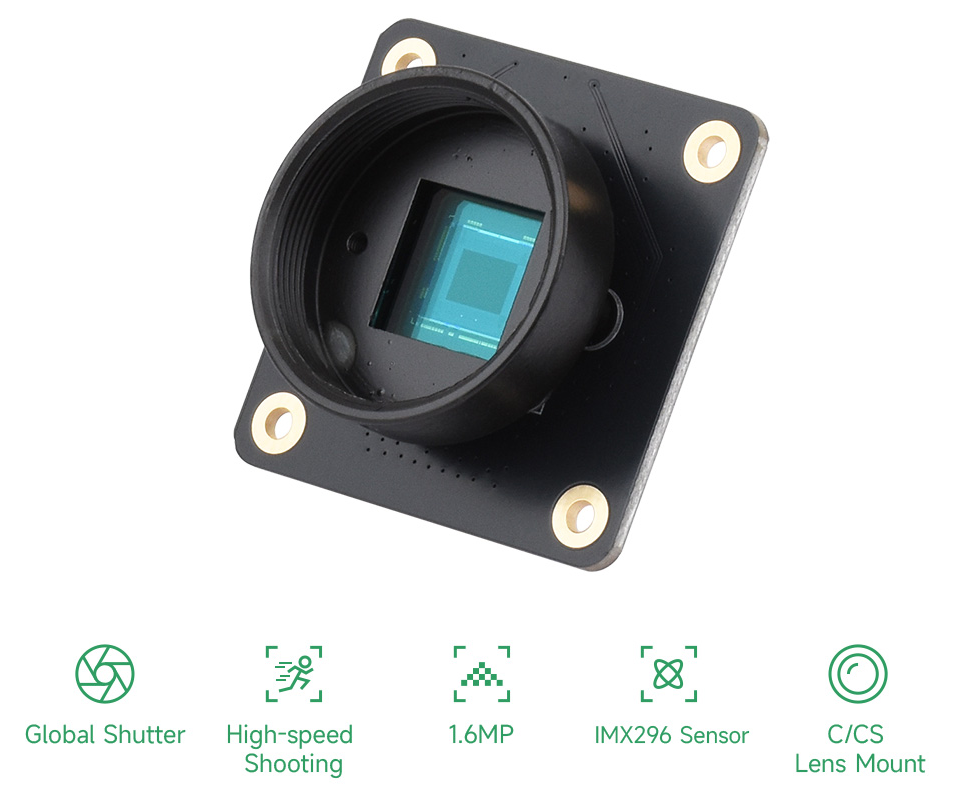

The Waveshare IMX296 Global Camera (A) is designed for applications that require precise capture of fast-moving objects and accurate image reproduction without distortion. The Sony IMX296 sensor features a global shutter, allowing all pixels to be exposed simultaneously, effectively eliminating rolling shutter artifacts and the so-called jelly effect.
The CMOS image sensor offers a resolution of 1456 x 1088 pixels and a diagonal size of 6.3 mm, making the camera suitable for machine vision systems, industrial automation, robotics, motion analysis, and high-speed photography. RAW10 image output enables advanced image processing in specialized applications.
The module is equipped with a C-mount lens interface and includes a C-CS adapter, allowing the use of a wide range of industrial lenses. Communication with Raspberry Pi boards is provided via the CSI interface. The included 15PIN and 15PIN to 22PIN CSI cables ensure compatibility with different CSI connector versions used across the Raspberry Pi family.
Features
- Sensor type: Sony IMX296 CMOS
- Shutter type: Global shutter
- Resolution: 1456 x 1088
- Megapixels: 1.6MP
- Sensor diagonal: 6.3 mm
- Pixel size: 3.45 x 3.45 µm
- Image output format: RAW10
- IR filter: Integrated
- Lens support: C-mount, CS-mount
- Communication interface: CSI
- Applications: Machine vision, fast motion photography, industrial automation, robotics
- Compatibility: Raspberry Pi
Kit includes
- IMX296 Global Camera (A)
- 15PIN CSI cable
- 15PIN to 22PIN CSI cable
- C-CS adapter with dust cap
1202643
Data sheet
- Resolution
- 1.3MPx
- Interface
- CSI
- Sensor
- Sony IMX296
- IR filter
- Yes
- Lens assembly
- C/CS mount
