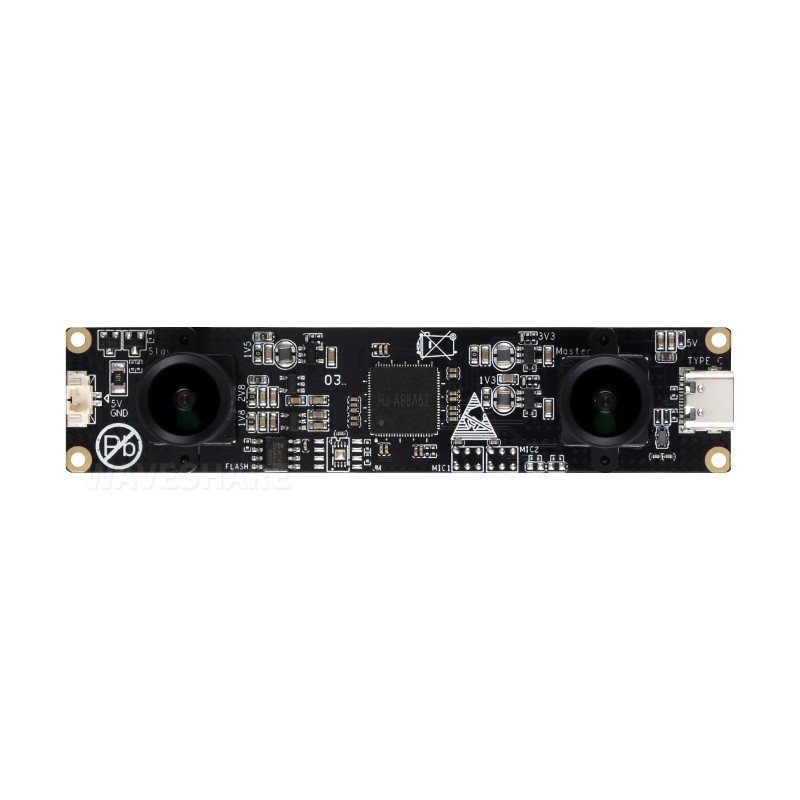

  • Main view
  • Bottom view
  • Angled view (left)
  • Angled view (right)
  • Camera dimensions
ID: 1202657
zł261.17
Tax included

zł212.33 tax excl.

2 MP USB stereo camera module based on OS02G10 sensors, featuring a USB 2.0 Type-C interface, synchronized same-frame output from both cameras, and low-distortion lenses with a 62 mm stereo baseline. Designed for vision systems and 3D applications. Waveshare OS02G10 Stereo USB Camera (A)

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare 32639 stereo camera module is designed for applications requiring simultaneous and precisely synchronized image capture from two cameras. The use of dual OS02G10 sensors with 2 MP resolution enables stereo image acquisition within the same time frame (same-frame output), which is essential for depth analysis, machine vision, and 3D vision systems.


The camera features a 62 mm stereo baseline, providing a balanced compromise between depth measurement accuracy and compact module dimensions. Low-distortion lenses (<0.4%) with a 2.88 mm focal length and F2.2 aperture ensure accurate image geometry without noticeable optical distortion.


The module communicates via USB 2.0 Type-C and operates in Plug & Play mode without requiring driver installation. Support for MJPG and YUY2 image formats allows flexible adjustment of video parameters to suit specific application requirements. The device is suitable for robotics, vision systems, industrial automation, spatial analysis, and AI-related projects.

Features

  • Device type: USB stereo camera module
  • Number of cameras: 2 (stereo)
  • Sensor: OS02G10
  • Resolution: 2 MP
  • Image processor: automatic gain, exposure, and white balance
  • Sensor size: 1/2.9 inch
  • Shutter type: rolling shutter
  • Interface: USB 2.0 Type-C
  • Lens focal length: 2.8 mm
  • Aperture: F2.2
  • Field of view: 92° (D) / 84° (H) / 54° (V)
  • Focus mode: fixed
  • Lens distortion: <0.4%
  • IR filter: 650 nm
  • Synchronization: stereo, same-frame output
  • Stereo baseline length: 62 mm
  • Image formats: MJPG, YUY2
  • Still image resolution: 3840 × 1080
  • Video recording (MJPG):
    • 30 FPS – 3840 × 1080
    • 30 FPS – 2560 × 720
    • 30 FPS – 1920 × 1080
    • 30 FPS – 1600 × 600
    • 30 FPS – 1280 × 720
    • 30 FPS – 1280 × 480
    • 30 FPS – 800 × 600
    • 30 FPS – 640 × 480
    • 30 FPS – 640 × 240
    • 30 FPS – 320 × 240
  • Video recording (YUY2):
    • 2 FPS – 3840 × 1080
    • 5 FPS – 2560 × 720
    • 5 FPS – 1920 × 1080
    • 10 FPS – 1600 × 600
    • 10 FPS – 1280 × 720
    • 10 FPS – 1280 × 480
    • 10 FPS – 800 × 600
    • 30 FPS – 640 × 480
    • 30 FPS – 640 × 240
    • 30 FPS – 320 × 240
  • Operating voltage: 5 V ±5%
  • Operating temperature: 0°C ~ 50°C
  • Supported systems: Windows, Linux, macOS
  • Module dimensions: 100.00 × 22.00 × 17.72 mm
1202657

Data sheet

Resolution
2Mpx
Interface
USB 2.0
Sensor
OS05A10
IR filter
Yes
Lens assembly
M12/S mount
