DFRobot FIT1023 USB Camera Module – OV5648 5 MP with Autofocus (UVC, Driver-Free)
ID: 1201299
5902186330054
zł175.46
Tax included
zł142.65 tax excl.
DFRobot FIT1023 USB camera with an OV5648 sensor and autofocus provides high image quality and easy integration thanks to UVC compatibility. It supports MJPEG and YUY2, operates without drivers, and is used in vision systems, education, automation, and AI prototyping.
Description
The DFRobot FIT1023 camera module equipped with a 5 MP OV5648 sensor provides high image quality while maintaining ease of use thanks to full compliance with the UVC class. The camera automatically adjusts focus from 30 cm to infinity, eliminating the need for manual adjustment and enabling quick deployment in AI, vision, educational, and industrial projects. Support for two video formats – MJPEG and YUY2 – allows adjustment of image quality and transmission bandwidth to application requirements. The module is compatible with popular platforms such as Raspberry Pi, NVIDIA Jetson, PCs, and systems based on Linux, Android, and Windows without the need for driver installation.
Properties
- Image sensor: OV5648, 1/4"
- Resolution: 2592 × 1944 pixels
- Pixel size: 1.4 × 1.4 µm
- Supported formats: MJPEG, YUY2
- Focus range: 30 cm – ∞ (autofocus)
- Field of view (FOV): 65.4° (diagonal)
- Shutter type: rolling shutter
- Interface: USB 2.0
- Power supply: 5 V ±5% via USB
- Power consumption: 1000 mW
- Minimum illumination: 600 mV/(lux·s)
- Signal-to-noise ratio (SNR): 34 dB
- Dynamic range: 67 dB
- System compatibility: Windows XP/Vista/7/8.1/10, macOS, Android, Linux 2.6.2+
- Operating temperature: 0–50°C
- Storage temperature: –30–70°C
- Supported resolutions and frame rates:
- MJPEG: 640×480 (30 FPS), 960×540 (30 FPS), 1280×720 (30 FPS), 1920×1080 (30 FPS), 2592×1944 (15 FPS)
- YUY2: 640×480 (30 FPS), 960×540 (15 FPS), 1280×720 (8 FPS), 1920×1080 (5 FPS), 2592×1944 (2 FPS)
Included
- OV5648 5 MP USB camera module
- USB cable (0.5 m)
1201299
Data sheet
- Resolution
- 2592 x 1944 px
- Interface
- USB 2.0
- Sensor
- OV5648
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Camera with USB interface with 16MP resolution. Equipped with a Sony CMOS IMX298 sensor and a wide-angle lens with a viewing angle of 105°. ArduCAM B0268
zł344.66
24h
Available quantity: 6
Available

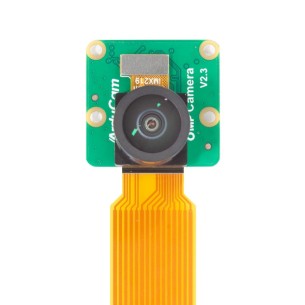

Module with 8 Mpx camera with IMX219 sensor and wide-angle lens. Designed for NVIDIA Jetson AGX Orin/Orin Nano/Orin NX and Raspberry Pi Compute Module. ArduCAM B0179
