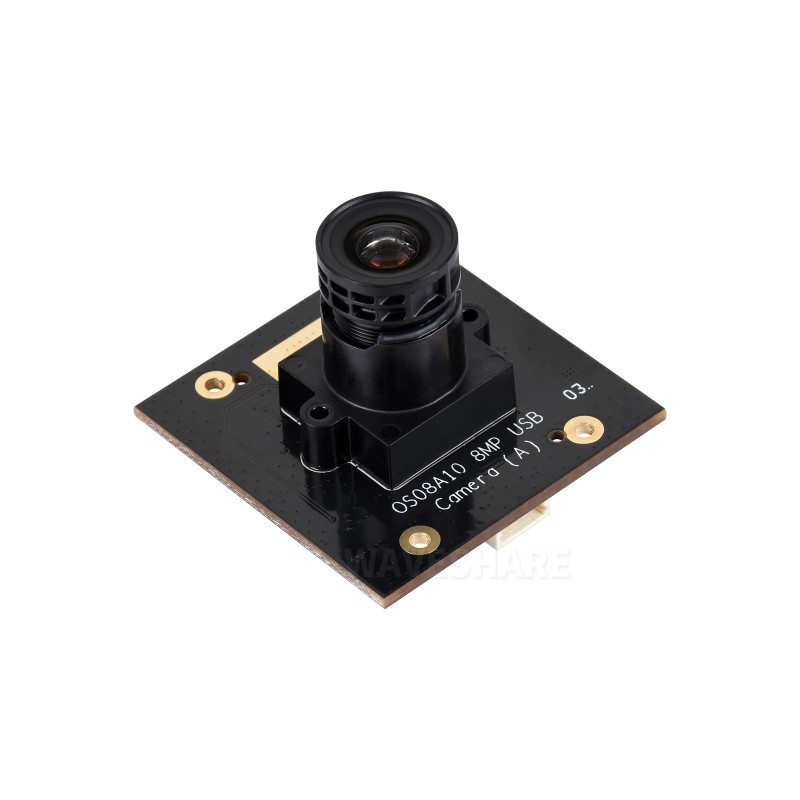

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Side view
  • Angled view – rear of the module
  • Camera dimensions
ID: 1202681
zł324.97
Tax included

zł264.20 tax excl.

8 MP USB camera module based on the OS08A10 sensor, featuring a USB 2.0 interface and an M12 lens, offering 4K resolution (3840 × 2160) and very good low-light sensitivity thanks to a bright F1.6 aperture. Waveshare OS08A10 8MP USB Camera (A)

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare 32640 camera module is designed for applications requiring high image resolution and very good performance in low-light conditions. The integrated OS08A10 sensor with 8 MP resolution and a large 1/1.8-inch optical format enables detailed image capture under limited lighting, reducing noise and preserving image clarity.

The camera is equipped with an M12 (S-mount) lens with a fixed focal length of 4.2 mm and a bright F1.6 aperture, which increases the amount of light reaching the sensor. A built-in 650 nm IR filter improves color reproduction under daylight conditions. The module uses a rolling shutter mechanism, suitable for typical video and monitoring applications.


Communication is handled via USB 2.0, allowing Plug & Play operation without the need for driver installation. Supported MJPG and YUY2 image formats provide flexibility in configuring capture and recording parameters.

The module is suitable for vision systems, monitoring, industrial automation, robotics, AI systems, and projects requiring high image quality in low-light environments.


Features

  • Sensor: OS08A10
  • Resolution: 8 MP
  • Sensor size: 1/1.8 inch
  • Shutter type: rolling shutter
  • Interface: USB 2.0
  • Lens type: M12 (S-mount)
  • Focal length: 4.2 mm
  • Aperture: F1.6 (high low-light sensitivity)
  • Field of view: 68° (D) / 60° (H) / 35° (V)
  • Focus mode: fixed
  • Lens distortion: <2.4%
  • IR filter: 650 nm
  • Image formats: MJPG, YUY2
  • Still image resolution: 3840 × 2160
  • Video recording (MJPG):
    • 25 FPS – 3840 × 2160
    • 25 FPS – 2560 × 1440
    • 25 FPS – 1920 × 1080
    • 60 FPS – 1280 × 960
    • 60 FPS – 1280 × 720
    • 60 FPS – 640 × 480
  • Video recording (YUY2):
    • 1 FPS – 3840 × 2160
    • 1 FPS – 2592 × 1440
    • 1 FPS – 1920 × 1080
    • 15 FPS – 1280 × 720
    • 30 FPS – 640 × 480
  • USB connector: SH1.0 5-pin
  • Operating voltage: 5 V ±5%
  • Operating current: approx. 220 mA
  • Module dimensions: 38.00 × 38.00 × 24.38 mm

Kit includes

  • USB camera module 8 MP OS08A10 ×1
  • USB Type-A to SH1.0 5-pin cable (~1 m)
1202681

Data sheet

Resolution
8MPx
Interface
USB 2.0
Sensor
OS08A10
IR filter
Yes
Lens assembly
M12/S mount
