IMX219-77 Camera – 8 MP, 77° FOV, for Jetson Nano / Xavier NX - Seeed Studio 114992260
search
  • IMX219-77 Camera – 8 MP, 77° FOV, for Jetson Nano / Xavier NX - Seeed Studio 114992260
ID: 1200460
zł112.37
Tax included

zł91.36 tax excl.

The IMX219-77 camera with an 8 MP Sony sensor and a 77° field of view, designed for Jetson Nano and Xavier NX, enables advanced projects in machine vision and AI. It features low distortion, an MIPI connector, and high image quality in a compact size.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

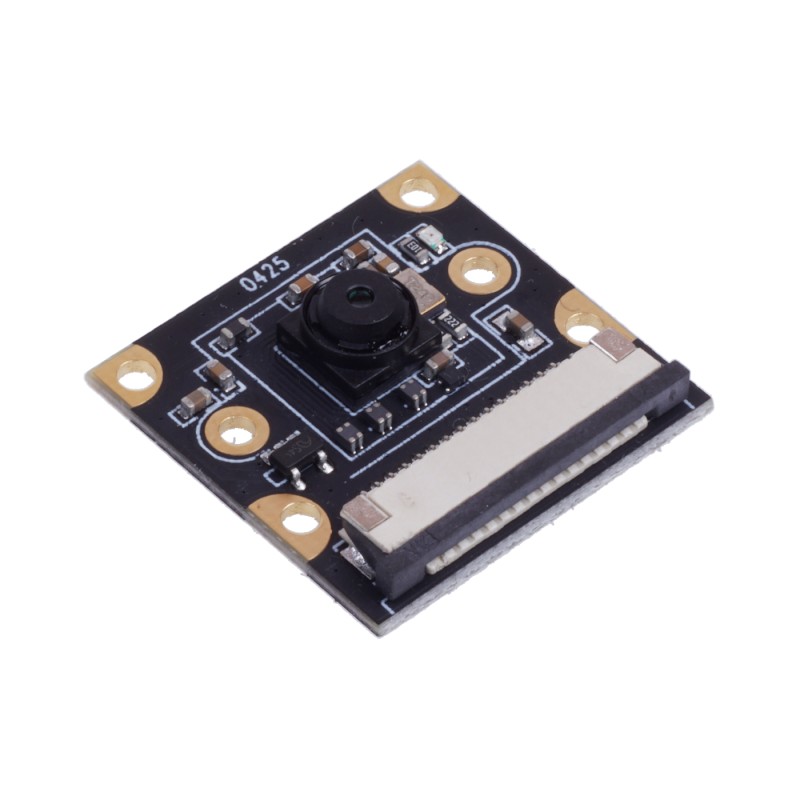

The IMX219-77 camera with an 8-megapixel Sony IMX219 image sensor and a 77° field of view enables capturing images at a high resolution of 3280 × 2464 pixels. Designed for use with NVIDIA Jetson Nano and Xavier NX developer kits, it provides an optimal solution for machine vision, image analysis, and AI edge systems.

The 2.96 mm fixed-focus lens with low distortion (<1%) ensures faithful image capture, while the built-in IR filter provides accurate color reproduction. The camera communicates via the MIPI CSI-2 interface and is powered by 3.3 V. The compact size of the module allows easy integration into embedded projects.

Properties

  • Sensor: Sony IMX219
  • Resolution: 8 MP (3280 × 2464)
  • Sensor format: 1/4 inch
  • Pixel size: 1.12 × 1.12 μm
  • Lens: fixed-focus, focal length 2.96 mm
  • Lens structure: 4P
  • Field of view (FOV): 77° (diagonal)
  • Distortion: <1%
  • Aperture: f/2.0
  • Max. frame rate: 30 fps (QSXGA)
  • Output format: 8/10-bit RGB RAW
  • Interface: 15-pin MIPI connector (1.0 mm)
  • Power supply: 3.3 V (pin 15)
  • IR filter: 650 ±10 nm
  • Focus range: from 30 cm to ∞
  • S/N ratio: 39 dB
  • Dynamic range: 69 dB
  • Sensitivity: 600 mV/Lux-sec
  • Module size: 25 × 24 × 5.3 ± 0.2 mm
  • Operating temperature: from -20°C to 70°C

Set includes

  • 1 × IMX219-77 8 MP camera
  • 1 × 150 mm FPC cable
1200460

Data sheet

Resolution
8MPx
Interface
MIPI
Sensor
IMX219
IR filter
Yes
Lens assembly
none
