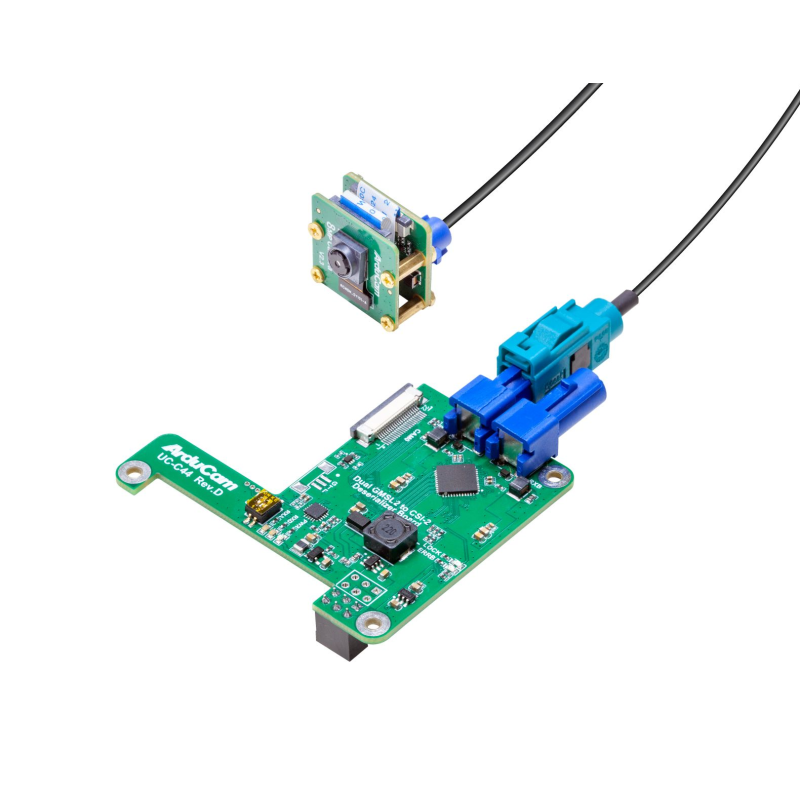

GMSL2 8MP Camera for Jetson Orin Nano/NX - ArduCam B0570

Description

The ArduCam B0570 kit is designed for vision systems requiring long-distance image transmission, based on NVIDIA Jetson Orin Nano and Orin NX platforms. The use of the GMSL2 interface enables stable video data transmission over distances of up to 15 m, while maintaining high bandwidth and low latency, making it suitable for mobile robotics, surveillance, and industrial automation applications.

The kit features a Sony IMX219 image sensor with an 8 MP resolution (3280 x 2464), enabling high-detail image capture. The rolling shutter sensor operates with a dedicated GMSL2 signal path, based on Analog Devices SerDes technology, providing reliable video signal transmission and power delivery using the Power-over-Coax configuration.

The use of a single coaxial cable simplifies system installation, reduces cable count, and lowers overall weight and wiring complexity. The kit maintains backward compatibility with selected GMSL1 serializers, enabling upgrades of existing systems. The solution is intended for applications in robotics, surveillance, precision agriculture, IoT systems, and smart city infrastructure.

Features

• Image Sensor
  • Sensor: Sony IMX219
  • Sensor type: CMOS
  • Sensor resolution: 8 MP
  • Shutter type: Rolling shutter
  • Optical format: 1/4"
  • Pixel size: 1.12 µm x 1.12 µm
  • Active sensor area: 3280 x 2464
• Video Output
  • Output format: RAW10
  • Video modes
  • 3280 x 2464 @ 21 fps
  • 3280 x 1848 @ 28 fps
  • 1920 x 1080 @ 30 fps
  • 1640 x 1232 @ 30 fps
  • 1280 x 720 @ 60 fps
• Lens
  • Focus type: Fixed
  • Lens mount: Factory-integrated
  • Focal length (EFL): 3.04 mm
  • Aperture: F2.0
  • Field of view (D/H/V): 80° / 62.2° / 48.8°
  • Focus range: 20 cm – infinity
  • IR filter: Integrated IR-cut filter
• Interface and Transmission
  • Video interface: GMSL2
  • Power and data transmission: Power-over-Coax (PoC)
  • Maximum cable length: up to 15 m
  • Backward compatibility: support for selected GMSL1 serializers
  • Functionality and Compatibility
  • Supported platforms: NVIDIA Jetson Orin Nano, NVIDIA Jetson Orin NX
• Power and Mechanics
  • Adapter board power supply: 5 V / 1 A
  • Camera power supply: 3.3 V / 500 mA
  • Maximum power consumption (kit): 6.6 W
  • Camera board dimensions: 24 x 25 mm
• Environmental Conditions
  • Operating temperature: -20°C ~ 85°C

Kit includes

• 1x ArduCam GMSL2 receiver board (Rx)
• 1x ArduCam GMSL2 transmitter board (Tx)
• 1x FAKRA Z female-to-female coaxial cable, length 1 m
• 1x ArduCam IMX219 8 MP camera module
• 1x 22–22 pin FPC cable, length 40 mm
• 1x 22–22 pin FFC cable, length 300 mm
• 1x Mounting hardware set
