4K 16MP USB Autofocus Camera in Metal Housing - ArduCam B029002C
ID: 1203759
5902186334496
zł240.74
Tax included
zł195.72 tax excl.
4K 16MP USB camera with autofocus, based on a 1/2.8" CMOS sensor, enclosed in a durable metal housing. Supports 3840×2160@25fps video and 4656×3496 still images. Plug-and-play via USB 2.0 (UVC).
Description
The ArduCam B029002C is a compact 16MP USB camera supporting 4K video (3840 × 2160 @ 25 fps) and still image capture up to 4656 × 3496 pixels. Built around a 1/2.8" CMOS sensor, it delivers high image detail for industrial applications, AI systems, automation, inspection, and robotics.

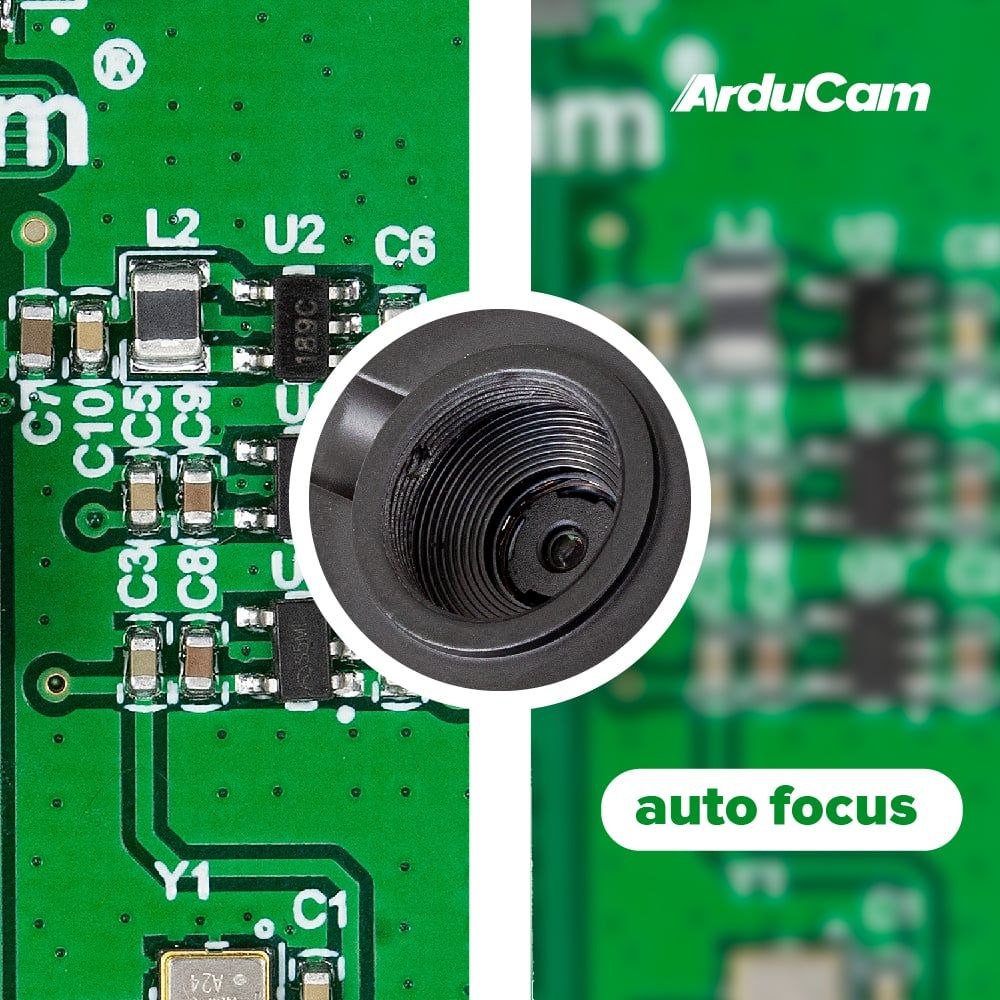

The autofocus lens with a 60° horizontal field of view (HFOV) automatically maintains sharp focus from 10 cm to infinity. The camera operates as a USB 2.0 UVC-compliant device, providing true plug-and-play functionality on Windows, Linux, macOS, and Android systems without requiring additional drivers.
The metal enclosure improves heat dissipation and ensures mechanical durability during continuous operation. The built-in digital PTZ (Pan-Tilt-Zoom) function allows ROI (Region of Interest) control at lower resolutions. The camera also supports preset AI resolutions, enabling direct training and deployment of AI models without additional image cropping.
Features
- Sensor: 1/2.8" CMOS
- Still Image Resolution: 16MP (4656 × 3496)
- 4K Video: 3840 × 2160 @ 25 fps (MJPG)
- Output Format: MJPG / YUY2
- Lens: Autofocus
- Field of View (HFOV): 60°
- Focus Range: 10 cm – ∞
- Interface: USB 2.0 (UVC compliant, plug-and-play)
- Operating Voltage: 5 V
- Power Consumption: approx. 1.75 W
- Operating Temperature: 0°C to 70°C
- Enclosure: Metal housing
- Supported OS: Windows, Linux, macOS, Android
1203759
Data sheet
- Resolution
- 16 Mpx
- Interface
- USB 2.0
- Sensor
- Inna
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
