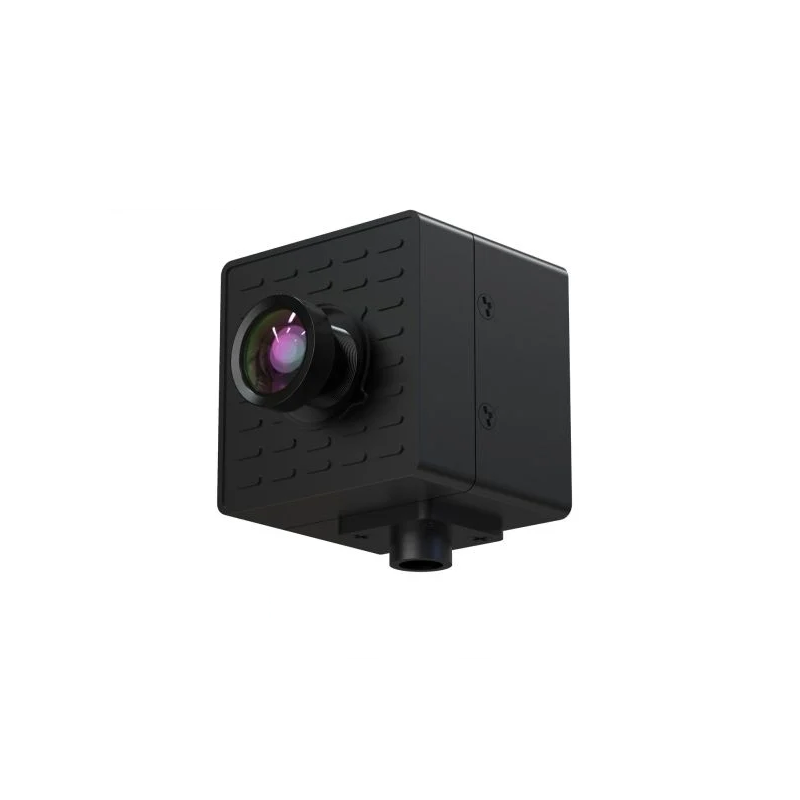

ArduCAM UVC AI Camera - AI USB UVC camera with 12.3MP IMX500 sensor

Description

ArduCAM UVC AI is a compact camera with built-in artificial intelligence designed for computer vision applications running directly on the device (Edge AI). The module uses a Sony IMX500 sensor with a resolution of 12.3 MP, which integrates image processing and AI computing functions in a single chip. This allows image analysis to be performed locally, without the need to send data to the cloud or an external server. Such a solution provides low latency, increased data privacy, and the ability to operate in environments without Internet access. The camera is compatible with the USB3 UVC interface, ensuring full plug-and-play functionality without installing additional drivers.

The module works with the Arducam AI Model Zoo and the Sony AITRIOS™ platform, providing access to many ready-to-use artificial intelligence models. This enables rapid implementation of functions such as object detection, image segmentation, pose estimation, and classification. Thanks to the high sensor resolution and optimized optics, the camera delivers clear images and stable performance in various lighting conditions. The integrated M12 lens with a wide field of view allows observation of a large scene area, which is particularly useful in monitoring and automation systems.

The camera communicates with a computer via USB 3.2 Gen 1 with a reversible USB-C connector, while remaining compatible with USB 2.0 hosts. Support for the UVC standard enables quick operation on Windows and Linux systems without installing drivers. The device supports multiple image adjustment parameters such as brightness, contrast, white balance, and exposure. Its compact design and low power consumption make the module ideal for embedded systems, research projects, and industrial applications.

Thanks to the integration of image processing and artificial intelligence in a single module, the camera can be used in a wide range of applications such as security monitoring, industrial automation, robotic systems, motion analysis, intelligent transportation systems, and IoT projects. Real-time AI model support enables rapid deployment of advanced image analysis features without requiring powerful computing servers. The Arducam IMX500 UVC AI Camera provides a practical and easy-to-integrate solution for engineers and developers of computer vision systems.

Features

• Image sensor: Sony IMX500
• Photo resolution: 12.3 MP
• Image type: color
• Shutter type: Rolling Shutter
• Optical sensor format: 1/2.3"
• Output format: YUY2
• Pixel size: 1.55 µm × 1.55 µm
• Full active sensor area: 4056 × 3040 pixels
• Supported resolution with AI: 2016 × 1520 @ 10–20 fps
• Supported resolution without AI:
  • 4048 × 3040 @ 12 fps
  • 2016 × 1520 @ 40 fps
  • 1280 × 720 @ 10 fps
• Lens:
  • Focus type: Fixed Focus
  • Field of view (FOV): 113° (D) / 100° (H) / 83° (V)
  • Lens mount: M12
  • Aperture: F2.8
  • Focal length: 2.70 mm
  • Focus range: 0.3 m – infinity
  • Integrated IR filter 650 nm
• Interface: USB 3.2 Gen 1 (backward compatible with USB 2.0)
• Connector: USB Type-C
• UVC standard: plug-and-play support without additional drivers
• Supported operating systems: Windows, Linux
• Example applications: PotPlayer (Windows), qv4l2 (Linux)
• SDK support: Arducam IMX500 UVC SDK
• AI model support: Arducam AI Model Zoo, Raspberry Pi IMX500 AI Model Zoo
• UVC control: Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto)
• Operating voltage: 5 V ±5%
• Maximum power consumption: 1.3 W
• Operating temperature range: -20 °C to +75 °C
• Dimensions: 38 × 34 × 38 mm

Kit contains

• ArducCAM IMX500 USB3 UVC AI Camera
• USB A to USB-C cable 1 m
