USB-UART (TTL) FT232RNL module without pins - Waveshare 27466
ID: 1196639
5902186303928
zł22.66
Tax included
zł18.42 tax excl.
USB-TO-TTL-FT232 is a reliable USB-to-UART converter designed for applications requiring a compact module with safe and fast serial communication. It is well-suited for microcontroller programming, UART port diagnostics, and powering devices in embedded systems. With high system compatibility and full logic-level isolation, it is an ideal tool for electronics designers and system integrators.
Description

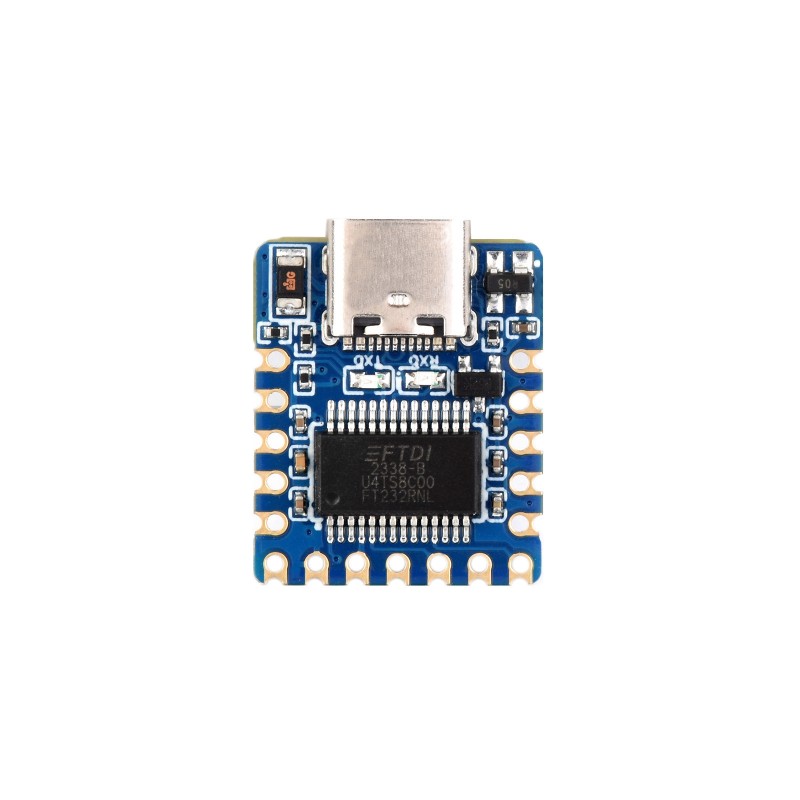

The USB-TO-TTL-FT232 module, featuring the original FT232RNL chip, enables USB-to-UART (TTL) signal conversion, providing stable and high-speed data transmission ranging from 300 bps to 3 Mbps. Its compact form factor with castellated holes and immersion gold finish allows direct integration into target devices.
The board includes overvoltage protection (ESD diodes), a resettable fuse, and LED indicators for RX and TX line activity. The default VCC voltage is set to 3.3 V, with the option to switch to 5 V by soldering designated pads on the back of the board. A USB Type-C connector ensures a durable and reliable connection to a computer or embedded system.
The module is compatible with Windows (7/8/10/11), Linux, macOS, and Android systems.
Features
- Original FT232RNL chip – stable transmission, high compatibility
- UART baud rate: 300 bps – 3 Mbps
- Castellated holes for direct solder integration
- ESD diodes and resettable fuse – protection against overvoltage and overload
- RXD and TXD LED indicators
- Default VCC: 3.3 V; switchable to 5 V by soldering pads
- Full signal breakout: TXD, RXD, RTS, CTS
- USB Type-C connector – durable and convenient connection
- Dimensions: 18 × 21.5 mm
