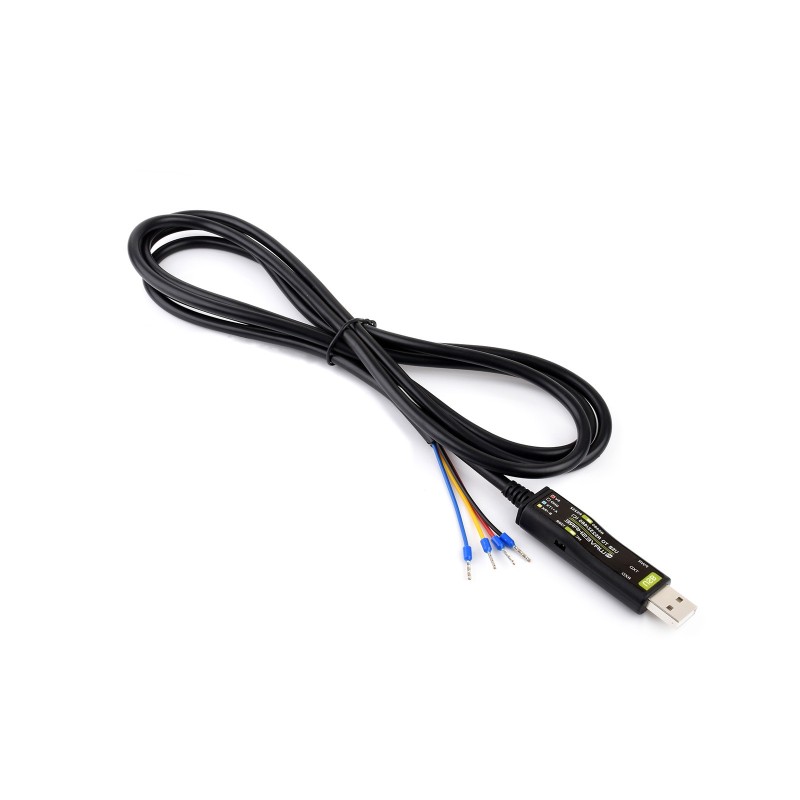

USB-RS232/RS485 (C) converter with FT232RNL chip, 2 m cable - Waveshare 29573
ID: 1197566
5902186307490
zł59.02
Tax included
zł47.98 tax excl.
USB TO RS232/485 (C) is a versatile signal converter based on the reliable FT232RNL chip, enabling stable serial communication via a USB port. With support for both RS232 and RS485 and broad system compatibility, it is suitable for testing industrial devices, programming microcontrollers, and integration with computers in various hardware environments.
Description
USB to RS232/RS485 signal converter based on the original FT232RNL chip, enabling reliable and stable data transmission between a computer and serial devices. It supports switching between RS232 and RS485 interfaces, offering broad compatibility with industrial equipment, microcontrollers, and embedded systems.
Integrated ESD diodes, a resettable fuse, and surge protection enhance the converter’s reliability and resistance in harsh working conditions. LED indicators display power status as well as data transmission and reception. The 2-meter PVC-sheathed cable provides flexible installation options. Compatible with Windows, Linux, macOS, and Android systems.
Features
- Host interface: USB-A
- Device interface: RS232 or RS485 (switchable)
- Chip: original FT232RNL
- Transmission speed: 300 bps – 921,600 bps
- RS232 mode: point-to-point
- RS485 mode: point-to-multipoint
- Protections: ESD, resettable fuse, TVS diode, surge protection
- LED indicators:
- PWR – power
- TXD – USB transmission
- RXD – serial port reception
- Connectors: 4-pin cable with female crimp terminals
- Output power: 5 V for powering external devices
- Cable length: 2 m, PVC insulation
- System compatibility: Windows 7/8/8.1/10/11, Linux, macOS, Android
