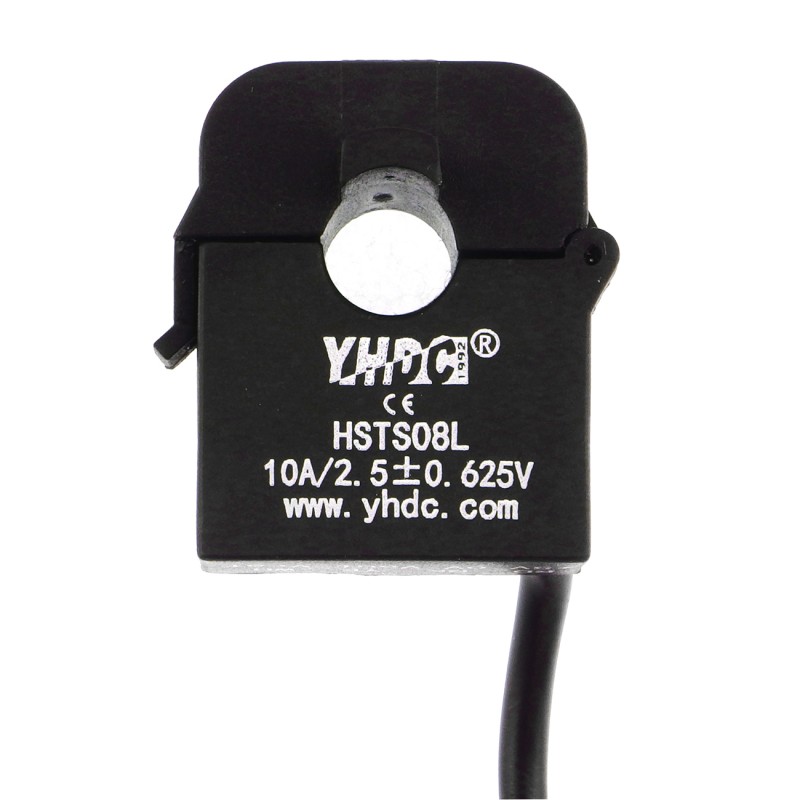

HSTS08L – 10A Current Sensor
ID: 1195426
5902186303287
zł71.86
Tax included
zł58.42 tax excl.
HSTS08L 10A 2.5V Current Sensor. Enables measurement of high currents. modHSTS08L
Description
The HSTS08L Hall effect sensor enables measurement of high DC, AC, and pulsed currents. The measured current is linearly related to the output signal, which can be directly connected to automation equipment or a PLC. It operates as a split-core current transformer.
Features
- Flame resistance: UL94-V0
- Operating temperature: -25℃ to +70℃
- Storage temperature: -25℃ to +70℃
- Dielectric strength: 2.5 kV / 50 Hz / 1 min
- Rated current: ±10 A
- Input measurement range: ±10 A
- Rated output: 2.5 ± 0.625 V
- Accuracy: 1%
- Linearity: <0.2%
- Supply voltage: +5 V
- Current consumption: +12 mA
- Load impedance: ≥10 kΩ
- Zero offset: ≤15 mV
- Response time: ≤1 µs
- Weight: 22 g
1195426
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- 0 - 10 A
- Sposób podłączenia
- Nieinwazyjny
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
