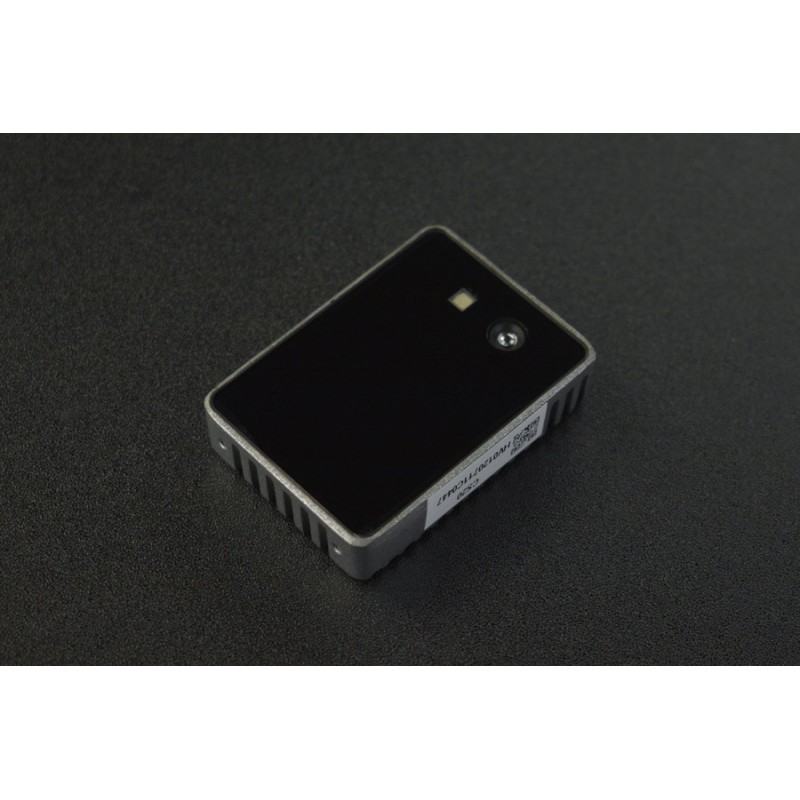

CS20 Dual-Resolution 3D TOF Solid-state LiDAR - 3D LiDAR distance sensor (5m)
ID: 1186680
5902186311381
zł958.99
Tax included
zł779.67 tax excl.
LiDAR CS20 3D TOF equipped with a ToF image sensor with a resolution of 640 x 480 pixels. It uses ToF technology to record three-dimensional information about objects and space. It can accurately measure distances up to 5 m. DFRobot SEN0579
Description
LiDAR CS20 3D TOF equipped with a ToF image sensor with a resolution of 640 x 480 pixels. It uses ToF technology to record three-dimensional information about objects and space. It can accurately measure distances up to 5m while consuming only 1.2W of power on average. This makes it a convenient and efficient tool for 3D perception applications.
LiDAR is compact and lightweight and compatible with multiple operating systems including Linux, Windows, ROS and Android. It is powered and sends information via the USB Type-C interface. Users can obtain depth, point clouds and other data via the SDK. It is widely used in various applications such as SLAM robots, volume measurement, facial recognition, sensory interaction, 3D modeling, security monitoring and people counting. Compared to 3D structured light cameras, ToF depth cameras offer several advantages, such as a small blind spot, linearly related measurement errors unaffected by distance or scene texture, high imaging speed, and high environmental adaptability.
Features
- Resolution: 640x480/320x240
- Range: 0.1 to 5 m
- VCSEL wavelength: 940nm
- Accuracy: 1% @ white wall
- Field of view: H60° x V45°
- Data transmission: USB 2.0, Type-C interface
- Operating system: Linux, Windows, ROS, Android
- Working temperature: -10 to 50℃
- Security: Class 1
- Power: 5V, 0.5A
- Power dissipation: 1.2W
- Dimension: 48x34x12mm
1186680
Data sheet
- Interface
- USB
- Type of sensor
- LIDAR
- Minimum distance
- 10 cm
- Maximum distance
- 500 cm
