Laser ToF distance sensor based on the VL53L1X, providing distance measurements up to 4 m at a ranging frequency of up to 50 Hz. Equipped with a Class 1 940 nm infrared emitter and SPAD receiver, it communicates via the I2C interface. The module operates from a 3.3 V to 5 V supply and comes with a pre-installed 200 mm GH4P cable. Designed for use with the Pixhawk 4 flight controller. Holybro ST VL53L1X Lidar

24h
Available
Available quantity: 2

Description

Laser ToF distance sensor based on the VL53L1X, designed for use with the Pixhawk 4 flight controller and UAV platforms. It provides distance measurements up to 400 cm at a ranging frequency of up to 50 Hz, allowing it to be used for altitude and obstacle distance measurements. The Time-of-Flight measurement system uses an invisible Class 1 940 nm infrared emitter and a SPAD receiver array with an integrated lens.

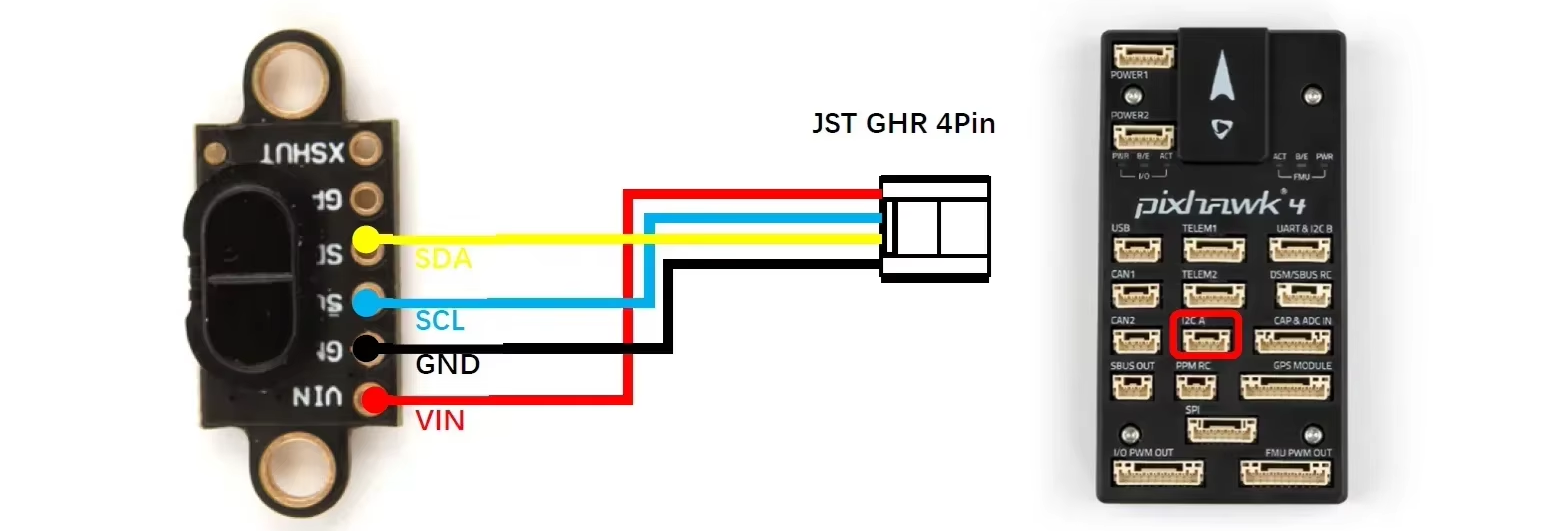

                                                                              Pinout and dedicated Pixhawk 4 flight controller (not included)


The typical full field of view is 27°, while the programmable Region of Interest (ROI) allows the sensor's field of view and measurement area to be adjusted. The module communicates via I2C at up to 400 kHz, operates from a 3.3–5 V supply and can be used in multirotor drones, RC aircraft and other platforms requiring distance measurements.

Features

  • Module model: ST VL53L1X Lidar
  • Product type: laser ToF distance sensor
  • Sensor: VL53L1X
  • Measurement technology: Time-of-Flight
  • Maximum measurement range: 4 m
  • Maximum ranging frequency: 50 Hz
  • Emitter wavelength: 940 nm
  • Laser class: Class 1
  • Receiver: SPAD array with integrated lens
  • Typical field of view (FoV): 27°
  • Programmable Region of Interest (ROI)
  • Communication interface: I2C
  • Maximum I2C frequency: 400 kHz
  • Module supply voltage: 3.3 V to 5 V
  • Pinout: VIN, GND, SCL, SDA
  • Connector: 4-pin JST GHR
  • Dimensions: 25 × 10.7 × 3.2 mm
  • Weight: 2.4 g

Kit includes

  • ST VL53L1X Lidar module
  • Pre-installed 200 mm GH4P cable
  • TPU protective case
