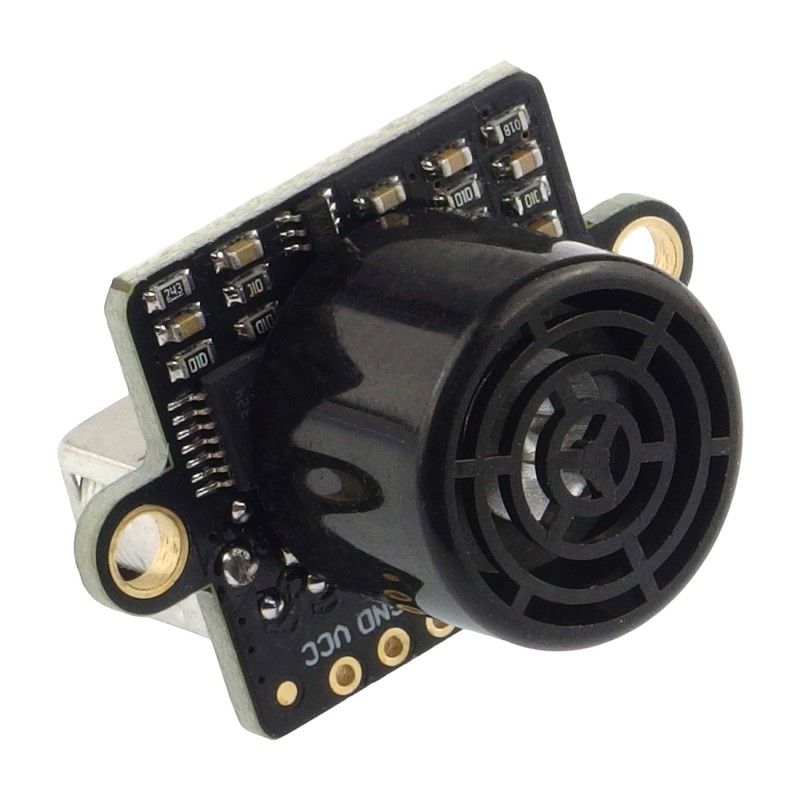

GY-US12V2 - ultrasonic distance sensor (720cm)
ID: 587391
5906623463527
zł67.45
Tax included
zł54.84 tax excl.
Ultrasonic distance sensor module with a range of up to 720 cm. It communicates via UART, I2C or PWM interface. It is compatible with 3.3V or 5V devices. GY-US12V2
Description
Ultrasonic distance sensor module with a range of up to 720 cm. It can be operated with a voltage in the range of 3 to 5 V and is compatible with 3.3 V or 5 V devices such as Arduino and Raspberry Pi etc. The average current consumption of the sensor is only 9 mA, so it can be powered by the IO port of most controllers. Communication with the module takes place via the UART, I2C interface or PWM output. It works well as a measuring sensor in mobile robots, drones or on production lines.
Features
- Range: up to 720 cm
- Deadband: up to 20 cm
- Resolution: 1 cm
- Output: UART, I2C, PWM
- Measurement frequency: 15 Hz
- Supply voltage: 3 to 5V
- Average current consumption: 9 mA
- Working temperature: -20 to 65℃
- Dimensions: 21.5 x 21 x 24.5 mm
587391
Data sheet
- Interface
- UART/I2C/PWM
- Type of sensor
- Ultrasonic
- Minimum distance
- 20 cm
- Maximum distance
- 720 cm
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Ultrasonic distance sensor module with a range of up to 7.5m enclosed in a waterproof and dustproof housing. It is compatible with 3.3V or 5V devices such as Arduino, Raspberry Pi DFRobot SEN0313
zł167.65
24h
Available quantity: 4
Available
Ultrasonic distance sensor RCW-0001 with a measuring range from 1 to 450 cm and a resolution of 1 mm. It is compatible with the popular HC-SR04 sensor. RCW-0001
zł10.50
24h
Available quantity: 11
Available
A set of 40 pieces of female-female connecting cables in various colors, 10 cm long
zł4.35
24h
Available quantity: 385
Available
A set of 40 pcs of male-female connecting cables in various colors, 10 cm long
zł4.31
24h
Available quantity: 113
Available
Other products in the same category (16)
A multifunctional module with an optical sensor for measuring the intensity of illumination, the color of the incident RGB light, the distance from the object and the detection of 3D gestures. Adafruit 3595
zł38.27
24h
Available quantity: 2
Available
Available
A miniature lidar proximity sensor that detects objects up to 5 cm away, regardless of color, transparency, or lighting. It generates a digital signal (0 V on detection), operates in the 3-5.5 V range, draws only 30 mA, and supports sleep mode via the ENABLE pin. Ideal for robotics, automation, and contactless interfaces, it offers a fast response time (142 Hz), switching hysteresis, and a compact housing with an indicator LED. Pololu 5460
zł75.35
4 weeks
No product available!
A miniature lidar proximity sensor that detects objects ranging from less than 1 mm to 50 cm by generating a PWM signal proportional to distance. It operates in a 3-5.5 V range, draws 30 mA, features an ENABLE pin for sleep mode, and holes for a 2.54 mm connector and an indicator LED. Its color, transparency, and light-sensitive properties make it ideal for robotics, automation, and contactless interfaces. Pololu 5562
zł75.35
4 weeks
No product available!
A set of LIDAR laser scanner and data processing unit. It allows you to create maps of areas up to 100 000 m². Range up to 20 m and resolution up to 5 cm. It has a built-in inertial 9-DOF navigation system. Seeed Studio 114991984
zł3,403.67
4 weeks
No product available!
A miniature lidar distance sensor that detects objects up to 200 cm away, regardless of color, transparency, or lighting. It generates a digital signal (0 V on detection), operates in the 3-5.5 V range, draws only 30 mA, and supports sleep mode via the ENABLE pin. Ideal for robotics, automation, and contactless interfaces, it offers a fast response time (30 Hz), switching hysteresis, and a compact housing with an indicator LED. Pololu 5491
zł94.27
4 weeks
No product available!
Module with the 3-channel distance sensor OPT3101. The sensor has a range of up to 1 m, a wide viewing angle of up to 180° and communicates via the I2C interface. Pololu 3412
zł209.33
4 weeks
No product available!
Satellite board can be used for easy integration into customer devices and basic gesture detection applications.Thanks to its 2.8V regulator and level shifters, the VL53L0X satellite board can be used in any application with a 2.8 to 5V supply
zł103.00
24h
Available quantity: 1
Available
The GP2Y0A41SK0F sensor performs precise distance measurement in the range of 4–30 cm with an analog output signal adapted for operation with microcontrollers. It is used in robotics projects, obstacle avoidance systems, and automation devices detecting the presence of objects.
zł39.35
24h
Available quantity: 3
Available
Distance Measuring Sensor Unit; Measuring distance: 100 to 550 cm; Analog output type, Sharp, RoHS
zł87.76
24h
Available quantity: 1
Available
ToF distance sensor module based on the VL6180X system. It offers a range of 2 to 50 cm and communicates via the I2C, UART or Modbus interface. TOF050F
zł45.65
4 weeks
No product available!
ToF distance sensor module based on the VL53L1X system. It offers a range from 4 to 400 cm and communicates via the I2C, UART or Modbus interface. TOF400F
zł66.22
4 weeks
No product available!
A miniature lidar distance sensor that detects objects up to 100 cm away, regardless of color, transparency, or lighting. It generates a digital signal (0 V on detection), operates in the 3-5.5 V range, draws only 30 mA, and supports sleep mode via the ENABLE pin. Ideal for robotics, automation, and contactless interfaces, it offers a fast response time (100 Hz), switching hysteresis, and a compact housing with an indicator LED. Pololu 5483
zł94.27
4 weeks
No product available!

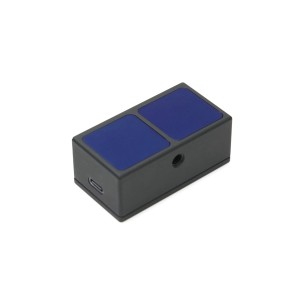

Laser radar based on cwToF technology and metasurface lenses, offering depth maps and IR images in 160x60 pixel resolution and a wide viewing angle of 108°x40°. Thanks to its solid-state construction, range up to 4.5 m and resistance to strong lighting (up to 60 Klux), it is ideal for applications such as robotics, obstacle avoidance systems, access control and volume measurement. DFRobot DFR1177
