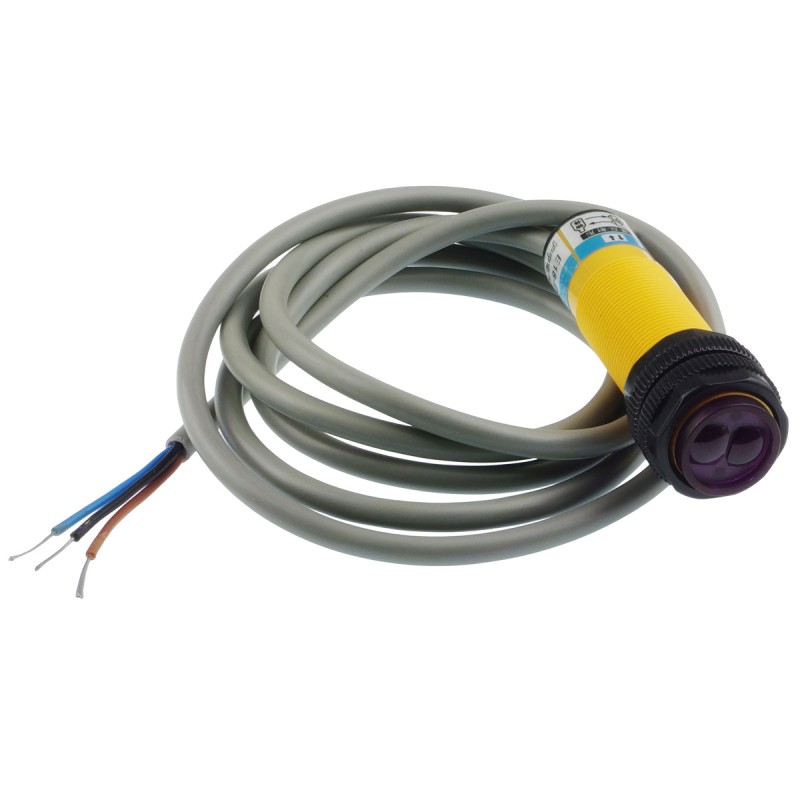

E18-D50NK - Adjustable distance sensor (up to 50cm)
ID: 557580
5906623454693
zł22.82
Tax included
zł18.55 tax excl.
Adjustable proximity sensor E18-D50NK allows detection of the object within 3 - 50 cm. Detection of an obstacle occurs due to the appearance of reflected infrared light.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The adjustable proximity sensor is a sensor operating in the infrared band, allowing detection of objects in its field of view. The distance range in which it is possible to adjust is 3-50 cm. The sensor is small, cheap and easy to use and assemble. Ideally suited for applications in robotics applications, e.g. as an "obstacle detector" on the way of a mobile robot.
properties
- Range: 3-50 cm (adjustable by potentiometer)
- Power consumption: 100 mA
- Description of pins:
- brown wire: + VCC
- black wire: a digital logic signal that indicates the presence of an obstacle
- blue wire: GND
- Cable length: 110 cm, insulated terminals
- Power supply: 5V DC
- Dimensions of the sensor:
- Length: 77 mm
- Diameter of the threaded surface: 17.5 mm
Included
- Adjustable distance sensor E18-D50NK
- 2 x plastic nuts for sensor mounting
557580
Data sheet
- Interface
- Sygnał cyfrowy
- Type of sensor
- Infrared
- Minimum distance
- 3 cm
- Maximum distance
- 50 cm
