Motorshield - a module with a 4-channel DC motor driver for Raspberry Pi
ID: 1178311
5906623413645
€20.36
Tax included
€16.55 tax excl.
The module with a 4-channel L293D DC motor driver, designed to work with the Raspberry Pi. It can work with a voltage from 6 to 24 V and a current of up to 600 mA. SB Components 08001
Description
The module with a 4-channel L293D DC motor driver, designed to work with the Raspberry Pi. It can work with a voltage from 6 to 24 V and a current of up to 600 mA. It allows you to control the rotation of four DC motors or two stepper motors. On the board there are connectors for connecting additional sensors: IR and ultrasonic distance sensor. It will work as a module for building a mobile robot. Full documentation and examples of use are available on the product page.
Features
- Standard Raspberry Pi connector
- 4-channel L293D driver
- Working voltage: 6 to 24 V
- Maximum continuous current: 600 mA
- Maximum instantaneous current: 1.2 A
- Connectors for IR sensor and ultrasonic distance sensor
- LED diodes
- Screw connections
- Dimensions: 65 x 56 mm
1178311
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 1GB RAM LPDDR4, Broadcom VideoCore VI layout.
€42.42 24hAvailable quantity: 146 AvailableThe latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
€53.26 Delivery date unknown No product available!
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
€66.76 24hAvailable quantity: 166 AvailableThe long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 8 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
€87.46 24hAvailable quantity: 12 AvailableModule with a 2-channel driver for DC motors TB6612FNG designed to work with the Raspberry Pi. It can work with voltages from 6 to 12 V and currents up to 3 A. SB Components 21468
€21.97 24hAvailable quantity: 2 Available
Other products in the same category (16)
ual MAX14870 Motor Driver is a dual DC motor driver compatible with the Raspberry Pi standard that allows you to control two DC motors with 4.5 ... 36V continuous current of 1.7A. Pololu 3758
€23.17 24hAvailable quantity: 2 AvailableModule with 16-channel PCA9685 servo driver designed for Raspberry Pi minicomputers. The board is equipped with a USB Type C power connector. SparkFun DEV-15316
€15.16 24hAvailable quantity: 1 AvailablePiFace Relay Motor Control Extra (Board) for Raspberry Pi
€21.45 24hAvailable quantity: 1 AvailableThe official extension module (HAT) dedicated to the Raspberry Pi. It allows you to control LEGO SPIKE Prime motors and service LEGO sensors. Raspberry Pi SC0622
€44.20 24hAvailable quantity: 1 AvailableDC motor driver that allows you to control the movement of two drives using the I2C interface. Board without connectors. Pololu 5059
€155.71 6 weeks No product available!
Extension module with a driver for two stepper motors based on the DRV8825 system. Dedicated for Raspberry Pi minicomputers. Waveshare Stepper Motor HAT
€26.91 4 weeks No product available!
DC motor driver that allows you to control the movement of two drives using the I2C interface. Board with soldered connectors. Pololu 5054
€140.93 6 weeks No product available!
Extension module with a driver for two stepper motors based on the HR8825 system. Dedicated for Raspberry Pi minicomputers. Waveshare Stepper Motor HAT (B)
€18.94 24hAvailable quantity: 4 AvailableThis add-on board makes it easy to control two high-power DC motors with a Raspberry Pi. Its twin discrete MOSFET H-bridges support a wide 6.5 V to 36 Voperating range and are efficient enough to deliver a continuous 14 A without a heat sink. The drivers offer basic current limiting functionality, and they accept ultrasonic PWM frequencies for quieter operation.
€65.70 24hAvailable quantity: 2 AvailableDC motor driver that allows you to control the movement of two drives using the I2C interface. Board with soldered connectors. Pololu 5051
€76.72 6 weeks No product available!
DC motor driver that allows you to control the movement of two drives using the I2C interface. Board with connectors for assembly. Pololu 5052
€71.23 6 weeks No product available!

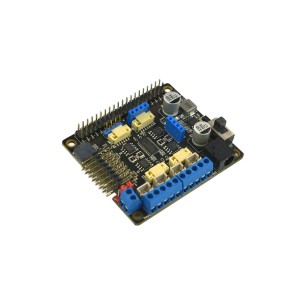

Motor driver module for Raspberry Pi that allows simultaneous control of servos, DC and stepper motors using I2C interface, with additional UART support for external communication. With a built-in DC-DC regulator, it can power Raspberry Pi with up to 3A current, while its stackable design and spare DIP headers for camera and display increase design flexibility. The module is ideal for robotic projects, offering independent power supply for servos, adjustable PWM, and additional features such as buzzer and IR receiver. DFRobot DRI0054
