- New

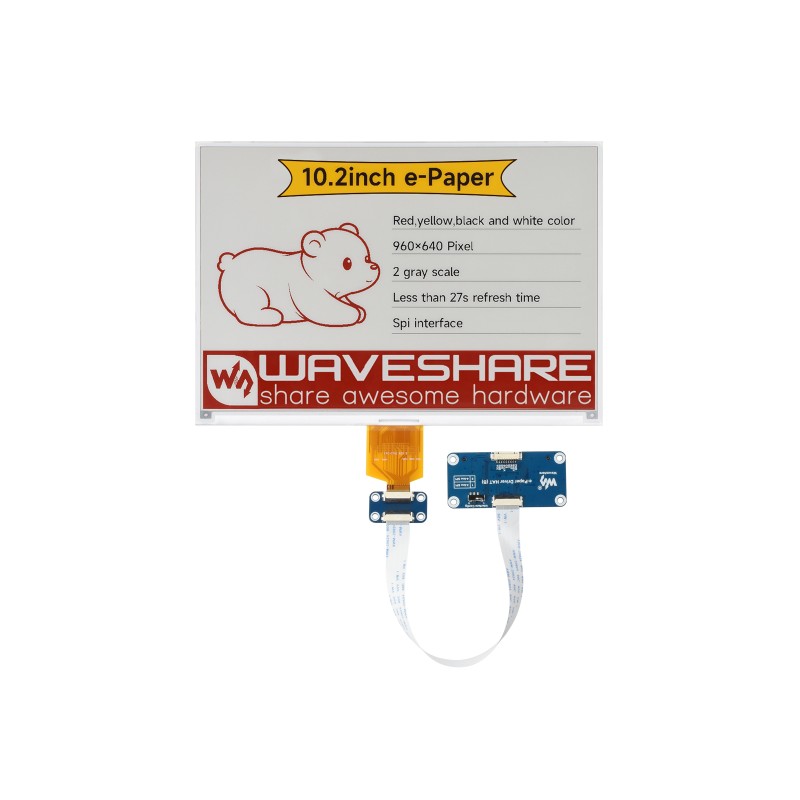

10.2-inch e‑Paper HAT (G) 960×640, 4-color SPI display with E‑Ink controller board - Waveshare 31124
ID: 1198902
zł514.39
Tax included
zł418.20 tax excl.
10.2inch e-Paper HAT (G) is a four-color e-paper display with a resolution of 960×640, designed for applications requiring low power consumption and high readability. The controller board with SPI interface and logic level converter allows integration with popular microcontroller platforms and single-board computers.
Description
10.2-inch e-paper display with a resolution of 960×640 pixels and a four-color palette (red, yellow, black, white), based on microcapsule electrophoretic technology. The use of a passively reflective matrix without backlight ensures readability in natural light and nearly 180° viewing angles. The device retains the last image without power, consuming energy only during refresh.
The e-Paper Driver HAT control board communicates via SPI and is equipped with a 3.3 V / 5 V logic level converter, allowing compatibility with platforms such as Raspberry Pi, Arduino, STM32, and Jetson Nano. A 40-pin GPIO connector compatible with Raspberry Pi facilitates integration with single-board computers. The solution is suitable for applications such as shelf labels, nameplates, asset tags, and information displays in environments with limited power availability.
Properties
- Display size: 10.2"
- Resolution: 960 × 640 pixels
- Color palette: red, yellow, black, white
- Technology: e-Paper, microcapsule electrophoresis
- Interface: SPI (3-wire and 4-wire)
- Viewing angle: >170°
- Grayscale: 2
- Power supply: 3.3 V (module), 3.3 V / 5 V (driver board)
- Standby current: <0.01 μA
- Power consumption during refresh: <100 mW
- Full refresh time: 27 s
- Partial refresh time: approx. 0.3 s
- E-paper module dimensions: 224.00 × 157.00 × 1.00 mm
- Driver board dimensions: 65.00 × 30.50 mm
- Active area: 215.52 × 143.68 mm
- Compatibility: Raspberry Pi, Jetson Nano, STM32, Arduino
- GPIO 40-pin header (Raspberry Pi)
- MX1.25 9PIN cable included
Package includes
- 10.2inch e-Paper HAT (G) ×1
- Mounting screws ×1
- MX1.25 9PIN cable ×1
1198902
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 10,2
- Resolution
- 960 x 640 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
