Picade Max Encoder - rotary encoder module
ID: 1198981
zł50.06
Tax included
zł40.70 tax excl.
A compact digital rotary encoder module designed for simple and intuitive volume control in arcade and DIY projects. Ready to use without soldering, simply connect it to the "Encoder" port on the Picade Max USB Audio board. In addition to volume control, the encoder offers a mute function when the knob is pressed. Pimoroni PIM770
Description

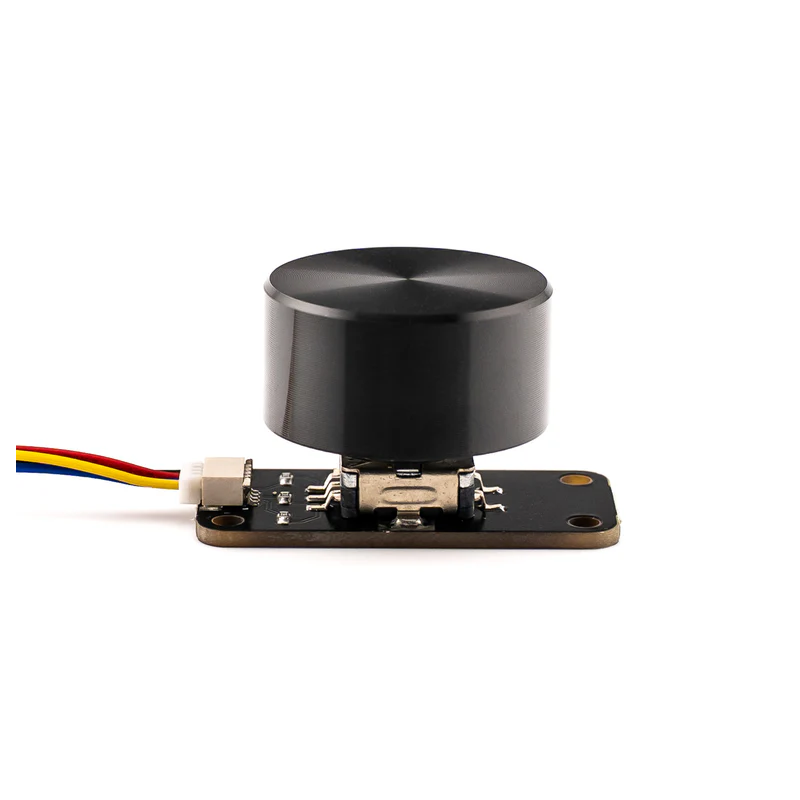

Picade Max Encoder is a compact module equipped with a digital rotary encoder, designed for convenient volume control in your home arcade cabinet or other DIY projects. The device is ready to use without any soldering — simply plug it into the "Encoder" port on the Picade Max USB Audio board. The encoder also functions as a mute button, allowing you to quickly toggle the sound on and off. The kit includes a sleek black aluminum knob, identical to the one used in Picade Max kits, ensuring a professional and polished finish. Thanks to the included 200 mm JST-SH cable, installation is quick and straightforward. Although it uses a JST-SH connector, the module does not rely on I2C communication. This makes it an ideal solution for those looking to expand their audio system or build a custom control interface. With a robust build and precise design, the module is well-suited for frequent use. Its compact size makes it easy to fit inside any project enclosure. Picade Max Encoder is a functional, stylish, and user-friendly solution for electronics enthusiasts and retro gaming fans alike.
Features
- Digital EC11 rotary encoder with push-button function
- Knob: black aluminum, matched to Picade Max kit
- Connector: JST-SH 4-pin (not compatible with Qwiic / STEMMA QT)
- Cable length: 200 mm
- Board dimensions: 18 x 38 mm
- Total height (assembled): approx. 22 mm
- Mounting hole spacing: M2.5, 32 x 12 mm
Kit contents
- Picade Max Encoder with EC11 digital rotary encoder
- Black aluminum knob
- JST-SH to JST-SH cable – 200 mm
