Magnetic encoder module with AS5600 system
ID: 580650
5906623458479
zł10.34
Tax included
zł8.41 tax excl.

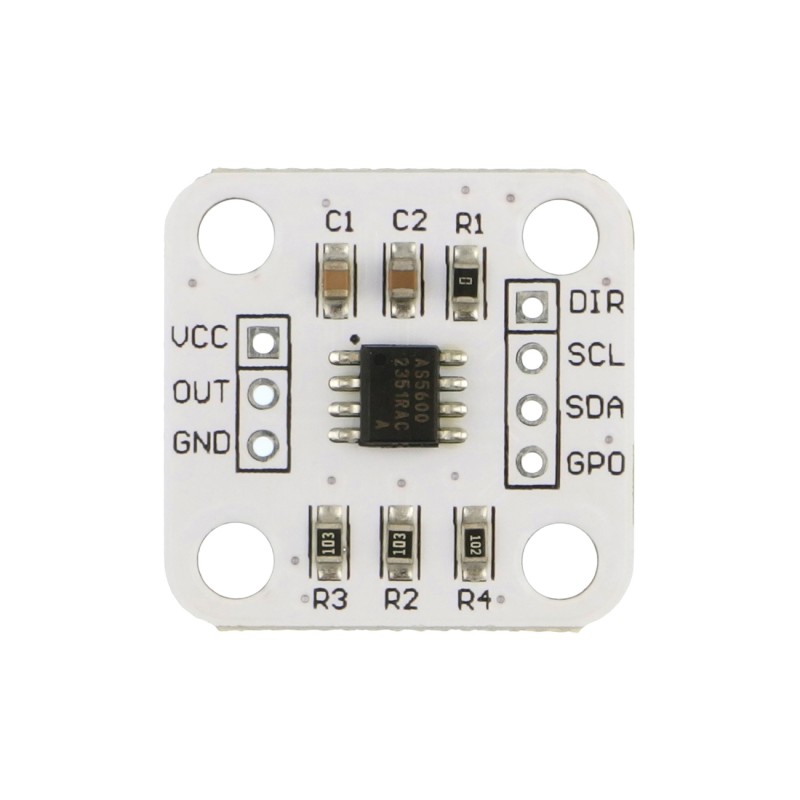

The module is equipped with an AS5600 magnetic encoder with a resolution of 12-bit. It allows for non-contact measurement of the angle of rotation. The module has an analog/PWM output and an I2C interface.
Description
The module is equipped with an AS5600 magnetic encoder with a resolution of 12-bit. It allows for non-contact measurement of the angle of rotation. The module has an analog/PWM output and an I2C interface. By default, the output is between 0 and 360 degrees. It is also possible to define a smaller output range by programming the zero angle (start position) and the maximum angle (stop position).
Features
- Non-contact angle measurement
- Simple, user programmable start and stop positions via the I²C interface
- Angle Range: The maximum programmable angle range is 18 ° to 360 °
- Output: analog/PWM
- Interface: I2C
- Output resolution: 12-bit DAC
- Supply voltage: 3.3 V or 5 V
- Input current: up to 100 mA
- Working temperature: from -40°C to 125°C
- Hole spacing: 17 mm
- Dimensions: 23 x 23 mm
Kit contains
- AS5600 magnetic encoder module
- Straight 7-pin goldpin connector
- Magnet
