ESP32-S3 development board with 2.8″ round touch display 480×480 - Waveshare 29086
ID: 1197479
zł182.25
Tax included
zł148.17 tax excl.
ESP32-S3-Touch-LCD-2.8C is an advanced development board with a high-resolution IPS display and touch support. High computing power, rich interface and sensor equipment, as well as support for Arduino and ESP-IDF environments make it a versatile tool for HMI projects, IoT devices, and data visualization systems. Ideal for applications requiring an interactive display with an intuitive touch interface.
Description

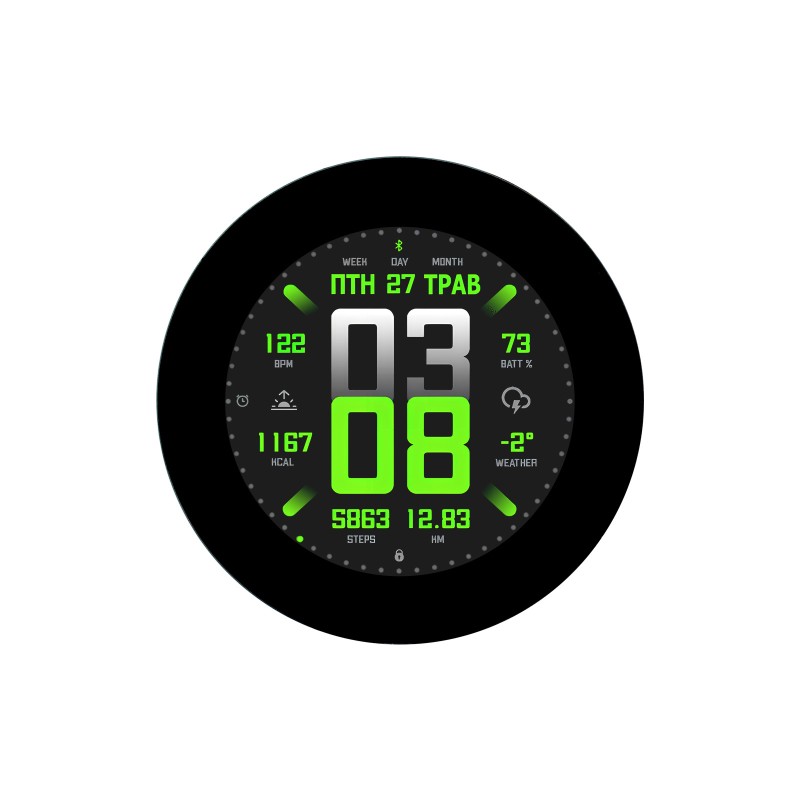

The ESP32-S3-Touch-LCD-2.8C development board is equipped with a round 2.8-inch display with a resolution of 480×480 pixels and a touch panel operated via an I2C interface with the GT911 controller. The device is based on the ESP32-S3R8 microcontroller with a dual-core Xtensa LX7 processor running up to 240 MHz, supporting Wi-Fi 802.11 b/g/n and Bluetooth 5 LE. The board includes 16 MB Flash and 8 MB PSRAM memory, a 6DOF sensor (QMI8658), an RTC clock (PCF85063), a TF card slot, a Li-Ion 3.7 V battery charging management system, and UART, I2C, and GPIO interfaces.
The integrated USB controller and automatic program download function enable convenient programming via USB Type-C. The device supports the ESP-IDF and Arduino IDE environments and has full SDK and documentation support.
Features
- Microcontroller: ESP32-S3R8: 32-bit, LX7, 2 cores, up to 240 MHz
- Memory: 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
- Display: IPS 2.8", 480×480, ST7701 driver, 160° viewing angle
- Touch: I2C interface, GT911 controller, interrupt support
- Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5 LE
- Sensors: 6-axis IMU QMI8658, RTC clock PCF85063
- TF card slot, Li-Ion 3.7 V battery charging system
- Interfaces: USB, UART, GPIO, I2C, expansion via 12PIN connector
- Programming: via USB-C, support for ESP-IDF and Arduino IDE
- Extras: buzzer, power and charge indicators, BOOT and RESET buttons
Included in the set
- ESP32-S3-Touch-LCD-2.8C x1
- SH1.0 12PIN cable (~100 mm) x1
- SH1.0 4PIN cable (~100 mm, 2 pcs) x1
