ESP32-S3 1.64” AMOLED Touch Display Development Board is a robust development platform for IoT, HMI, and smart device projects. Equipped with a high-contrast AMOLED display with a wide viewing angle, a rich set of peripherals, an accelerometer and gyroscope, as well as Wi-Fi and Bluetooth, it enables rapid development of modern interactive applications and portable devices.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

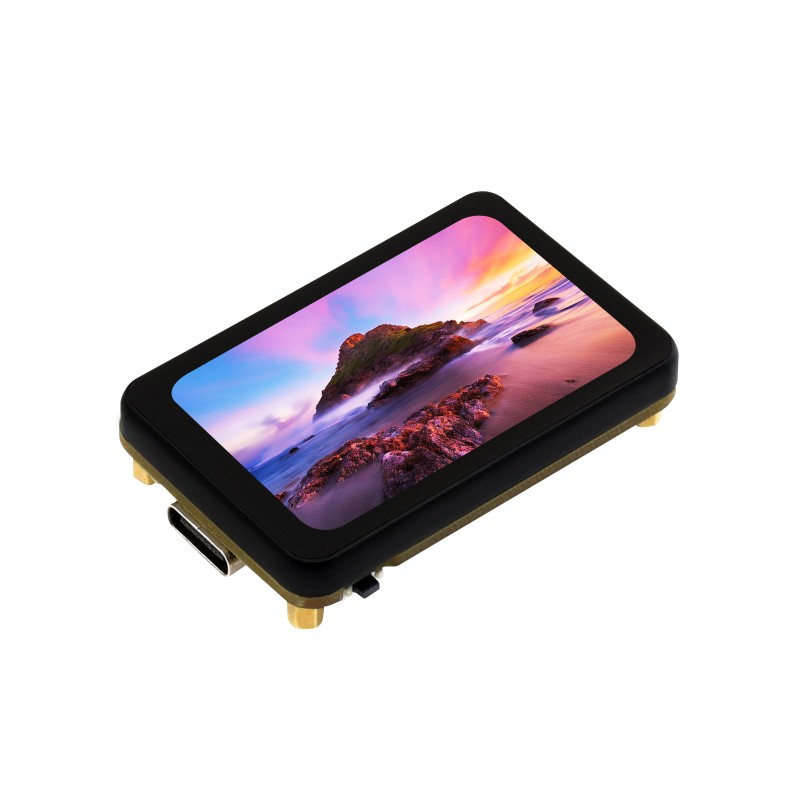

ESP32-S3 1.64inch AMOLED Touch Display Development Board is a compact and efficient development board equipped with a 1.64” AMOLED display with a resolution of 280×456 pixels and touch support. Built around the ESP32-S3R8 chip with a dual-core LX7 processor running at 240 MHz, integrated 2.4 GHz Wi-Fi and Bluetooth 5, it is well-suited for HMI applications and AIoT projects. It features a rich set of peripheral resources and a durable CNC metal frame enclosure.

Properties

  • Processor: Xtensa 32-bit LX7 dual-core, up to 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
  • Display: 1.64” AMOLED
  • Resolution: 280 × 456 pixels
  • Colors: 16.7M
  • Brightness: 350 cd/㎡
  • Contrast: 60000:1
  • Display driver: CO5300
  • Touch: capacitive touchscreen, FT3168 controller, I2C interface
  • Display interface: QSPI
  • Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE, Mesh)
  • Antenna: onboard ceramic + external antenna option (solderable resistor)
  • Sensors: QMI8658 6-axis IMU (3-axis accelerometer, 3-axis gyroscope)
  • Interfaces: USB Type-C, UART, I2C, TF card slot, MX1.25 3.7V Li-ion header
  • Battery: supports Li-ion charging/discharging
  • Buttons: RST, BOOT (programmable)
  • Construction: CNC metal frame, enhanced durability
  • Software support: ESP-IDF, Arduino IDE, LVGL
  • Dimensions: 44 × 29.12 × 9.6 mm

Included in the set

  • ESP32-S3-Touch-AMOLED-1.64 ×1
  • Pin headers 11-pin (2.54 mm) ×2
