ESP32-P4-WIFI6-POE-ETH is a high-performance Waveshare development board based on the ESP32-P4 and ESP32-C6 microcontrollers, designed for advanced HMI, edge computing, multimedia, industrial automation, and networked systems. It supports Wi-Fi 6, Bluetooth 5 LE, 100 Mbps Ethernet with PoE, and a rich set of I/O and multimedia interfaces. ESP32-P4-WIFI6-POE-ETH

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-P4-WIFI6-POE-ETH is designed as a versatile platform for developing modern embedded systems that require high computing performance, advanced communication interfaces, and reliable network connectivity.

At the core of the board is the ESP32-P4, featuring a 32-bit dual-core RISC-V processor clocked up to 360 MHz, supported by 32 MB PSRAM and 32 MB Flash memory. The chip includes multimedia accelerators such as an Image Signal Processor (ISP), JPEG codec, and H.264 encoder, enabling efficient visual and audio applications.


Wireless communication is handled by an additional ESP32-C6-MINI module, which provides Wi-Fi 6 (802.11ax) and Bluetooth 5 LE, communicating with the ESP32-P4 via the SDIO interface.

The board also features a 100 Mbps RJ45 Ethernet port with PoE support, enabling simultaneous power supply and data transmission using a single Ethernet cable.

A rich set of interfaces includes MIPI-DSI, MIPI-CSI, USB 2.0 OTG, I2S, SPI, I2C, UART, ADC, PWM, TWAI, and numerous GPIO pins.

Onboard components include a microphone, audio codec, amplifier, and speaker connector, enabling audio processing and voice interaction projects, including AI-based applications.

                                                                                                                      Onboard resources

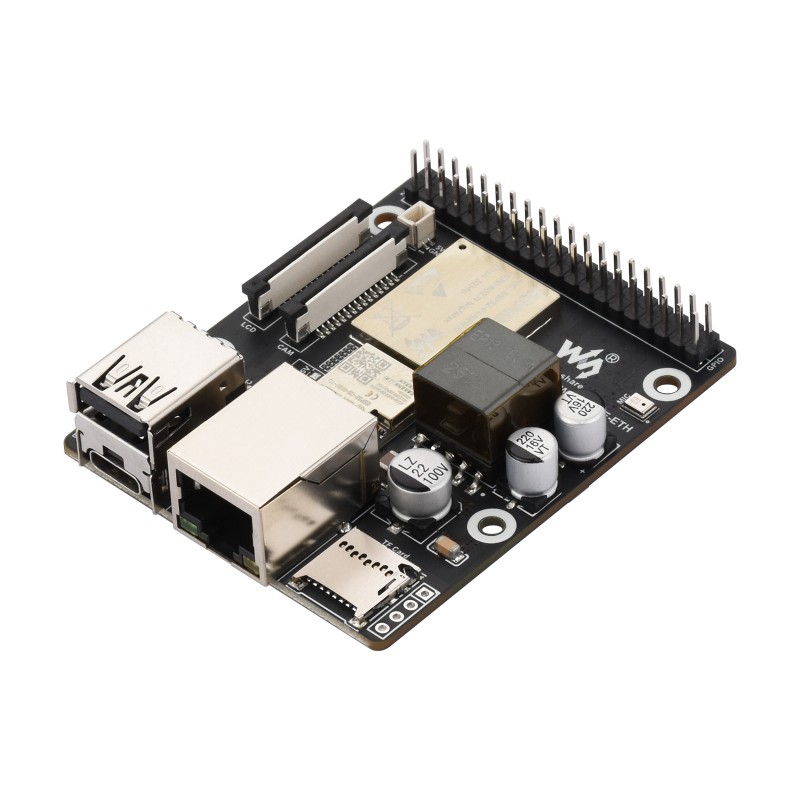

  1. ESP32-P4-Core - ESP32-P4NRW32, with 32MB Nor Flash
  2. ESP32-C6-MINI1-U-H8 module - SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4, onboard IPEX 3 connector for external antenna
  3. Display interface - MIPI-2lane
  4. Camera interface - MIPI-2lane
  5. 5V power supply header
  6. UART header SH1.0 4PIN - for program burning and debugging
  7. I2C header SH1.0 4PIN - for connecting external 12C devices
  8. Power indicator
  9. RST button
  10. Boot button - Press it when powering on or resetting to enter download mode
  11. Type-A and Type-C physical stacked design - Type-A as USB OTG 2.0 High Speed port; Type-C as the UART port, for power supply, program burning and debugging
  12. 100Mbps RJ45 Ethernet port - Supports PoE function
  13. TF card slot - SDIO 3.0 interface protocol
  14. ESP32-C6 UART pads
  15. Onboard microphone
  16. 40PIN header
  17. Audio codec chip, amplifier chip and MX1.25 speaker header - MX1.25 2P connector, supports 80 2W speaker
  18. IP101 - Ethernet chip

                                                                                                                     Pinout definition


Features

  • Microcontroller
    • Main MCU: ESP32-P4, 32-bit RISC-V, dual-core, up to 360 MHz
    • Wireless MCU: ESP32-C6-MINI (Wi-Fi 6, Bluetooth 5 LE)
  • Memory
    • Flash: 32 MB
    • PSRAM: 32 MB
  • Connectivity
    • Wi-Fi: Wi-Fi 6 (2.4 GHz, 802.11ax)
    • Bluetooth: Bluetooth 5 LE
    • Ethernet: RJ45 100 Mbps
    • PoE power supply: Yes
  • Multimedia Interfaces
    • Display: MIPI-DSI (2-lane)
    • Camera: MIPI-CSI (2-lane)
    • Multimedia features: ISP, JPEG codec, H.264 encoder
  • USB & Storage
    • USB: USB 2.0 OTG High Speed (Type-A), USB-UART (Type-C)
    • TF card slot: SDIO 3.0
  • Audio
    • Onboard microphone
    • Audio codec and amplifier
    • Speaker connector: MX1.25 2-pin
    • Speaker support: 8 Ω / 2 W
  • I/O and Peripherals
    • GPIO: 2×20-pin headers + programmable GPIOs
    • Interfaces: SPI, I2S, I2C, UART, ADC, PWM, MCPWM, RMT, TWAI
    • Buttons: BOOT, RESET
    • Power indicator LED
  • Security
    • Secure Boot
    • Flash encryption
    • TRNG
    • Cryptographic accelerators
    • Access control and privilege separation mechanisms
  • Applications
    • HMI systems
    • Edge computing
    • Multimedia applications
    • Industrial automation
    • Vision systems
    • IoT / AIoT

Kit includes

  • ESP32-P4-WIFI6-POE-ETH development board
  • 2.4 GHz external antenna
  • 8 Ω / 2 W speaker
  • SH1.0 4-pin cables (~150 mm) ×2
  • Mounting hardware (screws)
