Development kit with WiFi / Bluetooth module ESP32-WROVER
search
  • Development kit with WiFi / Bluetooth module ESP32-WROVER
  • Development kit with WiFi / Bluetooth module ESP32-WROVER (view from below)
ID: 575045
5906623473571
zł136.15
Tax included

zł110.69 tax excl.

Development board with WiFi / Bluetooth Espressif ESP32-WROVER module. The board is equipped with numerous peripheral systems, eg SD card slot, audio codec, a series of LEDs controlled by one line and a 9-axis IMU system. TTGO TAudio V1.5 ESP32-WROVER

6 weeks
On request



Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

ESP32-WROVER system located on the board provides WiFi connectivity (802.11 b / g / n / e / i) and Bluetooth (Bluetooth v4.2 BR / EDR and BLE). The board is equipped with numerous peripheral circuits, eg SD card slot, audio codec and audio socket, a series of LEDs controlled by one line and a 9-axis IMU MPU9250 system combining a gyroscope, accelerometer and magnetometer. The set has the shape of a circle and is small in size. It will be used in IoT projects or in smart clothing projects.

properties

  • Espressif ESP32-WROVER module
  • WiFi and Bluetooth communication
  • 4 MB Flash
  • 4 MB PSRAM
  • Lithium battery interface, 500 mA maximum charging current
  • MicroSD card slot, support for SD cards (SPI interface)
  • WM8978 audio codec
  • WS2812B RGB LEDs
  • 9-axis MPU9250 sensor (gyroscope, accelerometer, magnetometer)

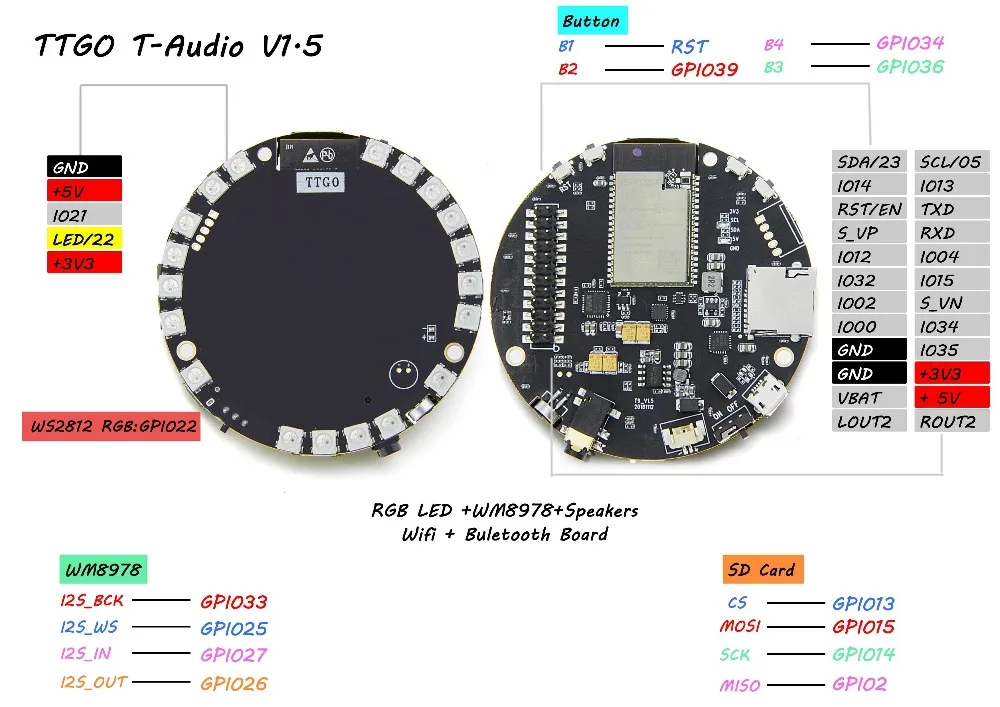

Arrangement of elements on the board and description of outputs

QQ20190104110154

575045
