This industrial network switch features eight Gigabit Ethernet (10/100/1000 Mbps) ports with IEEE 802.3af/at PoE support, delivering up to 30W of power per port. The device delivers high performance with 16 Gbps throughput, 1 Mbps buffering, and a 4K MAC table, enabling stable data transmission in industrial and surveillance systems. A wide 9.6-60V DC power supply range, along with surge and EMC protection, ensures reliable operation in harsh environments. USR-ISG1008P

24h
Available
Available quantity: 2
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

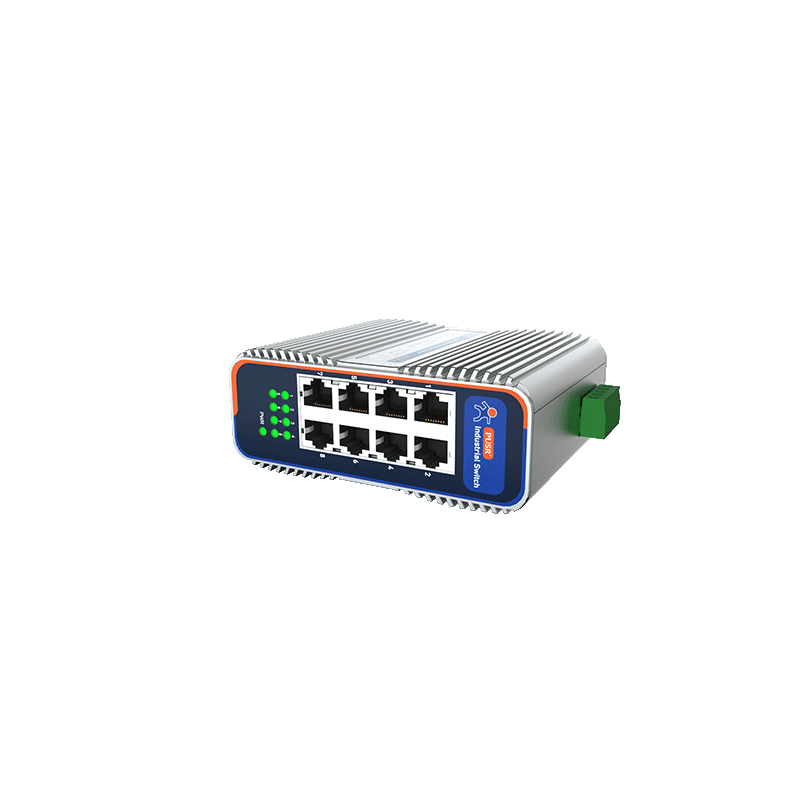

USR-ISB1008P Industrial Switch (PoE) is an advanced networking device equipped with 8 Gigabit Ethernet 10/100/1000 Mbps RJ45 ports, designed for building efficient and interference-resistant industrial networks. With support for IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards, the switch ensures stable data transmission and high compatibility with a wide range of network devices. A 16 Gb/s switching capacity, 1 Mbit packet buffer, and 4K MAC address table enable smooth real-time data handling, which is particularly important in video surveillance systems, industrial automation, and smart installations.


The PoE (Power over Ethernet) version allows simultaneous data transmission and power delivery to end devices such as IP cameras, access points, or IoT terminals via a single Ethernet cable. The device supports IEEE 802.3af/at standards, providing up to 30 W per port, significantly simplifying installation and reducing cabling costs. The switch is designed for operation in harsh environments. A wide power input range of 9.6 to 60 V DC, along with protection against reverse polarity, overload, and surges (up to 6 kV), ensures stable performance even in unstable power conditions. Additionally, the device meets electromagnetic compatibility (EMC) requirements, increasing its resistance to electrical interference.

With DIN rail mounting capability and compact dimensions, the USR-ISB1008P is ideal for control cabinets and industrial installations with limited space. It is a reliable solution for systems requiring continuous operation, high performance, and PoE device integration.

Features

  • 8 × 10/100/1000 Mbps RJ45 ports, auto MDI/MDIX
  • PoE support: IEEE 802.3af/at
  • Maximum PoE power per port: up to 30 W
  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards
  • Switching capacity: 16 Gb/s
  • Packet buffer: 1 Mbit
  • MAC address table: 4K
  • Power supply: DC 9.6 to 60 V, 5-pin terminal
  • Power consumption: <5 W (without PoE load)
  • Reverse polarity and overload protection
  • Surge protection: up to 6 kV
  • Aluminum enclosure, IP40, fanless design
  • Mounting: DIN rail or desktop
  • EMC immunity: ESD ±8 kV (air), ±6 kV (contact), EFT, surge (Level 3)
  • Dimensions: 118 × 96 × 47.5 mm
  • Weight: 430 g
