A development board based on a dual-core RISC-V 400 MHz processor, supporting AI instructions, MIPI-CSI/DSI interfaces, and enabling image and voice processing. With an integrated ESP32-C6 module, it offers Wi-Fi 6 and Bluetooth 5 connectivity, as well as a USB OTG interface, microphone, TF slot, and 32 MB PSRAM for advanced IoT and AI applications. Its compact size and rich features make it ideal for smart cameras, interactive displays, and robotics. DFRobot DFR1172

4 weeks
Awaiting delivery
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

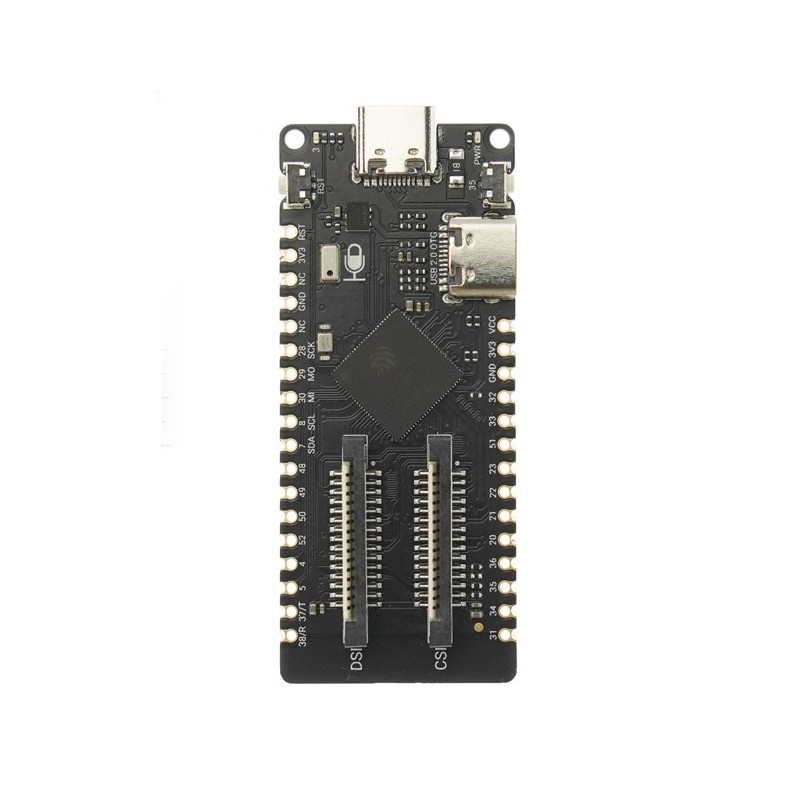

The FireBeetle 2 ESP32-P4 is an advanced development board based on the ESP32-P4R32 chip, designed for demanding AI projects, image processing, and IoT devices. Featuring a dual-core 400MHz RISC-V processor, 768KB L2MEM, and 32MB PSRAM, it provides the performance needed for complex computational tasks such as image processing and voice recognition. The board supports AI instructions and an FPU unit, making it capable of running lightweight machine learning models such as TensorFlow Lite. With support for MIPI-CSI and MIPI-DSI interfaces, it can capture and display images up to 1080p@30fps, making it ideal for smart cameras, interactive home displays, or digital photo frames.


An integrated ESP32-C6 module provides Wi-Fi 6 and Bluetooth 5 connectivity, expanding its communication capabilities and integration with networks. The board offers a wide range of peripheral interfaces in a compact 25.4x60mm footprint. It features a USB OTG 2.0 port for fast communication with USB devices, a built-in microphone for sound input, and a TF card slot for large-capacity data storage. Thanks to its powerful capabilities, the FireBeetle 2 ESP32-P4 is ideal for applications such as smart homes, AI robotics, facial recognition, and surveillance systems.

Features

  • Main processor: 32-bit RISC-V Dual-core 400 MHz
  • Auxiliary processor: 32-bit RISC-V Single-core 40 MHz
  • FPU unit and AI instruction extensions
  • Memory: 768KB L2MEM, 32MB PSRAM, 16MB FLASH
  • Image display: MIPI-DSI (up to 1080p@30fps or 720p@88fps)
  • Image capture: MIPI-CSI (up to 1080p@30fps or 720p@88fps)
  • Integrated ESP32-C6 module with Wi-Fi 6 and Bluetooth 5
  • USB OTG 2.0, MEMS microphone, microSD card slot
  • Interfaces:
    • Digital I/O: 24
    • UART: 5 + 1 (LP)
    • I2C: 2 + 1 (LP), I3C: 1
    • SPI: 2 + 1 (LP), I2S: 3 + 1 (LP)
    • SDIO2.0: 1, USB OTG 2.0: 1
    • MIPI-CSI and MIPI-DSI: 2 channels each
    • 4-channel TOUCH, 8-channel PWM LED controller
    • IR: 5 transmit channels, 5 receive channels
    • 1 × 12-bit SAR ADC, 7 channels
  • Operating voltage: 3.3V
  • USB Type-C input: 5V DC
  • VIN power supply: 5V DC
  • Operating temperature: -10°C to 60°C
  • Module dimensions: 25.4 x 60 mm

Kit contains

  • FireBeetle 2 Board ESP32-P4
  • 2 x 20-pin 2.54mm header connectors
