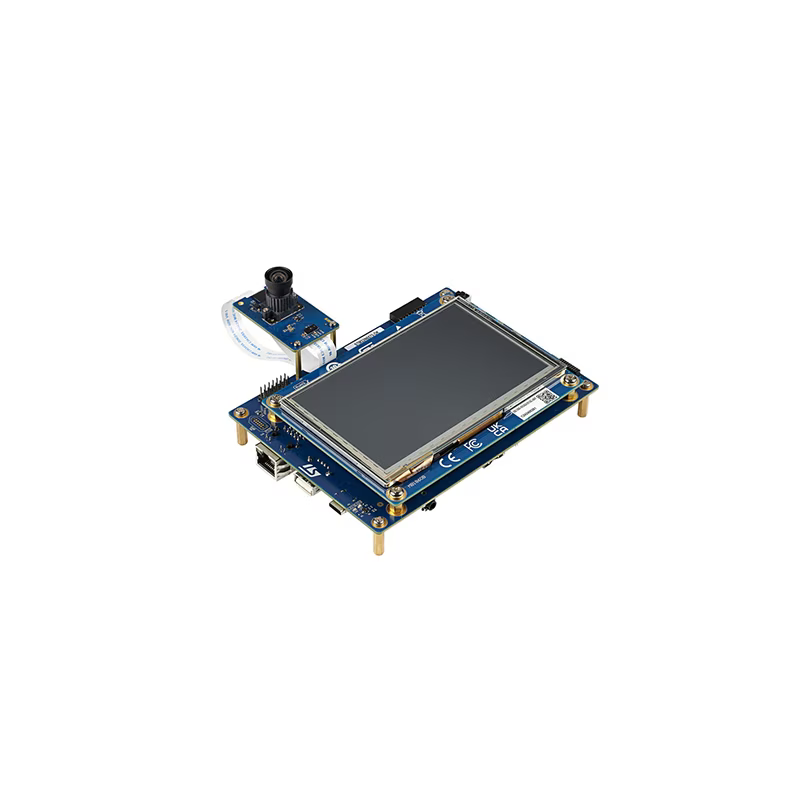

STM32N6570-DK – Discovery Kit with STM32N657X0 Microcontroller
ID: 1195740
5902186308725
zł1,174.13
Tax included
zł954.58 tax excl.
STM32N6570-DK Discovery is an advanced evaluation platform for the STM32N657X0 microcontroller, combining a high-performance Cortex-M55 core with AI acceleration, 2.5D graphics, and multimedia support. With integrated communication interfaces, 1 Gb TSN Ethernet, USB-C Power Delivery, audio, and expansion connectors, the kit is ideal for testing IoT, edge AI, communication, and multimedia applications.
Description
The STM32N6570-DK Discovery kit is a complete evaluation and development platform for the STM32N657X0H3Q microcontroller based on the Arm® Cortex®-M55 core. The device offers advanced multimedia and artificial intelligence features, such as the ST Neural-ART accelerator, H.264 hardware encoder, and NeoChrom 2.5D GPU, as well as a large 4.2 MB SRAM memory.
The board is equipped with a wide range of interfaces, including 1 Gb Ethernet with TSN, USB 2.0 (HS/FS, with OTG and USB-C Power Delivery), Octo-SPI Flash, Hexadeca-SPI PSRAM, audio interfaces with codec and MEMS microphone, as well as Arduino® Uno R3 and STMod+ expansion connectors. The integrated STLINK-V3EC debugger simplifies programming and debugging.
Properties
- Microcontroller: STM32N657X0H3Q, Arm Cortex-M55
- ST Neural-ART Accelerator (AI)
- NeoChrom 2.5D GPU
- H.264 encoder
- 4.2 MB SRAM
- VFBGA264 package
- Display: 5" LCD screen with capacitive touch panel
- 1 Gbit Octo-SPI Flash
- 256 Mbit Hexadeca-SPI PSRAM
- USB Type-C (USB 2.0 HS, Dual-Role-Power – DRP, OTG, UCPD)
- USB Type-A (USB 2.0 HS, Host, max. 0.5 A)
- Ethernet: 1 Gbit with TSN (IEEE-802.3-2002)
- SAI codec
- Built-in MEMS digital microphone
- Stereo jack with analog microphone input
- Audio MEMS expansion connector
- 4 × I²C
- 2 × I3C
- 6 × SPI (4 × with I²S support)
- 2 × SAI
- 5 × USART
- 5 × UART (ISO78916, LIN, IrDA, up to 12.5 Mbit/s)
- 1 × LPUART
- 2 × SDMMC
- 3 × CAN FD with TTCAN
- JTAG, SWD, Embedded Trace Macrocell (ETM)
- USB Type-C
- USB Type-A
- Ethernet RJ45
- Camera
- microSD™
- LCD
- ARDUINO® Uno R3
- STMod+
- 2 × user LEDs
- User, tamper, and reset buttons
- Integrated STLINK-V3EC debugger/programmer (Virtual COM, debug port)
- Support for STM32CubeN6 MCU Package
- Examples and libraries provided by STMicroelectronics
- IDE compatibility: STM32CubeIDE, IAR Embedded Workbench®, MDK-ARM
- Configuration support with STM32CubeMonitor-UCPD
