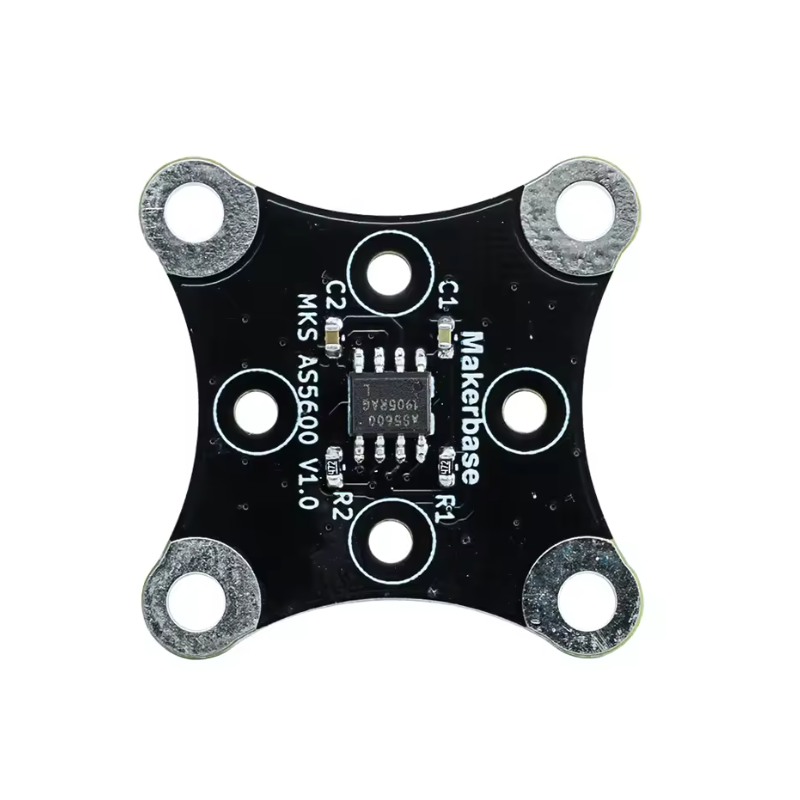

Makerbase MKS AS5600 - magnetic encoder
ID: 1187438
zł50.28
Tax included
zł40.88 tax excl.
A high-precision 12-bit magnetic encoder that provides accurate angle measurement from 0 to 360°. It supports I2C and PWM interfaces for easy integration with microcontrollers and control systems. Powered by 5V and featuring 1024-bit analog resolution, it's ideal for projects requiring smooth and stable operation. Makerbase MKS AS5600
Description
Makerbase MKS AS5600 is a precise magnetic encoder designed for motor control systems such as SimpleFOC. With 12-bit resolution, it provides high measurement accuracy over the full range of 0° to 360°, making it an excellent choice for projects requiring smooth and stable control. The device operates at a 5 V supply voltage and supports I2C and PWM interfaces, allowing easy integration with microcontrollers and control platforms. A resolution of 1024 in analog mode enables detailed position analysis, ensuring high repeatability of measurements. Its compact board size allows installation even in limited spaces. Thanks to its ease of use and included accessories, the kit is ideal for both hobbyists and professionals developing projects in robotics, automation, and BLDC motor control.
Features
- Supply voltage: 5 V
- Communication interface: I2C, PWM
- Measurement range: 0° to 360°
- Resolution: 1024 (analog), 12-bit
- Dimensions: 41 × 41 mm
Kit contains
- MKS AS5600 V1.0 encoder
- 3-pin cable
- 6-pin cable
- Radial magnet 6 × 2.5 mm
1187438
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like

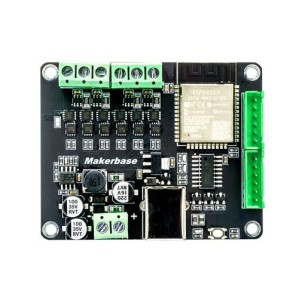

A BLDC motor control board with a Field-Oriented Control algorithm, based on the ESP32 WROOM 32D module. It supports 12-24V DC, two channels with a peak current of 12A, and dual-channel real-time current sensing with a range of ±33A. Support for Hall, SPI, I²C, ABI, and analog sensors provides flexible integration in projects such as robotics, balancing vehicles, and gimbals. Makerbase MKS ESP32 FOC V1.0
zł129.97
24h
Available quantity: 3
Available

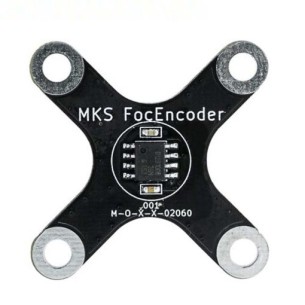

The TLE5012B precision magnetic encoder with sensor offers angle measurement in the 0–360° range with a resolution of 4096 CPR. Its compact design and low current consumption of 14 mA make it ideal for projects requiring energy efficiency and reliability. It is compatible with motor control systems such as ODrive, as well as robotics and industrial applications. Makerbase MKS TLE5012B
