Makerbase MKS TLE5012B - magnetic encoder
ID: 1187440
zł70.44
Tax included
zł57.27 tax excl.
The TLE5012B precision magnetic encoder with sensor offers angle measurement in the 0–360° range with a resolution of 4096 CPR. Its compact design and low current consumption of 14 mA make it ideal for projects requiring energy efficiency and reliability. It is compatible with motor control systems such as ODrive, as well as robotics and industrial applications. Makerbase MKS TLE5012B
Description
The Makerbase MKS TLE5012B is a modern magnetic encoder designed as a replacement for popular models such as AS5047 or AMT102. It provides a full angular measurement range from 0 to 360°, enabling precise monitoring of position and rotational speed in a wide range of applications. With a resolution of 4096 CPR, the encoder delivers outstanding accuracy and measurement stability, making it an excellent choice for motor control systems, including projects based on ODrive. Powered by 5 V and consuming only 14 mA, it is energy-efficient and easy to integrate with existing systems. Its compact dimensions allow installation in confined spaces, while the robust design ensures long-term reliability. Thanks to the use of the TLE5012B sensor, the encoder stands out with high resistance to interference, stable readings, and a broad range of applications—from robotics and electric drives to industrial solutions. The kit includes all the necessary components for quick setup, including a connection cable and magnet.
Features
- Supply voltage: 5 V
- Current consumption: 14 mA
- Measurement range: 0–360°
- Resolution: 4096 CPR
- Sensor: TLE5012B
- Applications: ODrive, motor control, robotics, industry
- Dimensions: 31 × 31 mm
Kit contains
- TLE5012B magnetic encoder
- 300 mm cable
- Radial magnet 6 × 2.5 mm
- 4 × ABS spacers
1187440
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
An advanced speed controller designed to power three-phase brushless motors in various applications, such as driving robots, walking robots or gimbals. Supports input voltage range from 12V to 56V. Maximum constant current is 60A. Makerbase ODrive-S
zł284.79
Delivery date unknown
No product available!
The ODrive3.6 ESC speed controller is designed to power two three-phase brushless motors in various applications, such as driving robots, walking robots or gimbals. Supports input voltage range from 12 V to 56 V and maximum current up to 60 A. Makerbase ODrive3.6
zł414.52
24h
Available quantity: 1
Available
Set with ODrive3.6 ESC speed controller and MKS X2212 BLDC motor. The controller is designed to power two three-phase brushless motors in various applications, such as driving robots, walking robots or gimbals. Supports input voltage range from 12 V to 56 V and maximum current up to 60 A. Makerbase ODrive3.6 Kit
zł637.28
24h
Available quantity: 2
Available
Other products in the same category (15)
TMAG5273 Hall sensor module dedicated to detecting the presence, strength and direction of a magnetic field in three dimensions. It uses communication via the I2C interface and Qwiic connectors. SparkFun SEN-23880
zł34.86
24h
Available quantity: 2
Available
Module with hall sensor A3144, analog and digital output from comparator, RoHS
zł3.01
24h
Available quantity: 23
Available
The DRV5032 Hall Effect Magnetic Field Detection Module is an energy-efficient module for IoT projects, positioning systems, and battery-powered devices. With its digital output, compact design, and wide supply voltage range (1.65 to 5.5 V), it can be easily integrated into a variety of applications, offering magnet detection without the need for continuous power consumption. Adafruit 6051
zł32.94
24h
Available quantity: 2
Available
Module with a matrix of 64 Hall sensors, which enables the conversion of magnetic fields into a visual spectrum. SparkFun SPX-14652
zł1,416.20
3 weeks
No product available!
The compact KY-003 Hall sensor module is capable of detecting magnetic fields, making it ideal for measuring rotational speeds and for automation and robotics applications.
zł2.15
24h
Available quantity: 3
Available
Hall sensor module. It has a digital output on the XH2.54 connector
zł8.82
4 weeks
No product available!
The module with A3244 Hall sensor and comparator allows you to detect the presence of a magnetic field. It can be used for applications such as rotation detection, position monitoring and alarm systems
zł2.03
4 weeks
No product available!
Module with three Hall sensors A3144E, which react to the failure of the magnet. It is powered with 5 V and has a digital output on the Grove connector. M5Stack U084
zł34.90
24h
Available quantity: 3
Available
HSTS016L Hall Sensor. Enables measurement of high AC and DC currents up to 20 A. modHSTS016L
zł66.37
24h
Available quantity: 1
Available
The Hall sensor module allows magnetic field detection, can be used to measure angle of rotation, displacement, mechanical vibrations, etc. The module has a connector in accordance with the Grove standard. Seeed studio 101020046
zł37.11
24h
Available quantity: 1
Available
Module with Hall sensor, allows for magnetic field detection, can be used to measure angle of rotation, displacement, mechanical vibrations, etc. The module has a connector in accordance with the Gravity standard. DFRobot SEN0185
zł30.73
4 weeks
No product available!

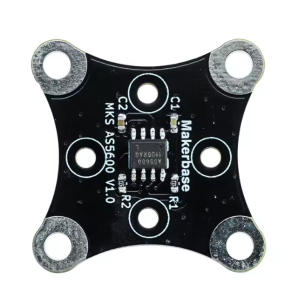

A high-precision 12-bit magnetic encoder that provides accurate angle measurement from 0 to 360°. It supports I2C and PWM interfaces for easy integration with microcontrollers and control systems. Powered by 5V and featuring 1024-bit analog resolution, it\'s ideal for projects requiring smooth and stable operation. Makerbase MKS AS5600
