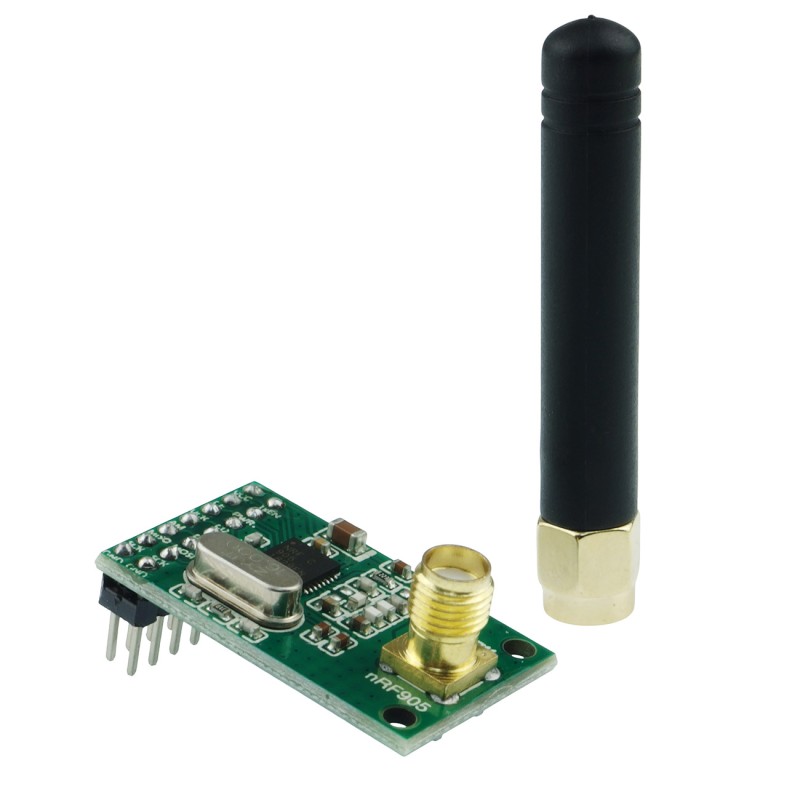

modNRF905 – nRF905 RF module 433/868/915 MHz with antenna
ID: 1193163
5902186306547
zł19.73
Tax included
zł16.04 tax excl.
modNRF905 is a versatile RF transceiver module operating in three ISM bands, ideal for remote communication between devices in IoT systems, automation, and remote control. With low power consumption, fast channel switching, and an included antenna, it provides stable and energy-efficient wireless connections.
Description
The modNRF905 is a wireless communication module based on the nRF905 chip, operating as a transceiver in the 433 MHz, 868 MHz, and 915 MHz ISM bands. It supports bidirectional data transmission with a maximum data rate of 76.8 kbps and low power consumption: 30 μA in standby, 12 mA in receive mode, and 20 mA in transmit mode. An integrated antenna provides extended range and stable signal. With fast channel switching (<650 μs) and GFSK modulation, the module is suitable for use in microcontroller systems, remote controls, industrial and home automation. It complies with ETSI/FCC standards and operates across a wide temperature range.
Features
- Chip: nRF905
- Function: transceiver (TX/RX)
- Frequency bands: 433 MHz, 868 MHz, 915 MHz
- Modulation: GFSK
- Supply voltage: 2–3.6 V
- Data rate: up to 76.8 kbps
- Power consumption: 30 μA (standby), 12 mA (RX), 20 mA (TX)
- Programmable output power: up to +10 dBm
- Channel switching time: <650 μs
- Operating temperature: –40 °C to +85 °C
- Compliance: ETSI, FCC
- Included: integrated antenna
