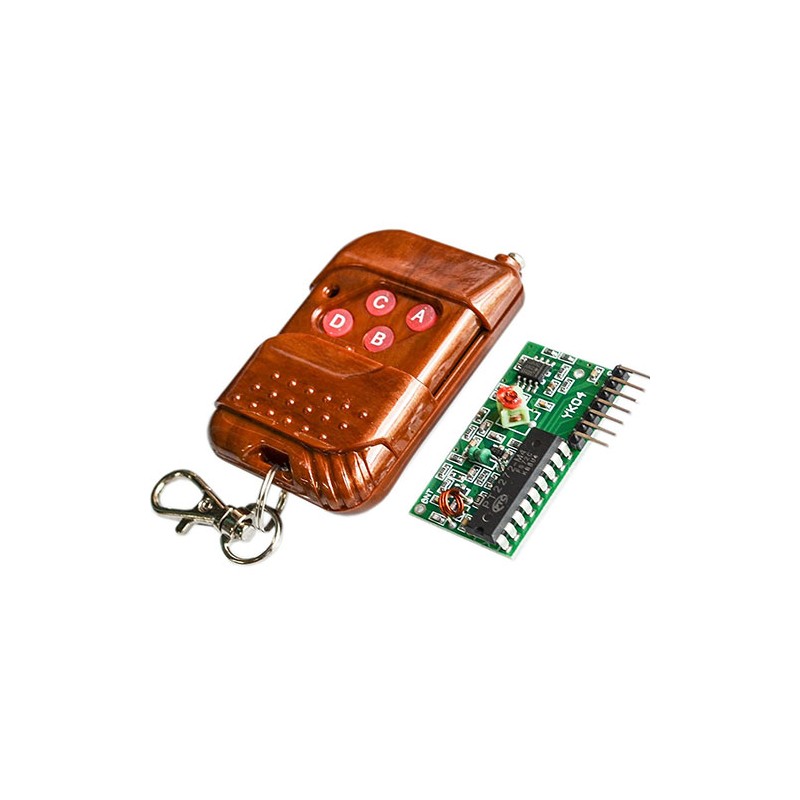

Four-channel 433 MHz radio module + remote control
ID: 1197531
5902186308220
zł27.66
Tax included
zł22.49 tax excl.
The module enables remote control of four independent devices using the 433 MHz band. Simple configuration of operating modes and the ability to tune the receiver make the set suitable for automation, lighting systems, and remote control of devices.
Description
Four-channel wireless control set consisting of a 433 MHz receiver and a remote control with four buttons. The module uses OOK amplitude modulation and fixed code compatible with PT2262/2272 systems. The M4 (inching) operating mode allows maintaining the output signal only while holding the button, with the option to change the configuration to monostable or bistable mode via on-board settings. The receiver is based on a super-regenerative circuit with LC oscillation, equipped with an amplification path and a signal decoder that generates a high-level output signal. The design facilitates frequency tuning, and the four separate output channels allow controlling multiple devices in home automation applications, modeling, and remote control systems.
Properties
- operating frequency: 433 MHz
- modulation: OOK (On-Off Keying)
- coding system: fixed code PT2262/2272
- operating mode: M4 (momentary – inching), configurable to interlock or monostable
- receiver sensitivity: −105 dBm
- operating temperature: −10 °C to +70 °C
- range in open space: depends on the remote control and environmental conditions
- outputs: 4 channels (high logic when activated)
- easy frequency tuning capability
Set includes
- 433 MHz receiver module (4-channel)
- remote control with 4 buttons
1197531
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
