ID: 562120
5906623455430
zł5.63
Tax included

zł4.58 tax excl.

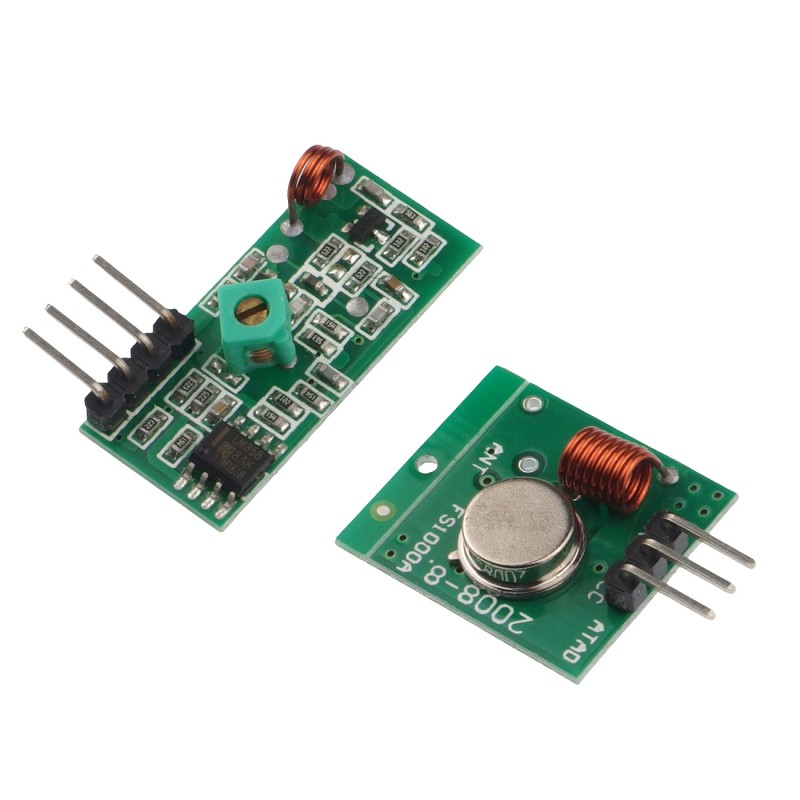

The FS1000A transmitter and the MX-RM-5V receiver enable communication in the ISM band; they are easy to use, do not require advanced bus control and have very small dimensions. Especially recommended for work with Arduino and STM32

24h
Available
Available quantity: 56

Description

Radio modules, allowing communication in the ISM band; they are easy to use, do not require advanced bus control and have very small dimensions. Especially recommended for work with Arduino and STM32

properties

  • Transmitter (FS1000A):
    • Operating voltage: 3.3-12 V
    • Power consumption: max. 45 mA
    • Carrier frequency: 433 MHz
    • Modulation: ASK / OOK
    • Power: 10 mW
    • TTL interface
    • The high state on the ATAD line activates the carrier generation
    • Dimensions without connector: 19 x 20 mm
  • Receiver (MX-RM-5V):
    • Operating voltage: max. 5th
    • Power consumption: ~ 6 mA
    • TTL interface
    • Dimensions without connector: 31 x 14 mm
  • Range up to 150 m

Included

  • ISM FS1000A transmitter for 433 MHz band
  • MX-RM-5V ISM receiver for 433 MHz band
