An 8-channel LoRaWAN gateway designed for indoor IoT installations, based on the Semtech SX1302 chip and the MediaTek MT7628 processor. It provides a communication range of up to 10 km and supports the EU868 and US915 bands, enabling simultaneous operation with multiple end devices. The gateway offers Wi-Fi, Ethernet, Bluetooth, and optional 4G connectivity and is compatible with TTN and ChirpStack platforms. Elecrow ThinkNode G1

24h
Available
Available quantity: 2

Description

ThinkNode G1 Indoor 8 Channels LoRaWAN Gateway is an advanced indoor LoRaWAN gateway designed by Elecrow for reliable communication in IoT projects. The device is built around the high-performance Semtech SX1302 baseband chipset and a MediaTek MT7628 processor, ensuring stable operation and high data throughput. The gateway supports 8 LoRaWAN channels, enabling simultaneous communication with multiple end nodes. ThinkNode G1 is fully compatible with popular network servers such as The Things Network (TTN) and ChirpStack. Thanks to its built-in network server functionality, it offers a true plug-and-play solution that significantly simplifies the deployment of LoRaWAN infrastructure.


The device supports multiple connectivity options, including Wi-Fi, Ethernet, Bluetooth, and optional 4G. The LoRaWAN communication range is 5 to 10 km, allowing use in a wide variety of environments. The gateway operates in the EU868 and US915 frequency bands, meeting international standards. A user-friendly web interface and cloud tools enable quick configuration and convenient device management. ThinkNode G1 is well suited for smart buildings, smart cities, agriculture, industrial applications, and environmental monitoring systems. Its robust enclosure and wide operating temperature range make it a reliable component of IoT infrastructure. It is an ideal solution for users looking for a powerful, flexible, and easy-to-use LoRaWAN gateway.

Features

  • Indoor LoRaWAN gateway, 8 channels
  • LoRa chipset: Semtech SX1302
  • Processor: MediaTek MT7628N, MIPS24KEc @ 580 MHz
  • RAM: 128 MB DDR2
  • Flash memory: 32 MB NOR
  • Frequency bands: EU868 / US915 (815–960 MHz)
  • LoRaWAN range: 5–10 km
  • Connectivity: Wi-Fi 802.11 b/g/n, Ethernet 10/100, Bluetooth 5.0, optional 4G
  • Transmit power: up to 26 dBm
  • Receiver sensitivity: down to -139 dBm
  • 3 dBi antenna
  • Configuration: web interface
  • Power supply: 12 V DC / 2 A

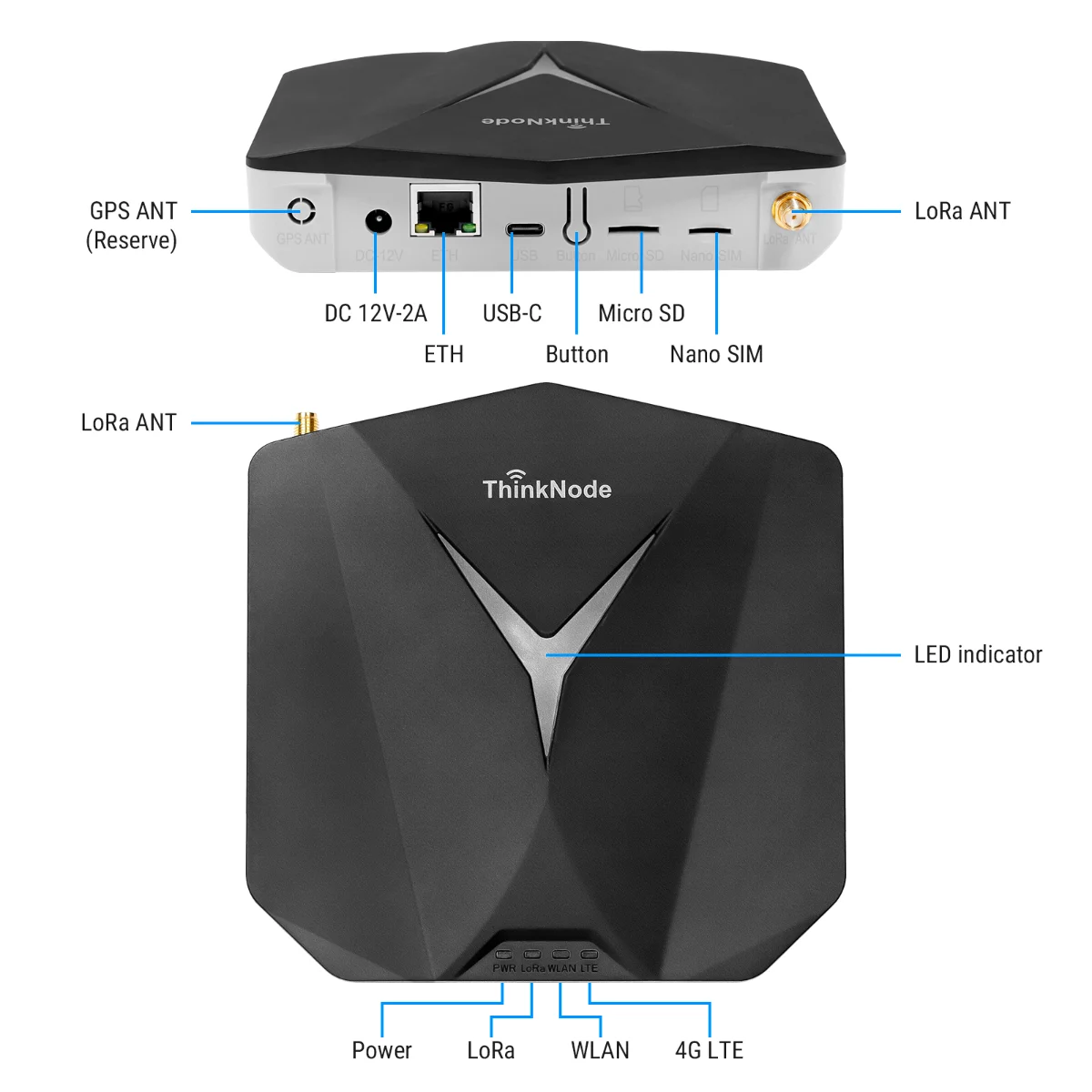

  • Interfaces: RJ45, USB Type-C, microSD, Nano SIM, RP-SMA (LoRa/GPS)
  • Operating temperature: -20°C to 55°C
  • Dimensions: 140 × 140 × 38 mm

Kit contains

  • ThinkNode G1 LoRaWAN Indoor Gateway
  • 12 V / 2 A power supply
  • 3 dBi LoRa antenna
  • User manual
