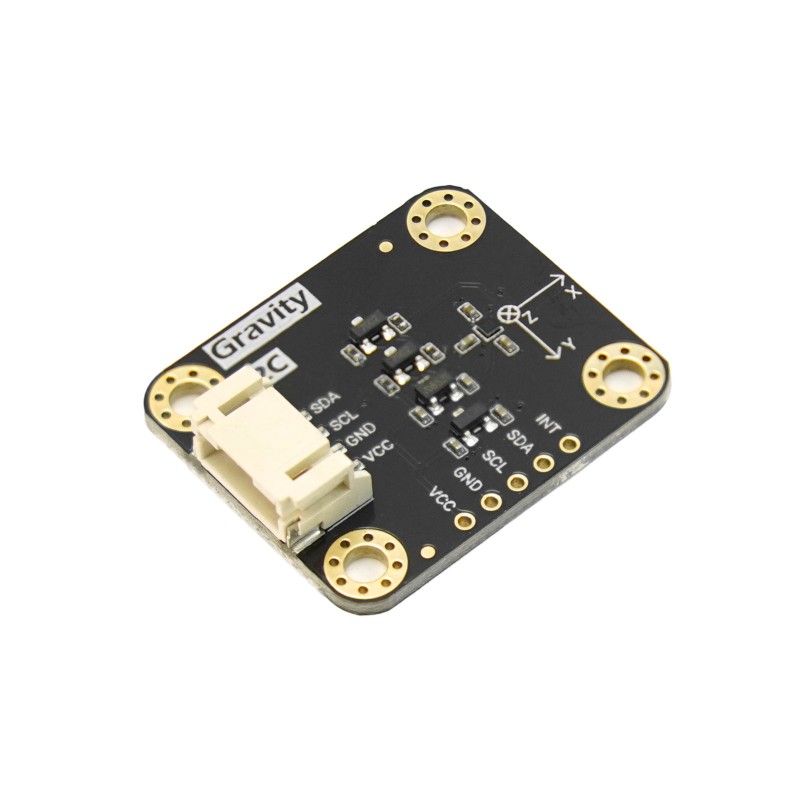

Gravity: BMM350 Triple-Axis Magnetometer - BMM350 Magnetometer Module
ID: 1196956
5902186309104
zł40.69
Tax included
zł33.08 tax excl.
Precise 3-axis compass based on FlipCore and TMR technology, offering magnetic field measurement in the range of ±2000μT without the need for calibration. With I3C support, sampling rate up to 400 Hz and Field Shock Recovery function, it is perfect for navigation systems, AR/VR, drones and autonomous vehicles. DFRobot SEN0619
Description
The DFRobot Gravity: BMM350 Geomagnetic Sensor is an advanced 3-axis sensor designed for precise magnetic field and spatial orientation measurements. It utilizes Bosch’s FlipCore technology, offering high accuracy without the need for calibration. The sensor is backward compatible with the BMM150 series, while delivering improved performance and lower power consumption. A key upgrade is the support for I3C communication, enabling faster data transfer and simplified connections. Featuring TMR (Tunnel Magnetoresistance) technology and a Field Shock Recovery function, the sensor maintains stable operation even in magnetically disturbed environments. With a sampling frequency of up to 400 Hz, it’s ideal for applications such as geomagnetic navigation, drones, AR/VR systems, and AGV vehicles. The sensor can measure magnetic fields within ±2000μT across all three axes, making it suitable for mobile, educational, and industrial projects.
Features
- Operating Voltage: 3.3 to 5V DC
- Current Consumption: 200μA (normal mode @100Hz)
- Measurement Range: ±2000μT (each axis)
- Zero-field Offset: ±25μT
- Sampling Frequency: up to 400 Hz
- Communication Protocol: I2C / I3C
- Startup Time: 2.5ms
- Operating Temperature: -40 to +85°C
- Dimensions: 28 x 32 mm
Kit contains
- Gravity: BMM350 Triple-Axis Magnetometer
- Gravity UART/I2C Cable
- XH2.54-10pin Connector
1196956
Data sheet
- Interface
- I2C
- Type of sensor
- BMM350
- Power supply voltage
- 3,3 - 5 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
