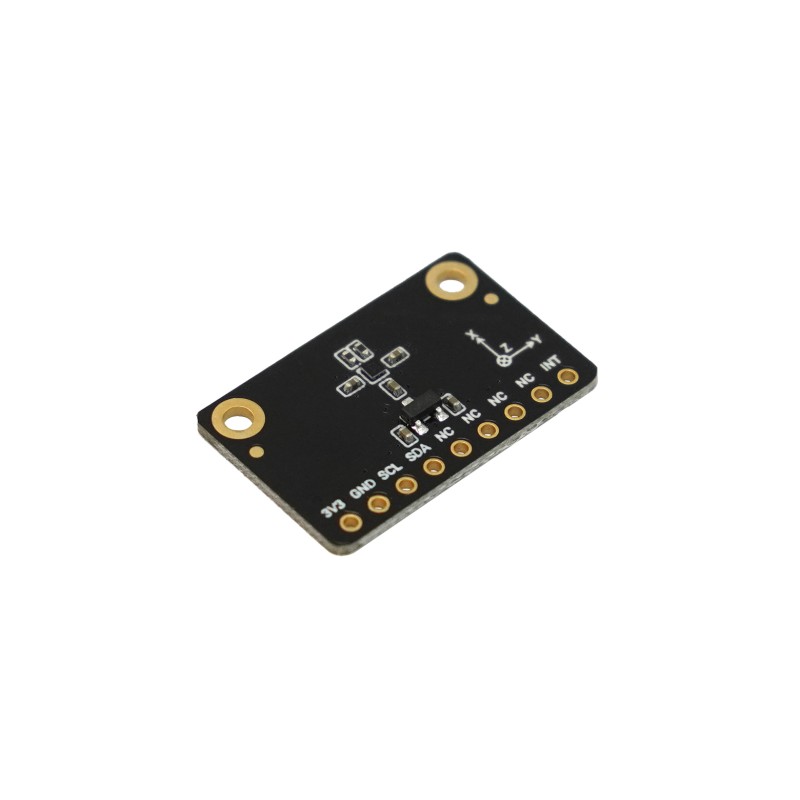

Fermion: BMM350 Triple-Axis Magnetometer - BMM350 Magnetometer Module
ID: 1196950
5902186300880
zł30.52
Tax included
zł24.81 tax excl.
Precise, 3-axis geomagnetic sensor based on FlipCore and TMR technology, offering high interference immunity and a wide measurement range of ±2000μT with a resolution of 0.1μT. Thanks to its high sampling rate (up to 400Hz) and resistance to magnetic shocks, it is ideal for AR/VR systems, AGV navigation and drone control. DFRobot SEN0622
Description
Fermion: BMM350 is an advanced 3-axis geomagnetic sensor designed for precise magnetic field measurement across three axes, also serving as a digital compass. It uses Bosch's patented FlipCore technology, ensuring accurate spatial orientation without the need for calibration. The sensor maintains compatibility with the previous BMM150 series while offering lower power consumption and higher measurement quality.
Thanks to the breakthrough TMR (Tunnel Magnetoresistance) technology and Field Shock Recovery function, the device effectively eliminates the effects of external magnetic field disturbances, ensuring consistently high data precision. It supports a high sampling rate of up to 400Hz, making it ideal for real-time applications such as AR/VR systems, geomagnetic navigation for AGVs, and drone control. With a wide measurement range of ±2000μT and a high resolution of 0.1μT, this sensor excels in the most demanding technological systems.
Features
- Zero-field offset: ±25μT
- Communication protocol: I2C
- Startup time: 2.5ms
- Measurement range: ±2000μT on each axis (XYZ)
- Measurement resolution: 0.1μT
- Sampling frequency: up to 400Hz
- Supply voltage: 3.3 to 5V DC
- Operating current: 200μA (normal mode @100Hz)
- Operating temperature range: -40 to +85℃
- Dimensions: 25 x 16 mm
Kit contains
- Fermion: BMM350 Triple Axis Magnetometer
- XH2.54-10pin header strip
1196950
Data sheet
- Interface
- I2C
- Type of sensor
- BMM350
- Power supply voltage
- 3,3 - 5 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
