A 6-in-1 weather station designed to monitor temperature, humidity, pressure, wind speed and direction, and light intensity in harsh outdoor conditions. A rugged, industrial-grade design with an IP66 rating and a thermostatically controlled heating system ensure reliability even in extreme temperatures. Ultrasonic wind sensors with no moving parts and radiation shields ensure accurate and durable measurements. The device offers flexible connectivity to monitoring and automation systems via RS485, SDI-12, and ASCII interfaces. Seeed Studio 101991232

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

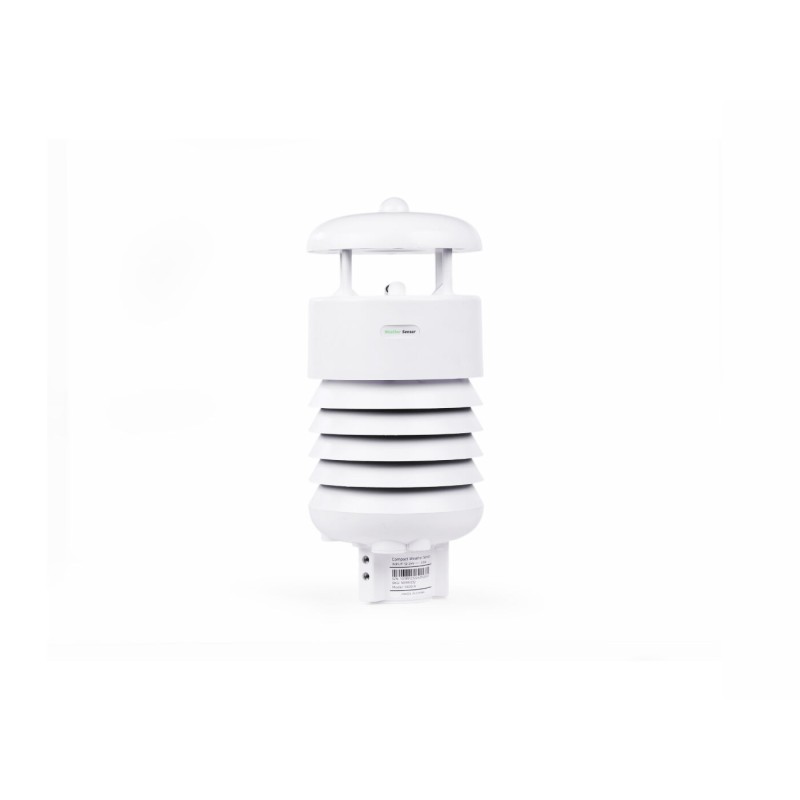

SenseCAP S600-A is a compact 6-in-1 weather station designed for monitoring key environmental parameters in harsh outdoor conditions, such as agriculture, smart cities, and industrial environments. The device measures air temperature, relative humidity, atmospheric pressure, wind speed and direction (ultrasonic sensors), and light intensity. The S600-A features a robust industrial design with an operating temperature range from -40°C to +85°C and a high protection rating of IP66, ensuring reliability in extreme weather conditions.


The station includes a thermostatically controlled heating system, maintaining proper operation even at very low temperatures. Built-in radiation shields minimize the impact of external factors on measurements, and ultrasonic wind sensors with no moving parts increase durability and measurement accuracy. The S600-A offers universal output interfaces RS485 (Modbus-RTU) and SDI-12, facilitating integration with monitoring and automation systems.

Wired connections in SenseCAP ONE devices use M12 connectors with an 8-wire specification. Each of the eight differently colored wires is used for both powering the device and data transmission. The lower wired output is 3 meters long and includes six wires colored white, brown, green, yellow, gray, pink, blue, and red. The SenseCAP ONE series enables integration with various data acquisition devices, PLC controllers, and host computers via RS485, ASCII, and SDI-12 protocols, providing flexible and reliable connectivity in diverse monitoring and automation systems.


Features

  • Measured parameters: air temperature, relative humidity, atmospheric pressure, wind speed and direction, light intensity
  • Wind measurement principle: ultrasonic, no moving parts
  • Atmospheric pressure range: 300–1250 hPa
  • Wind speed range: standard 0–60 m/s, extended 0–75 m/s, withstands up to 80 m/s
  • Temperature measurement accuracy: ±0.1°C, resolution 0.01°C
  • Humidity accuracy: ±1.5% RH, resolution 0.01% RH
  • Atmospheric pressure accuracy: ±50 Pa, resolution 10 Pa
  • Wind speed accuracy: ±0.3 m/s (≤10 m/s), ±3% (10–50 m/s), ±5% (>50 m/s), resolution 0.1 m/s
  • Wind direction accuracy: ±3°, resolution 0.1°
  • Light intensity range: 0–200,000 Lux, accuracy ±5 Lux, resolution 5 Lux
  • Construction: industrial, IP66, ultrasonic wind sensors, radiation shields
  • Thermostatically controlled heating system
  • Communication interfaces: RS485 (Modbus-RTU), SDI-12, ASCII
  • Power supply: 12–24 V DC (24 V for heating)
  • Power consumption: 0.4 W (21 W heating)
  • Mounting cable length: 3 m
  • Operating temperature range: -40°C to +85°C
  • Operating humidity: 0–100% RH (non-condensing)
  • Dimensions: 140 × 140 × 320 mm
  • Weight: 1470 g
  • Certification: RoHS

Kit contains

  • SenseCAP S600-A 6-in-1 Compact Weather Station
  • M12 8-pin communication cable
  • USB Type-C cable
  • 6 × mounting screws
  • Flat washer
