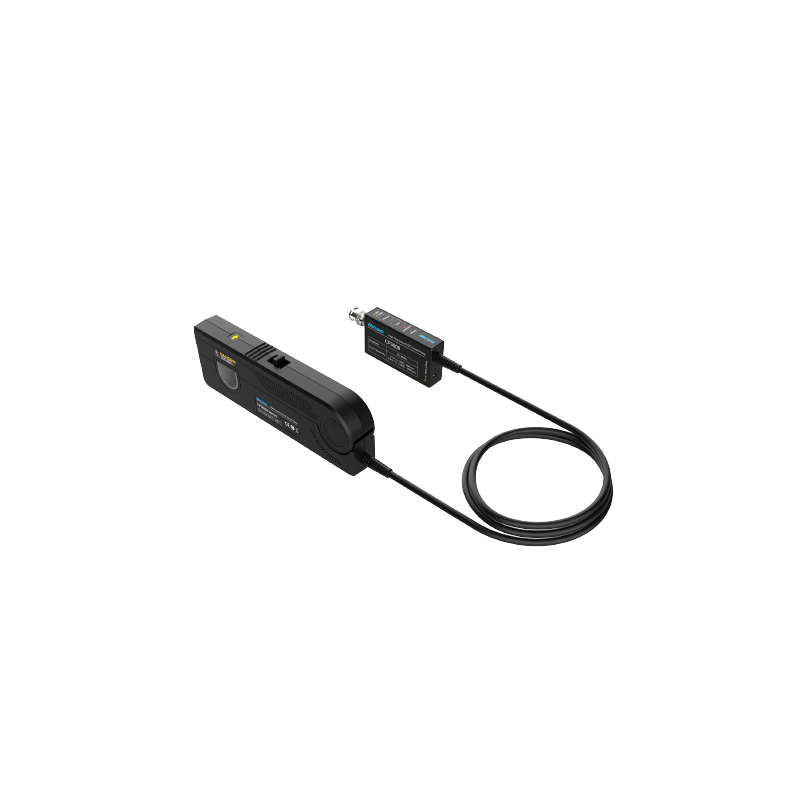

Micsig CP1510 - 10MHz high-frequency AC/DC current probe
ID: 1203500
zł6,614.94
Tax included
zł5,378.00 tax excl.
This current probe is designed for measuring DC and AC current in power electronics systems and switching power supplies. It offers a 10 MHz DC bandwidth, a rise time of ≤ 46 ns, and two measurement ranges: 30 A and 150 A RMS, with a maximum peak current of up to 300 A. The device provides high measurement accuracy of ±1% and a resolution of up to 10 mA in the lower range. The BNC connector ensures compatibility with many oscilloscopes, and the 20 mm jaws enable current measurements in larger wires. Micsig CP1510
Description
The Micsig CP1510 current probe enables precise measurement of both AC and DC current in power electronics systems and switching power supply circuits. The measurement range reaches up to 150 A RMS and 300 A peak, with a bandwidth of DC to 10 MHz and a rise time of ≤ 46 ns. The dual-range design (30 A / 150 A) with a resolution of up to 10 mA allows accurate capture of signals in both low and high current ranges.
The probe features a typical accuracy of ±1% (±10 mA for the 30 A range and ±100 mA for the 150 A range), < 4 ns delay, and a low noise level of < 3.5 mApp. The probe output voltage is 1 V/10 A or 1 V/100 A, depending on the selected range and multiplier (x1, x10, x100). The probe signals an overload condition when the threshold current is exceeded (≥ 30 Apk or ≥ 150 Apk) and allows operation with a working and floating voltage up to CAT I 300 V. The probe is powered by an external 12 V supply.
The device provides convenient and reliable operation in everyday measurement applications. The Auto Degaussing and automatic zeroing function allows quick preparation of the probe for operation, ensuring high measurement accuracy while saving time. The integrated overcurrent alarm informs the user when the permissible measurement range is exceeded, making it easier to safely switch ranges and protecting the probe from damage. This solution improves operational safety and helps maintain measurement stability even in demanding conditions. Additionally, the standard BNC interface ensures wide compatibility with most oscilloscopes available on the market.
Features
- Bandwidth: DC to 10 MHz
- Rise time: ≤ 46 ns
- Measurement range: 30 Arms (low range), 150 Arms (high range)
- Maximum input current: 300 Apk, 150 Arms
- Measurement accuracy: ±1% ±10 mA (30 A), ±1% ±100 mA (150 A)
- Resolution: 10 mA (30 A), 100 mA (150 A)
- Noise: < 1.5 mArms (30 A), < 12 mArms (150 A)
- Propagation delay: < 4 ns (30 A), < 40 ns (150 A)
- Output sensitivity: 1 V/10 A (30 A, x1), 1 V/100 A (150 A, x100)
- Overload alarm threshold: ≥ 30 Apk (30 A), ≥ 150 Apk (150 A)
- Power supply voltage: 12 V
- Maximum working voltage: CAT I 300 V
- Maximum floating voltage: CAT I 300 V
- Jaw diameter: 20 mm
- Connector: BNC
Kit contains
- Micsig CP1510 current probe
- Power cable
1203500
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
