Rogowski current probe designed for measuring very high-amplitude alternating currents up to 12,000 A, offering a wide bandwidth from 2 Hz to 10 MHz and a sensitivity of 0.5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP12000L-700

4 weeks
On request
Kamami is the official distributor of Micsig oscilloscopes and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

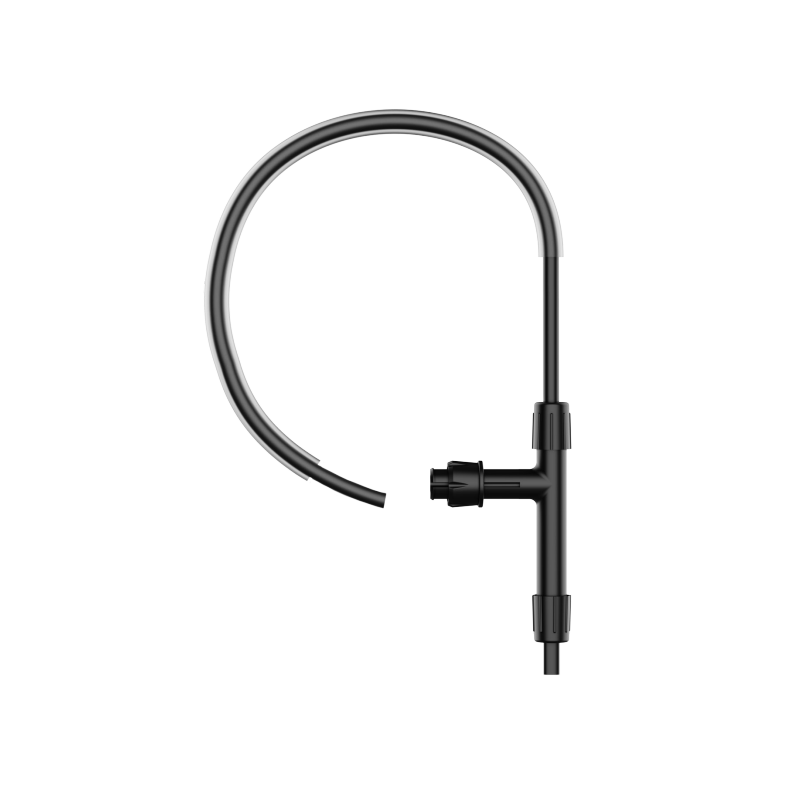

Micsig RCP12000L-700 is a Rogowski current probe designed for precise measurement of high-amplitude AC currents, reaching up to 12,000 A. Thanks to the Rogowski coil technology, the probe features near-zero insertion impedance, allowing measurements without affecting the tested circuit. This is especially important in applications requiring high accuracy and minimal signal disturbance. The device offers a wide bandwidth of up to 10 MHz, enabling analysis of fast-changing signals and high-frequency waveforms. As a result, it is ideal for measuring currents in power transistors such as MOSFET, IGBT, SiC, and GaN, where capturing dynamic changes and high-order harmonics is crucial.

The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometry. The compact cross-section of the coil enables operation even in very tight spaces, such as between semiconductor leads. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage insulation up to 10 kV, it can be safely used in high-voltage applications.

Features

  • Probe type: Rogowski (AC current measurement)
  • Maximum current: 12,000 A (peak)
  • Bandwidth: 2 Hz to 10 MHz
  • Sensitivity: 0.5 mV/A (2000X)
  • Slew rate: 70 kA/μs
  • Accuracy: 2%
  • Voltage insulation: up to 10 kV (peak, for the coil)
  • Output impedance: 1 MΩ
  • Near-zero insertion impedance
  • Interface: standard BNC connector
  • Construction: flexible Rogowski coil
  • Application: measurement of high-frequency, pulsed, and transient currents
  • Use cases: motor drives, UPS/SMPS systems, MOSFET/IGBT (SiC, GaN) testing, harmonic analysis, three-phase systems
  • Cable length: 1.5 m
  • Power supply: DC 12 V
