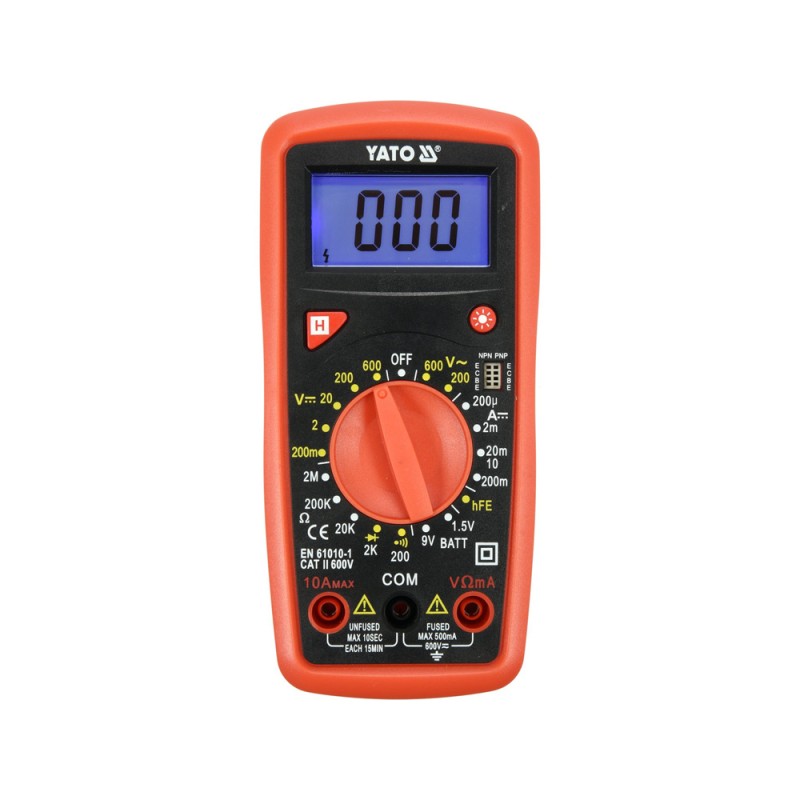

Multifunctional digital multimeter YATO YT-73081
search
  • Multifunctional digital multimeter YATO YT-73081
ID: 1198362
5902186302723
zł26.38
Tax included

zł21.45 tax excl.

Digital multimeter YT-73081 enables comprehensive measurement of electrical parameters, including voltage, current, resistance, as well as testing of diodes, transistors, and batteries. Manual range selection, Data Hold function, sound signal, backlit display, and durable housing enhance user comfort in service, workshop, and field work. It is suitable for diagnostics of installations, electronic devices, and maintenance tasks.

24h
Available
Available quantity: 4

Description

Handheld digital multimeter for performing basic and advanced electrical measurements including AC voltage (0–600 V), DC voltage (0–600 V), DC current (0–10 A), resistance (0–2 MΩ), diode testing, continuity testing, and PNP/NPN transistor testing (hFe measurement). It also allows testing of 1.5 V and 9 V batteries under load. Features include Data Hold function, low battery indicator, backlit LCD display, and audible signal in continuity test. The meter is built with an ABS housing and a protective rubber holster for increased resistance to mechanical damage. Sampling frequency is 2–3 times per second. Powered by two 1.5 V AAA batteries.

Specifications

  • AC voltage measurement range: 0–600 V
  • DC voltage measurement range: 0–600 V
  • DC current measurement range: 0–10 A
  • Resistance measurement range: 0–2 MΩ
  • Transistor test: PNP, NPN
  • Continuity test: 0–100 Ω
  • Diode test: yes
  • Conductance test: yes
  • Battery test: 1.5 V, 9 V
  • Data Hold function: yes
  • LED backlight: yes
  • Display: LCD, max. reading 1999
  • Sampling frequency: 2–3 times/s
  • Sound signal: yes (for <30 Ω)
  • Low battery indicator: yes
  • Fuse: 600 V / 0.5 A (not for 10 A range)
  • Power supply: 2x 1.5 V (AAA)
  • Operating temperature range: 0–40°C
  • Storage temperature: -10–50°C
  • Dimensions: 155 x 75 x 30 mm
  • Weight: 0.13 kg
  • Material: ABS + protective rubber holster

Included

  • Measuring probes
  • Digital multimeter YT-73081
1198362

Data sheet

Zakres pomiarowy napięcia DC
400 mV/4 V/40 V/400 V/600 V
Zakres pomiarowy napięcia AC
4 V/40 V/400 V/600 V
Zakres pomiarowy natężenia DC
200μA/2mA/20mA/200mA/10A
Zakres pomiarowy natężenia AC
Brak
Zakres pomiarowy rezystancji
200Ω/2000Ω/20kΩ/200kΩ/2MΩ
Zakres pomiarowy pojemności
Brak
Zakres pomiarowy częstotliwości
Brak
Pomiar temperatury
Nie
Regulacja zakresu pomiarowego
Manualna
True RMS
Nie
Funkcja Hold
Tak
Tester ciągłości obwodu
Akustyczyny
Tester diod
Tak
Pomiar hFE tranzystorów
Tak
Buzzer
Nie
Wskaźnik rozładowanej baterii
Tak
Automatyczny wyłącznik
Nie
Podświetlenie wyświetlacza
Tak
Battery type
LR06/AAA
Length
Inny
Width
Inna
Thickness
Inna
Weight
130 g

Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl

Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
