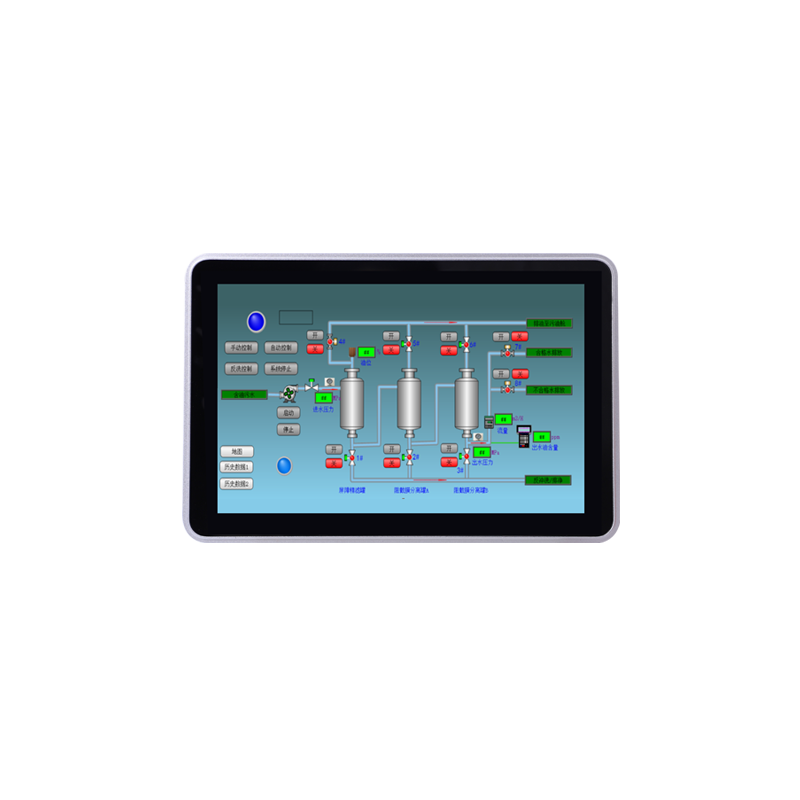

USR-SH800 - Integrated IoT HMI panel with 10.1" touchscreen, Wi-Fi, RS232/RS485 and Linux Ubuntu system
ID: 1200638
zł1,230.00
Tax included
zł1,000.00 tax excl.
USR-SH800-EW is an advanced operator panel with a touchscreen, edge computing support and Wi-Fi connectivity, designed for automation, data processing and control in IoT applications. It combines the functionality of an HMI, PLC controller and industrial gateway, enabling rapid integration and deployment of intelligent systems in industrial environments.
Description
USR-SH800-EW is an industrial-grade HMI operator panel with built-in edge computing and control functions, designed on the basis of a 4-core ARM RK3568 processor (64-bit, 2.0 GHz) with an NPU unit (1.0 TOPS) for AI task processing. The device runs on the Linux Ubuntu 20.04 operating system and offers an intuitive graphical interface and Node-Red environment for rapid application development. The built-in WukongEdge software enables data collection, processing and reporting in real time, supporting up to 2000 measurement points with scalability. The panel is equipped with a 10.1" capacitive touchscreen with a resolution of 800×1280, two Ethernet interfaces, two RS232 ports, two RS485 ports, 2.4 GHz Wi-Fi, USB 3.0 ports and HDMI. It is suitable for systems in automation, monitoring, logistics and energy management.
Properties
- Rockchip RK3568 processor, ARM 64-bit, 4 cores, 2.0 GHz
- Built-in NPU 1.0 TOPS for AI model processing
- Operating system: Linux Ubuntu 20.04
- RAM: 4 GB DDR4
- Internal memory: 32 GB eMMC
- Touchscreen: 10.1" capacitive, 800×1280
- Supported protocols: Modbus RTU, OPC UA, MQTT, HTTP, Bacnet, IEC104, IEC61850
- PLC support compliant with IEC61131-3
- Interfaces:
- 2×RS232, 2×RS485
- 2×Ethernet 10/100 Mbps
- 1×HDMI OUT (4K@60Hz), 1×Audio
- 1×USB 3.0 HOST, 1×USB 3.0 OTG (Type-C)
- Wireless communication: Wi-Fi 2.4 GHz (IEEE 802.11b/g/n/ax)
- RTC with battery backup and scheduling function
- LED indicators: power and operation status, user indicators
- Power supply: DC 12 V (2 A–5 A), automatic start
- Dimensions: 160 × 85 × 28 mm
- Operating temperature range: 0°C to +50°C
- Mounting: wall, DIN-rail or panel mounting
- Multimedia interface support: 4K H.265/H.264, HDR, ISP
Included in the set
- USR-SH800-EW HMI panel
- Wi-Fi antenna
- DC power adapter
- Mounting accessories
1200638
Data sheet
- Montage
- Inny
- Module type
- Panel HMI
- Input type
- none
- Number of outputs
- none
- Output type
- none
- Number of inputs
- none
- Dedicated PLC
- S7-1200/ S7-1500/ S7-200/ LOGO!
- Power supply voltage
- 12V
