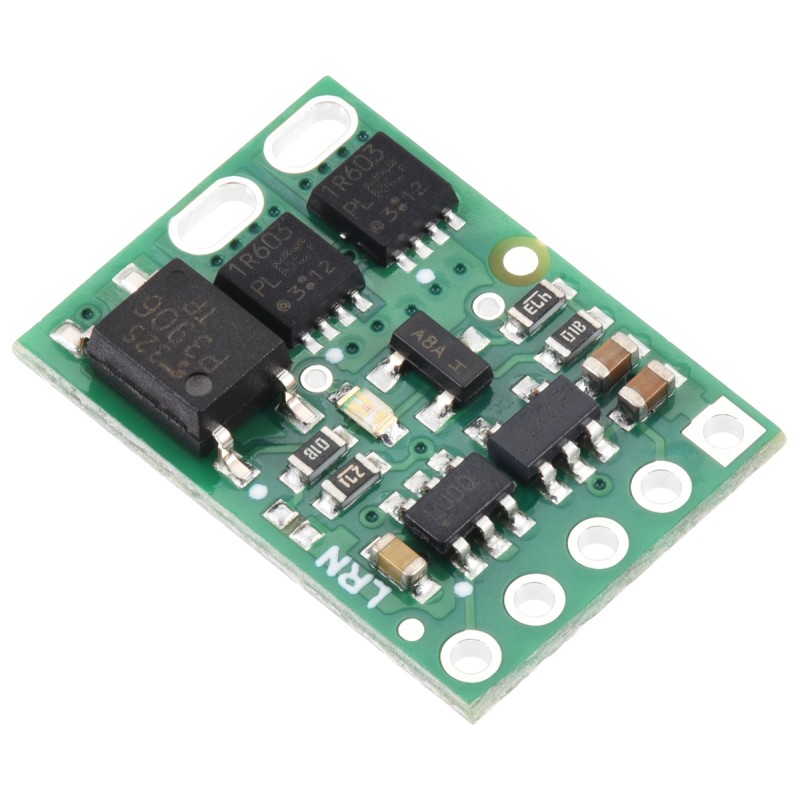

Pololu 5425 offers silent, reliable operation when switching currents up to 10 A and voltages up to 30 V, providing galvanic isolation and full configurability of RC control parameters. The version without soldered connectors allows easy adaptation to individual mounting needs in RC and automation projects.

6 weeks
Awaiting delivery
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The Pololu 5425 module, designed for load control in RC systems, allows switching currents up to 10 A at voltages up to 30 V (maximum). The SPST solid-state relay circuit with galvanic isolation between input and output uses a pair of back-to-back MOSFETs, ensuring symmetrical and bidirectional operation. The RC interface allows configuration of the activation threshold and operating direction, while the built-in safe-start function protects against accidental switching.

The module supports RC pulse width with ±64 µs hysteresis, offering status indication (OUT) and RC signal validity (GOOD). Version 5425, supplied without soldered connectors, allows flexible project integration.

Properties

  • Control circuit supply voltage (VRC): 2.7–16 V
  • Maximum current consumption of the system: 15 mA
  • Load voltage range: up to 30 V (max.)
  • Maximum load current: 10 A
  • On-state resistance: 10 mΩ (typical)
  • Galvanic isolation of control from load (optical isolation)
  • SPST solid-state relay with back-to-back MOSFETs
  • Learning mode – change of activation threshold and operating direction
  • Digital outputs OUT (relay status) and GOOD (RC signal validity)
  • Connectors for self-assembly (no soldered connectors)
  • Dimensions: 0.7″ × 0.5″ × 0.5″ (~17.8 mm × 12.7 mm × 12.7 mm)
  • Weight: 1.6 g
