Crowtail-MP3 Player 2.0 – MP3/WAV/WMA audio-player module, UART, microSD, 3.5 mm jack, 5 V
search
  • Crowtail-MP3 Player 2.0 – MP3/WAV/WMA audio-player module, UART, microSD, 3.5 mm jack, 5 V
  • Crowtail-MP3 Player 2.0 – MP3/WAV/WMA audio-player module, UART, microSD, 3.5 mm jack, 5 V
  • Crowtail-MP3 Player 2.0 – MP3/WAV/WMA audio-player module, UART, microSD, 3.5 mm jack, 5 V
ID: 1201668
zł24.90
Tax included

zł20.24 tax excl.

Crowtail-MP3 Player 2.0 is a universal audio module with MP3/WAV/WMA playback, microSD card support and a UART interface. Intended for projects requiring the playback of voice messages, sound effects or music.

Delivery date unknown
Out-of-Stock

Description

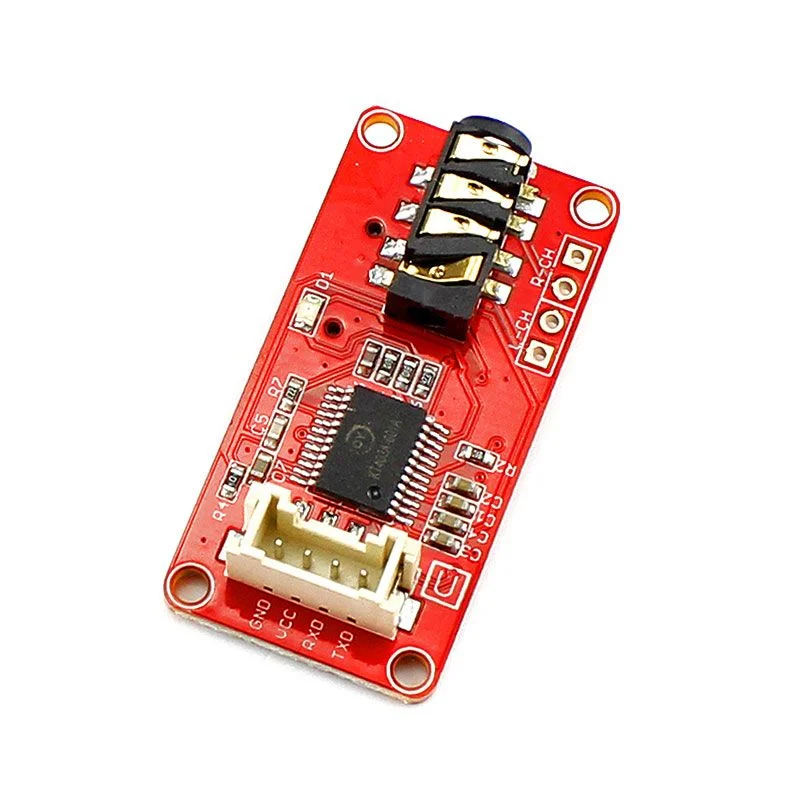

Crowtail-MP3 Player 2.0 is a compact audio-player module with a UART interface and Crowtail connector, intended for integration in electronic projects requiring sound generation. It supports MP3, WAV and WMA audio files stored on microSD cards up to 32 GB with FAT16 or FAT32 file systems. The board includes a 3.5 mm jack connector and a microSD slot. The module is based on the KT403A chip, offering a 24-bit DAC with 90 dB dynamic range and 85 dB signal-to-noise ratio. Playback (sequential or random) can be controlled using AT commands sent via UART.

Properties

  • Crowtail connector – UART
  • Supply voltage: 5 V DC
  • Current consumption (idle): <15 mA
  • Typical current consumption: <40 mA
  • Chip: KT403A
  • LDO output voltage: 3.3 V
  • Maximum chip output current: 100 mA
  • Supported audio formats: MP3, WAV, WMA
  • Supported file systems: FAT16, FAT32
  • Supported microSD card: up to 32 GB
  • Sampling rates: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz
  • Audio output: 3.5 mm jack
  • DAC: 24-bit, 90 dB dynamic range, 85 dB SNR
  • Built-in 10-level EQ
  • Dimensions: 40.0 × 20.0 × 11.8 mm

Included

  • Crowtail-MP3 Player x1
  • Crowtail cable x1
