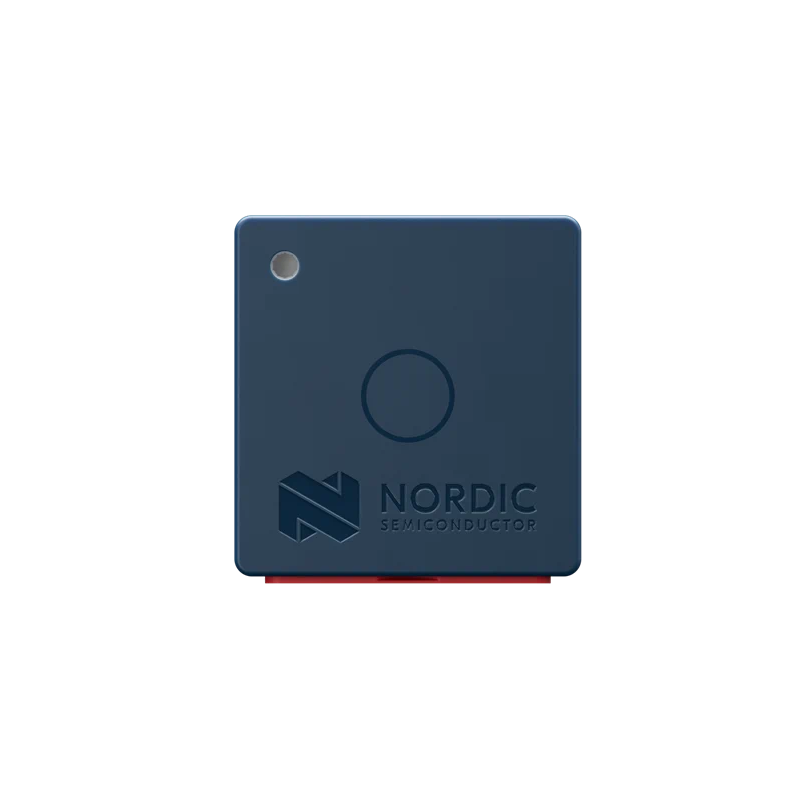

A compact and powerful IoT prototyping platform based on the dual-core nRF5340 (Arm Cortex-M33) chip, which allows you to run machine learning (ML) models directly on the device. With the nRF Edge Impulse app, users can wirelessly transmit sensor data, train ML models in the cloud, and deploy them back. Support for Bluetooth LE, mesh, Thread, Zigbee, and Matter protocols makes the Thingy:53 ideal for smart home systems. The device is equipped with numerous sensors (temperature, humidity, air quality, light, microphone, accelerometer), a USB-C rechargeable Li-Po battery, and a Grove/Qwiic/Stemma-compatible JST connector, providing great flexibility for prototyping and demonstrations. Nordic Thingy:53

24h
Available
Available quantity: 1

Description

Nordic Thingy:53 is a multifunctional prototyping platform for IoT devices, enabling rapid development and demonstration without the need for custom hardware design. It is based on the nRF5340 SoC, a dual-core system-on-chip with Arm Cortex-M33 cores, providing high processing power and ample memory to run machine learning (ML) models directly on the device.

With the nRF Edge Impulse app, users can wirelessly stream sensor data to the cloud via Bluetooth LE, train ML models, and deploy them back onto the Thingy:53. This app also enables real-time monitoring of inference results. Thanks to support for Bluetooth LE, Bluetooth mesh, Thread, Zigbee, and 2.4 GHz, the Nordic Thingy:53 is also ideal for smart home systems, especially those compatible with the new Matter standard.

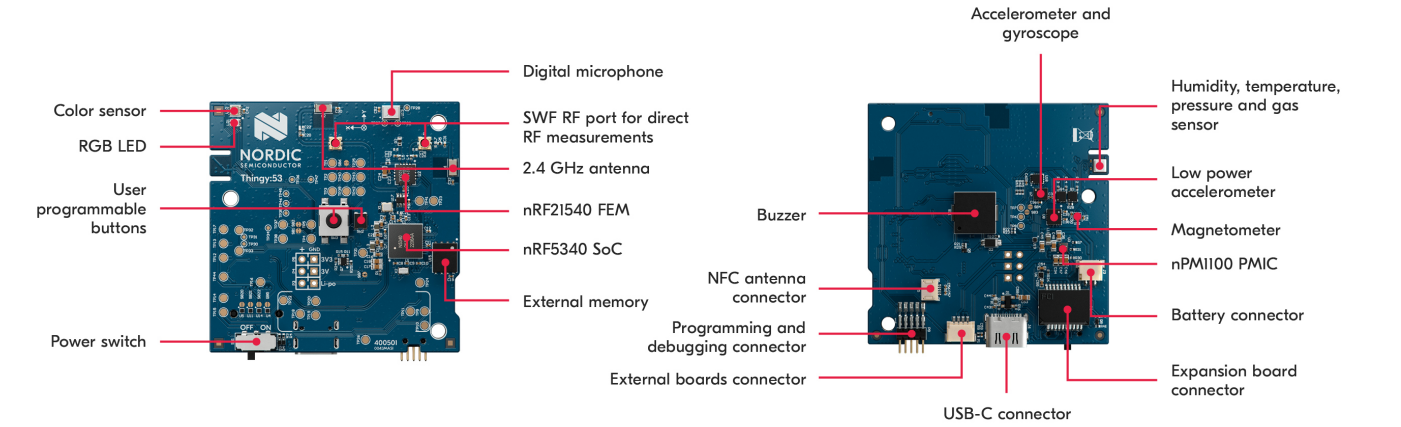

The platform includes a wide range of integrated sensors, such as temperature, humidity, air quality, pressure, light, and color sensors, as well as a microphone and accelerometer. It is powered by a rechargeable Li-Po battery and supports USB-C charging, ensuring portability and ease of use. Additionally, it features a JST connector compatible with Stemma/Qwiic/Grove, allowing for external accessory integration.

The device comes with pre-installed software, ready for use with the nRF Edge Impulse app and the nRF Programmer app, which supports over-the-air firmware updates.

Features

  • SoC model: nRF5340 (dual-core Arm Cortex-M33)
  • Application core: 128 MHz Cortex-M33, 1 MB Flash, 512 KB RAM
  • Network core: 64 MHz Cortex-M33, 256 KB Flash, 64 KB RAM
  • Power management: nPM1100 PMIC
  • RF module: nRF21540 FEM
  • Supported wireless protocols: Bluetooth LE, Bluetooth mesh, Thread, Zigbee, NFC, 2.4 GHz proprietary
  • External connectivity: 4-pin JST (compatible with Qwiic/Stemma/Grove)
  • Power supply: Li-Po battery, USB-C charging
  • LED: programmable RGB LEDs
  • Buttons: accessible through enclosure, programmable
  • Motion sensor (IMU): 6-axis with accelerometer
  • Low-power accelerometer: with Wake-on-Motion feature
  • Environmental sensors: temperature, humidity, air quality, atmospheric pressure
  • Light and color sensor: measures ambient lighting conditions
  • Microphone: PDM, with Wake-on-Sound feature
  • Buzzer: piezoelectric, 4 kHz
1199342

Data sheet

Microcontroller
nRF5340
Flash memory
1 MB
Number of I/O
None
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
Inny
Width
Inna
USB connector type
USB type C
