ID: 1185000
5906623407750
zł64.89
Tax included

zł52.76 tax excl.

USB module supporting Bluetooth 5.3, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz protocols. It is an ideal target device for use with the nRF Connect for Desktop application. Nordic Semiconductor nRF52840 Dongle

24h
Available
Available quantity: 18


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

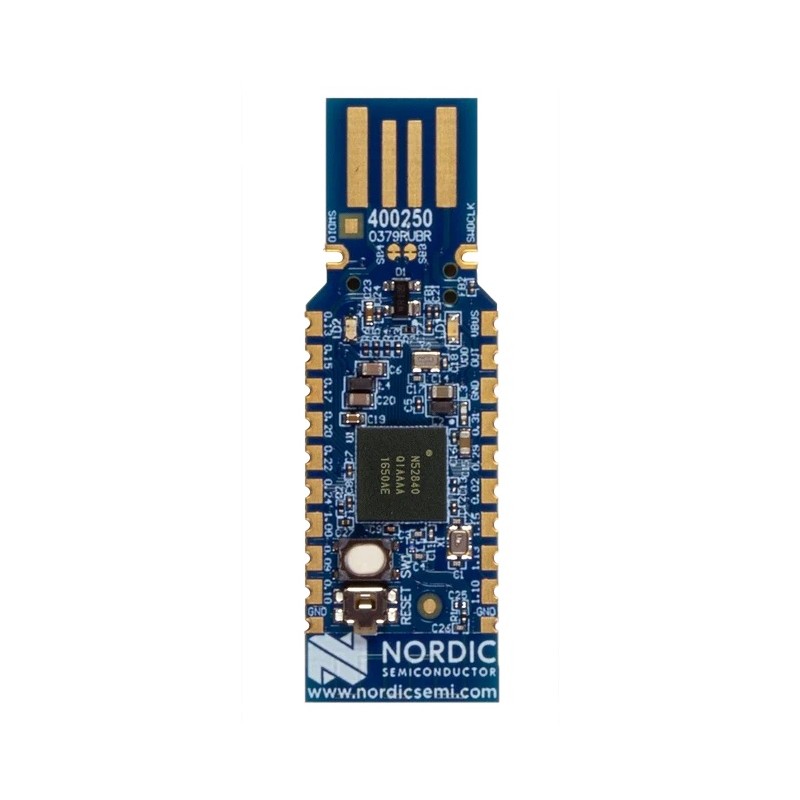

The nRF52840 Dongle is a small, affordable USB module that supports Bluetooth 5.3, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz protocols. It is an ideal target device for use with the nRF Connect for Desktop application. It supports all short-range wireless standards used with Nordic devices. The module is designed for use as a wireless hardware device. For other applications, please note that it does not support debugging, only device programming and USB communication.

The dongle is supported by the nRF Connect for Desktop application. It can work with default software, e.g. as a Bluetooth Low Energy Sniffer, or with custom user software. It has a user-programmable RGB LED, a green LED, a programmable button, as well as 15 GPIOs available on solder points along the edge. Example applications are available in the nRF5 SDK.

Features

  • Multi-protocol radio with Bluetooth 5.2 support
    • 2 Mbps
    • Long range
    • Extended Advertising modes
    • Channel selection algorithm #2 (CSA#2)
  • IEEE 802.15.4 radio support
    • Thread
    • Zigbee
  • Arm® CortexTM-M4 with FPU support
  • DSP instruction set
  • Arm CryptoCell CC310 cryptographic accelerator
  • USB interface directly to the nRF52840 SoC
  • Integrated 2.4 GHz PCB antenna
  • 1 user-programmable button
  • 1 user-programmable RGB LED
  • 1 user-programmable LED
  • Power supply 1.7-5.5 V from USB or external
1185000

Data sheet

Microcontroller
nRF52840
Flash memory
1 MB
Number of I/O
None
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
No
Length
46mm
Width
15,2 mm
USB connector type
microUSB type B
