ID: 1197113
5902186303003
zł534.82
Tax included

zł434.81 tax excl.

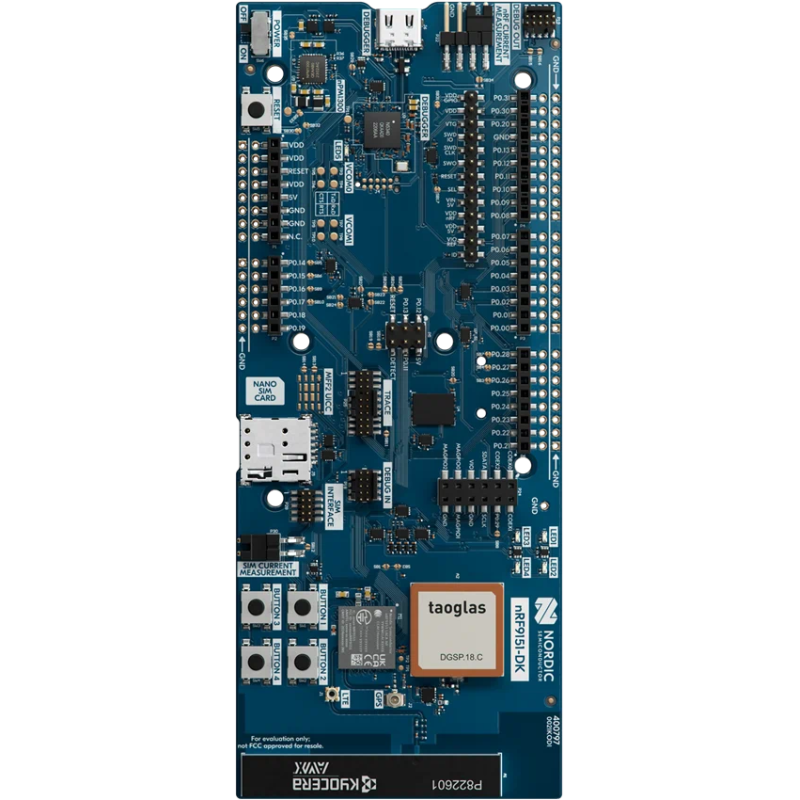

Advanced development kit for building IoT applications using LTE-M, NB-IoT, GNSS and DECT NR+, based on the nRF9151 SiP module with global LTE band coverage and built-in antennas. The board offers a rich set of interfaces, compatibility with the Arduino Uno form factor, a built-in SEGGER J-Link debugger and support for various SIM card formats, including Software SIM. The kit also includes a Serial LTE Modem application and full Nordic SDK support, which allows for a quick start and efficient development of IoT projects. Nordic Semiconductor nRF9151-DK

24h
Available
Available quantity: 1

Description

nRF9151 DK is a high-performance development kit designed for building IoT applications using LTE-M, NB-IoT, GNSS, and DECT NR+ technologies. Based on the nRF9151 SiP module, the kit includes a dedicated LTE-M/NB-IoT/DECT NR+ antenna and an integrated GNSS antenna, providing global LTE band coverage (B1-B5, B8, B12, B13, B17-B20, B25, B26, B28, B65, B66, and B85). The board also features SWF connectors for RF signal measurements or connecting external antennas. All interfaces and GPIOs are exposed via Arduino Uno Rev3-compatible headers, enabling seamless integration with external shields such as the nRF7002 EK. The kit includes 4 programmable buttons and 4 LEDs to test various input/output scenarios. Thanks to the integrated SEGGER J-Link debugger, programming and debugging both the board and external devices is easy. The kit supports nano/4FF SIM and MFF2 (eSIM) formats, as well as Software SIM, which further reduces power consumption. A SIM card with a free data package is included. The board comes preloaded with the Serial LTE Modem application and has full support within the Nordic SDK and developer tool ecosystem.

Features

  • Supported technologies: LTE-M, NB-IoT, GNSS, DECT NR+
  • nRF9151 SiP with 64 MHz Arm Cortex-M33 and integrated multimode LTE-M/NB-IoT modem with DECT NR+ and GNSS support
  • LTE band support: 700–2200 MHz
  • NR+ band support: 1.9 GHz
  • Transmit power: Power Class 5 – 20 dBm, Power Class 3 – 23 dBm
  • Globally certified
  • Dedicated programmable application processor and memory
  • Memory: 1 MB flash + 256 KB RAM
  • Security: Arm TrustZone and Arm CryptoCell 310
  • Global LTE-M/NB-IoT/DECT NR+ antenna (bands: B1–B5, B8, B12, B13, B17–B20, B25, B26, B28, B65, B66, B85)
  • Integrated GNSS antenna
  • SWF RF connectors for measurements or external antennas
  • Arduino Uno Rev3-compatible headers
  • 4 programmable buttons
  • 4 programmable LEDs
  • SEGGER J-Link OB debugger with external device debugging support
  • USB port for programming, debugging, and power supply
  • VCOM UART port
  • nano/4FF SIM slot and MFF2 eSIM footprint
  • Software SIM support
  • Preloaded Serial LTE Modem application
  • Support for Nordic SDK, nRF Connect, documentation, and tutorials

Kit contains

  • nRF9151 DK
  • SIM card with free data package
1197113

Data sheet

Microcontroller
nRF9151
Flash memory
1 MB
Number of I/O
31
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
Other
Width
Other
USB connector type
USB type C
