Nordic Thingy:91 (NRF6943) - LTE-M / NB-IoT Development Platform with GPS and Bluetooth LE
ID: 1203073
5902186339859
zł676.50
Tax included
zł550.00 tax excl.
Development platform designed for rapid prototyping of Internet of Things devices using LTE-M and NB-IoT cellular connectivity. Based on the nRF9160 and nRF52840 devices, it integrates GPS, Bluetooth LE, NFC, and a comprehensive set of environmental and motion sensors. Nordic Thingy:91 (NRF6943)
Description

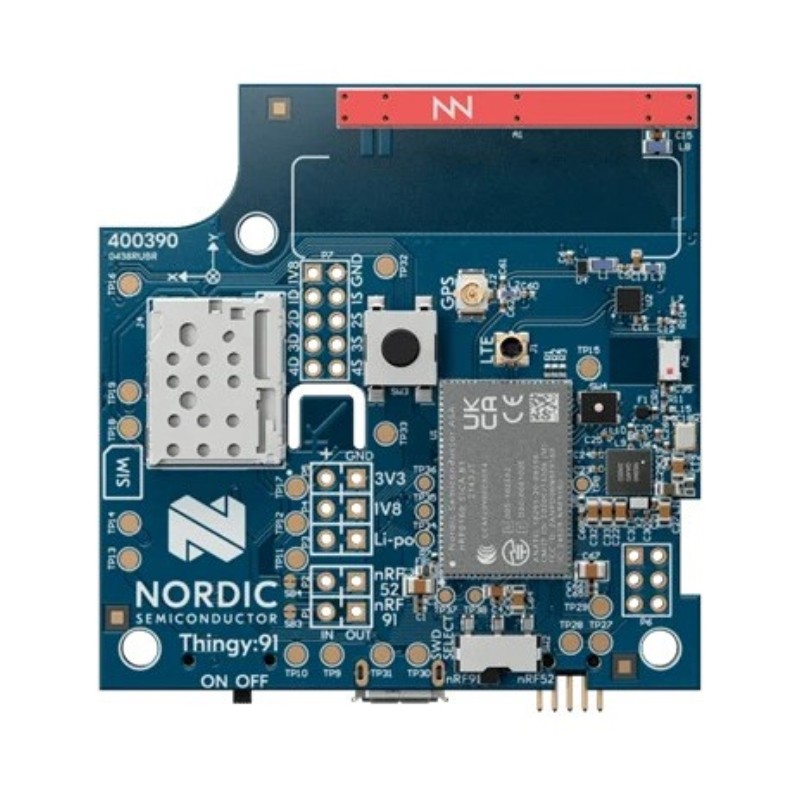

The Nordic Thingy:91 NRF6943 development platform is built around the nRF9160 SiP featuring an Arm Cortex-M33 core, an integrated LTE-M and NB-IoT modem, and a GNSS receiver. An additional nRF52840 device with an Arm Cortex-M4F core provides Bluetooth Low Energy and NFC connectivity. This combination enables the development of IoT devices that utilize both long-range cellular communication and short-range wireless connectivity. The platform is well suited for GPS trackers, asset monitoring systems, telematics devices, and Smart City applications.
The board integrates multiple sensors for measuring temperature, humidity, air quality, atmospheric pressure, ambient light intensity, and color. Additional features include a low-power accelerometer, a high-G accelerometer for shock and impact detection, a programmable user button, RGB LEDs, and a 1440 mAh Li-Po battery. Support for the nRF Connect SDK enables rapid development of applications utilizing the communication, positioning, and sensing capabilities available on the platform.
Features
- Nordic Thingy:91 development platform
- Part number: NRF6943
- nRF9160 SiP
- Arm Cortex-M33 core
- Integrated LTE-M modem
- Integrated NB-IoT modem
- GNSS / GPS receiver
- nRF52840 device
- Arm Cortex-M4F core
- Bluetooth Low Energy connectivity
- NFC support
- Temperature sensor
- Humidity sensor
- Air quality sensor
- Atmospheric pressure sensor
- Ambient light and color sensor
- Low-power accelerometer
- High-G accelerometer
- Programmable user button
- Programmable RGB LEDs
- 1440 mAh Li-Po battery
- iBasis eSIM card with data plan
- nRF Connect SDK support
- Dimensions: 58.8 x 58.5 x 19.7 mm
- Weight: 61 g
Kit includes
- Nordic Thingy:91 NRF6943 development platform
- iBasis eSIM card with 10 MB data plan
1203073
Data sheet
- Microcontroller
- nRF9160
- Flash memory
- 1 MB
- Number of I/O
- Other
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- Yes
- MicroSD slot
- No
- Length
- 58,8 mm
- Width
- 58,5 mm
- USB connector type
- microUSB type B
